30 | minnkotamotors.com
©2019 Johnson Outdoors Marine Electronics, Inc.

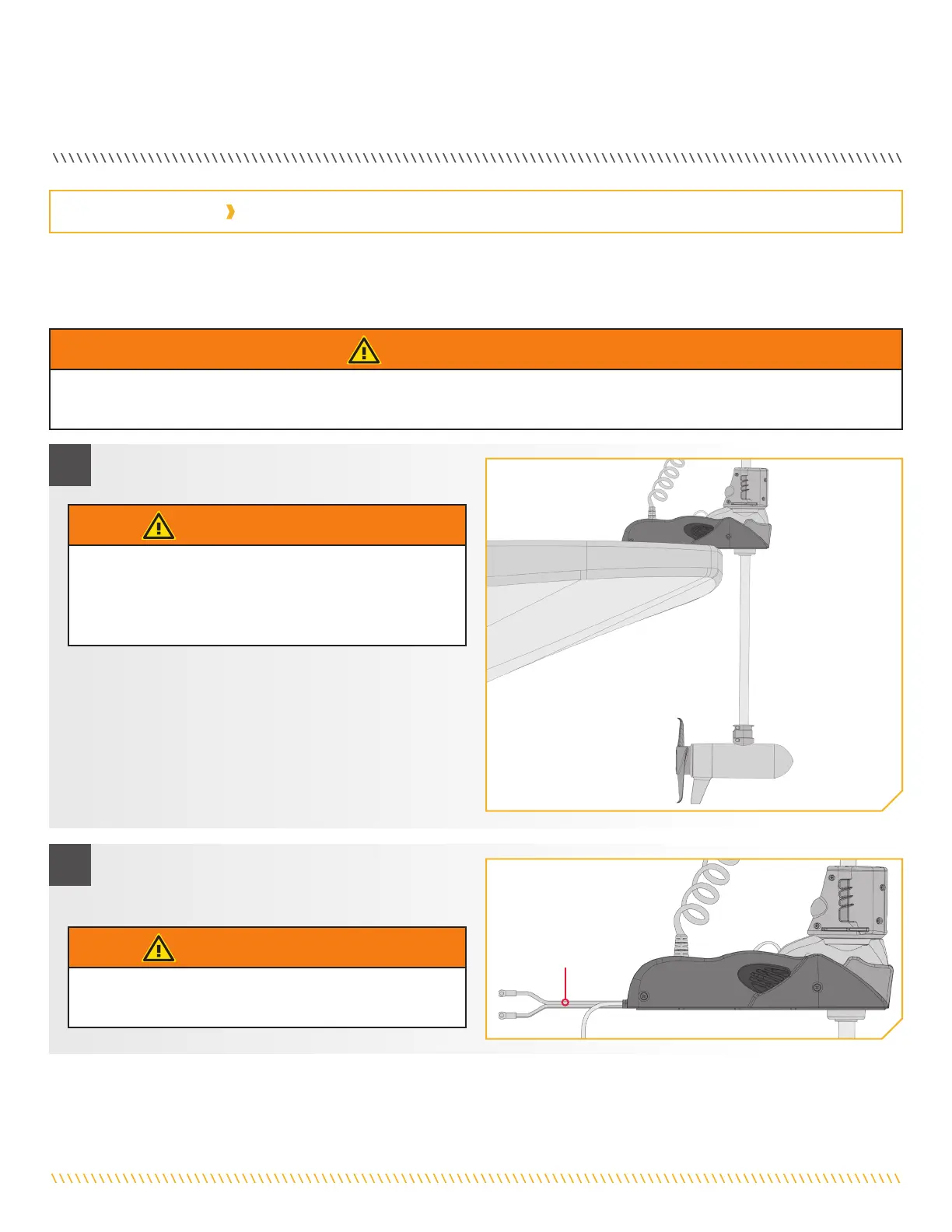

CHANGE THE PROP ORIENTATION
a. Be sure the motor is connected to a power source
and turn the motor “on”.
b. Deploy the motor using the Stow/Deploy Button
on the Foot Pedal or using the i-Pilot or i-Pilot
Link remote.
c. Turn the motor “off”. Make sure the Power Cables
from the battery are disconnected, or that the
breaker, if equipped, is “off”.
When the motor is mounted onto the boat, the orientation of the Prop may be changed to either Inboard or Outboard to accommodate
different boat cover configurations. Complete the following steps to change prop orientation.
CHANGE THE PROP ORIENTATION
Power Cables
MOTOR ADJUSTMENTS
WARNING
When the motor is powered “off” while off the Motor Ramps, never turn the lower unit of the motor manually (by hand). This will affect
the alignment of the motor and cause it to stow improperly.
1
2
WARNING
When stowing or deploying the motor, keep fingers clear of
all hinges, pivot points and all moving parts. When stowing
and deploying the motor, ensure that it doesn’t contact the
boat, trailer, or any other obstruction.
WARNING
Make sure the motor is mounted on a level surface and is
not connected to a power source.
To Next Page
