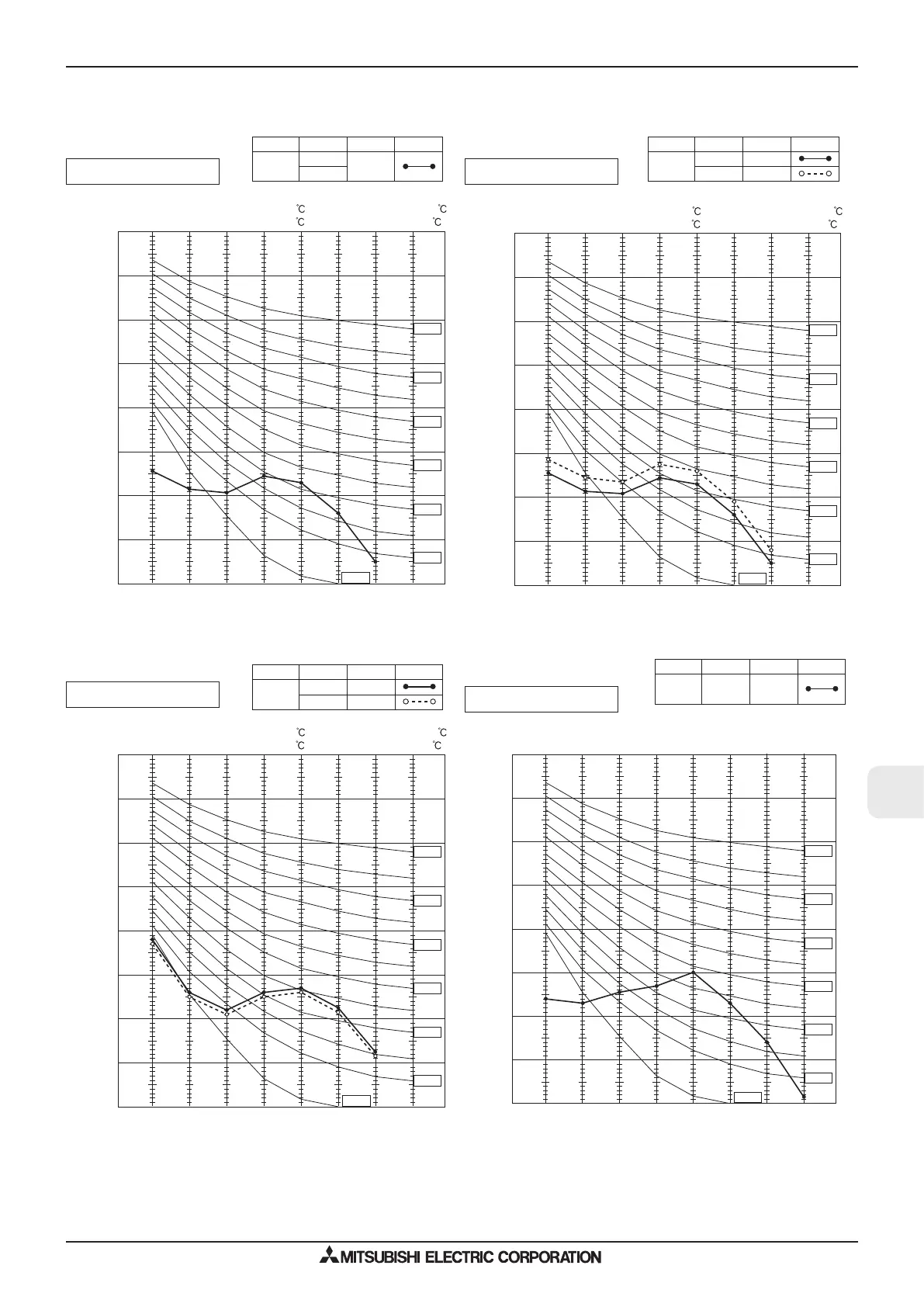

NOISE CRITERIA CURVES
WALL- MOUNTED
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-10
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
Test conditions,
Cooling : Dry-bulb temperature 27 Wet-bulb temperature19
Heating : Dry-bulb temperature 20 Wet-bulb temperature -
MSC-GE20VB
COOLING
High
FUNCTIONFAN SPEED
36
HEATING
SPL(dB(A)) LINE
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-10
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
Test conditions,
Cooling : Dry-bulb temperature 27 Wet-bulb temperature 19
Heating : Dry-bulb temperature 20 Wet-bulb temperature -
MSC-GE25VB
COOLING
High
FUNCTIONFAN SPEED
36
HEATING 39
SPL(dB(A)) LINE
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-10
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
Test conditions,
Cooling : Dry-bulb temperature 27 Wet-bulb temperature 19
Heating : Dry-bulb temperature 20 Wet-bulb temperature -
MSC-GE35VB
COOLING
FUNCTIONFAN SPEED
40
HEATING
High
39
SPL(dB(A)) LINE
C.1.7 NOISE CRITERIA CURVES
C.1.7.1 Indoor Unit
INDOOR UNIT INDOOR UNIT
INDOOR UNIT
90
80
70
60
50
40
30
20
10
63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-10
NC-70
BAND CENTER FREQUENCIES, Hz
Test conditions,
Cooling : Dry-bulb temperature 27°C Wet-bulb temperature 19°C
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
COOLING
FUNCTIONFAN SPEED
42High
SPL(dB(A)) LINE
MS-GE50VB
INDOOR UNIT
