Mitsubishi Electric MFZ-KA35VA User Manual

FLOOR-STANDING Outdoor Unit M series

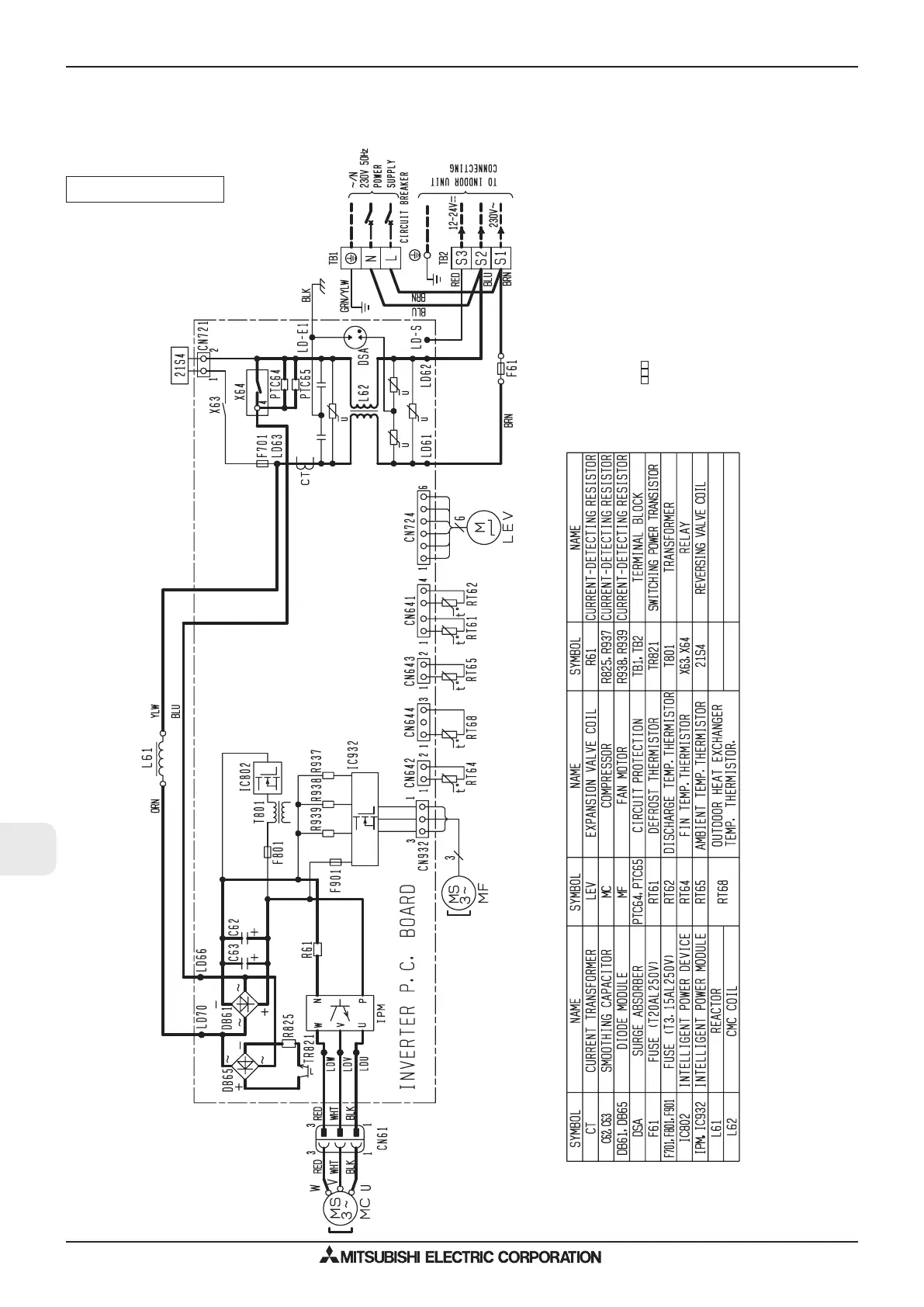

WIRING DIAGRAM
FLOOR- STANDING
C-240
OUTDOOR UNIT
SUZ-KA25VAR1.TH
SUZ-KA35VAR1.TH
C.2.3.2 Outdoor Unit
NOTES: 1. About the indoor side electric wiring, refer to the indoor unit electric wiring diagram for servicing. 2.
Use copper conductors only. (For field wiring)
3. Symbols below indicate.
: Terminal block
