WALL-MOUNTED Cooling Only M series
C-50
REFRIGERANT SYSTEM DIAGRAM
WALL- MOUNTED
Unit: mm
INDOOR UNIT OUTDOOR UNIT
MU-GA20VB
MU-GA25VB

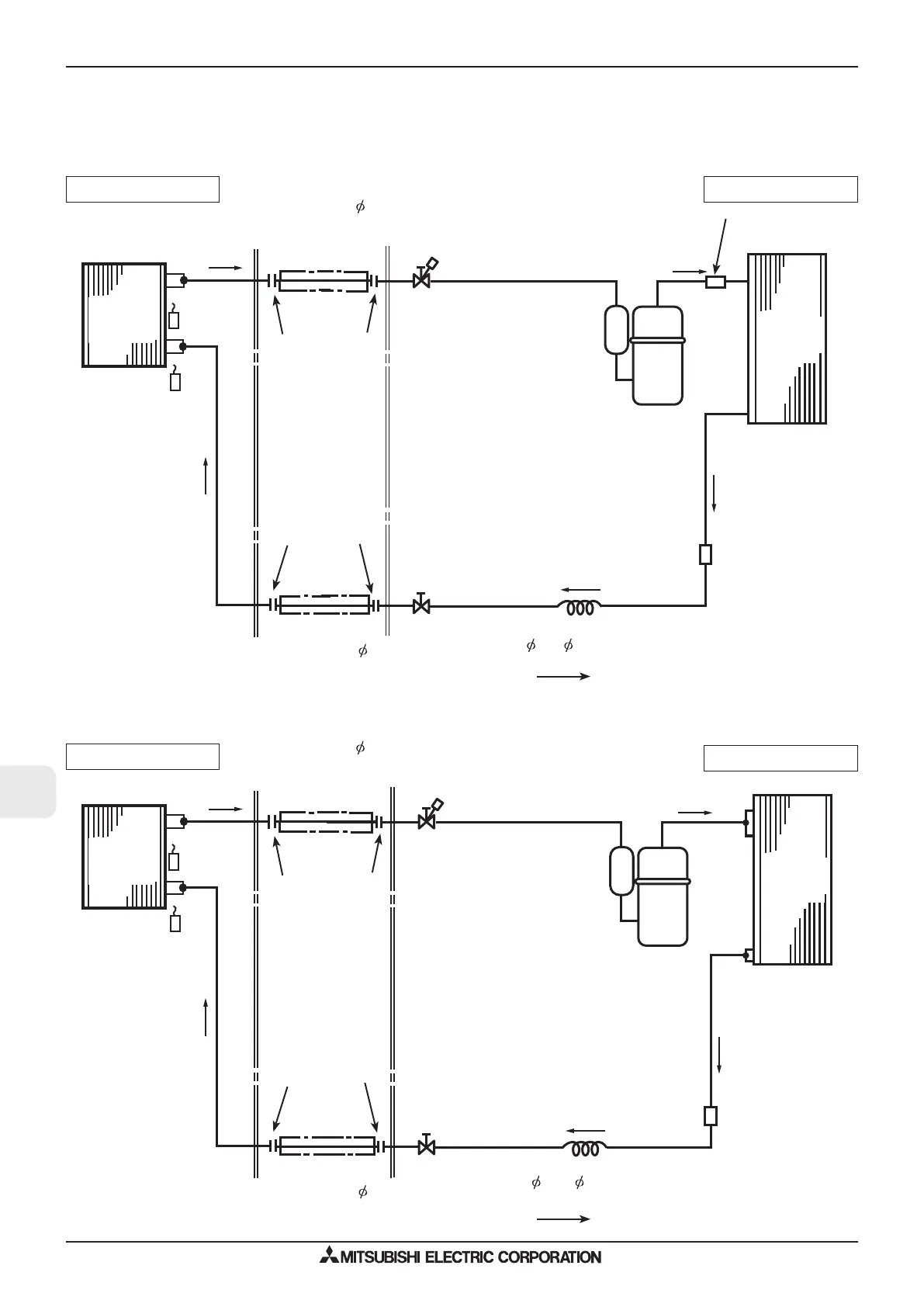

C.1.4 REFRIGERANT SYSTEM DIAGRAM
C.1.4.1 Cooling Only
Indoor
heat
exchanger
Room temperature
thermistor
RT11
Refrigerant pipe 9.52
(with heat insulator)
Indoor coil
thermistor
RT12
Refrigerant pipe 6.35
(with heat insulator)
MSC-GE20VB
MSC-GE25VB
Refrigerant flow in cooling
Outdoor
heat
exchanger
Capillary tube
3.0 x 1.4 x 900
Strainer
#100
Stop valve
(with service port)
Compressor
Muffler (GA25VB)
Stop valve
INDOOR UNIT
OUTDOOR UNIT
MU-GA35VB
MSC-GE35VB
Indoor
heat
exchanger
Room temperature
thermistor
RT11
Refrigerant pipe 9.52
(with heat insulator)
Indoor coil
thermistor
RT12
Refrigerant pipe 6.35
(with heat insulator)
Flared connection
Flared connection
Outdoor
heat
exchanger
Capillary tube
3.0 x 1.4 x 400
Strainer
#100
Stop valve
(with service port)
Compressor
Stop valve
Refrigerant flow in cooling
Flared connection
Flared connection
