WALL-MOUNTED MSZ-FD•VA/S Series M series
OPERATION AND ACTUATOR CONTROL
WALL-
MOUNTED
C-202
ON TIMER button
CLOCK SET button
TIME SET buttons
FORWARD button
BACKWARD button
OFF TIMER button
RESET button
VANE CONTROL button
WIDE VANE button
(Vertical vane button)
CLEAN button
AREA button
i-see button
Signal transmitting section
Operation display section
OPERATE/STOP
(ON/OFF) button
FAN SPEED CONTROL button
OPERATION SELECT button
ECONO COOL button
PLASMA button
Temperature buttons
NOTE: Last setting will be stored after the unit is turned OFF with the remote controller. Indoor unit receives the signal of the
remote controller with beeps.

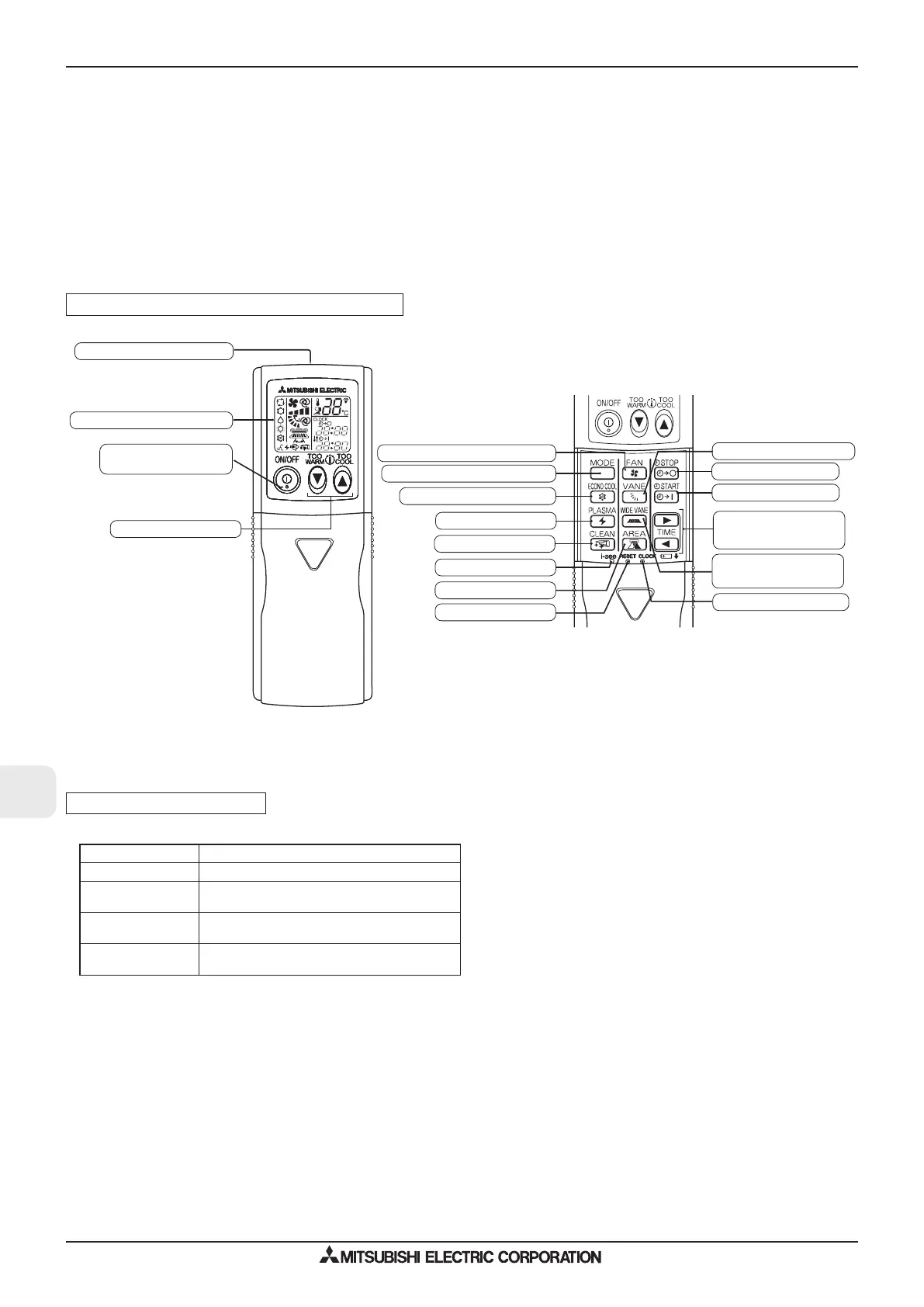

WIRELESS REMOTE CONTROLLER
INDOOR UNIT LAMP
The lamps at the center of the indoor unit indicates the operation state.
Lamp Operation state
AREA Refer to g.
POWER
Lamp lights during operation.
Lamp blinks in abnormal condition.
CLEAN
Lamp lights during clean operation.
Refer to i.
PLASMA
Lamp lights during PLASMA operation.
Refer to h.
MSZ-FD25VA MUZ-FD25VA
MSZ-FD25VAS MUZ-FD25VABH
MSZ-FD35VA MUZ-FD35VA
MSZ-FD35VAS MUZ-FD35VABH
MSZ-FD50VA MUZ-FD50VA
MSZ-FD50VAS MUZ-FD50VABH
C.1.10.2 MSZ-FD•VA/S Series
