FLOOR-STANDING Inverter Heat PumpM series

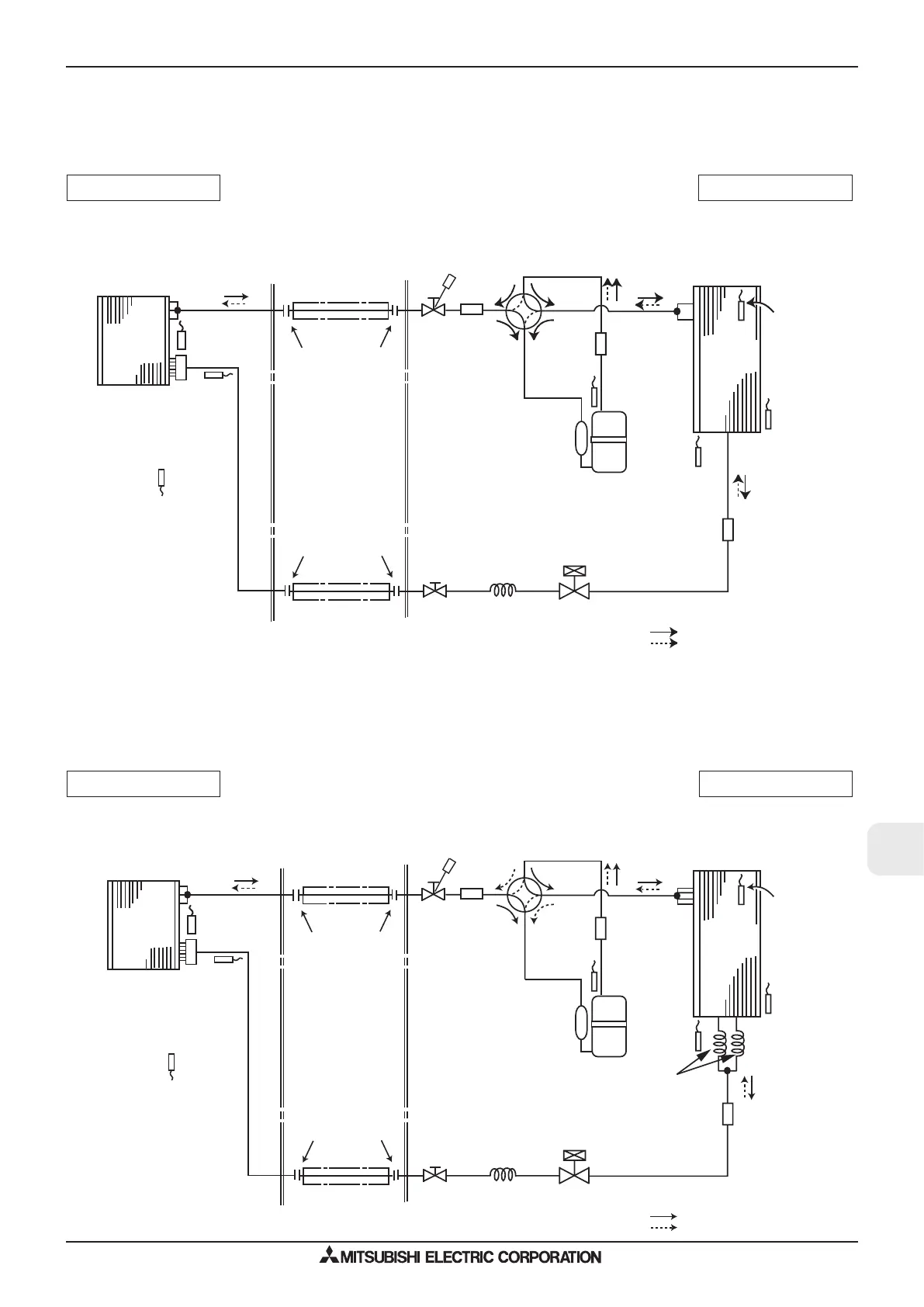

REFRIGERANT SYSTEM DIAGRAM
FLOOR- STANDING
C-243
C.2.4.1 Inverter Heat Pump
C.2.4 REFRIGERANT SYSTEM DIAGRAM
Indoor
heat
exchanger
Flared connection
Room temperature
thermistor
RT11
Indoor coil
thermistor
RT12, RT14,
RT15 (main)
RT13 (sub)
Flared connection
Refrigerant pipe :9.52
(with heat insulator)
Indoor coil
thermistor
RT12 (main)
Distributor
Refrigerant pipe :6.35
(with heat insulator)
Defrost
thermistor
RT61
Discharge
temperature
thermistor
RT62
Stop valve
(with strainer)
Stop valve
(with service port)
Refrigerant flow in cooling
Compressor
4-way valve
Refrigerant flow in heating
R.V. coil
heating ON
cooling OFF
Strainer
#100
Ambient
temperature
thermistor
RT65
Muffler
Capillary tube
ø3.0×ø2.0×240
Outdoor heat
exchanger
temperature
thermistor
RT68
Muffler
Outdoor
heat
exchanger
LEV
Refrigerant pipe :6.35
(with heat insulator)
Indoor
heat
exchanger
Flared connection
Room temperature
thermistor
RT11
Indoor coil
thermistor
RT12, RT14,
RT15 (main)
RT13 (sub)
Flared connection
Refrigerant pipe :9.52
(with heat insulator)
Indoor coil
thermistor
RT12 (main)
Distributor
Outdoor
heat
exchanger
Defrost
thermistor
RT61
Discharge
temperature
thermistor
RT62
Stop valve
(with strainer)
Stop valve
(with service port)
Refrigerant flow in cooling
Compressor
4-way valve
Refrigerant flow in heating
R.V. coil
heating ON
cooling OFF
Strainer
#100
Capillary tube
ø3.0×ø1.8×600(×2)
LEV
Ambient
temperature
thermistor
Muffler
Capillary tube
ø3.0×ø2.0×240
Outdoor heat
exchanger
temperature
thermistor
Muffler
RT65
RT68
Unit: mm
INDOOR UNIT
MFZ-KA25VA
OUTDOOR UNIT
SUZ-KA35VAR1.TH
SUZ-KA35VAHR1.TH
INDOOR UNIT
MFZ-KA35VA
OUTDOOR UNIT
SUZ-KA25VAR1.TH
SUZ-KA25VAHR1.TH
