2. Product Data
2. Product Data
2-1. Capacity tables
When the power supply is imbalanced or under certain power supply conditions, the restriction control may be activated, preventing
the unit from achieving the rated performance level.
2-1-1. Correction by temperature

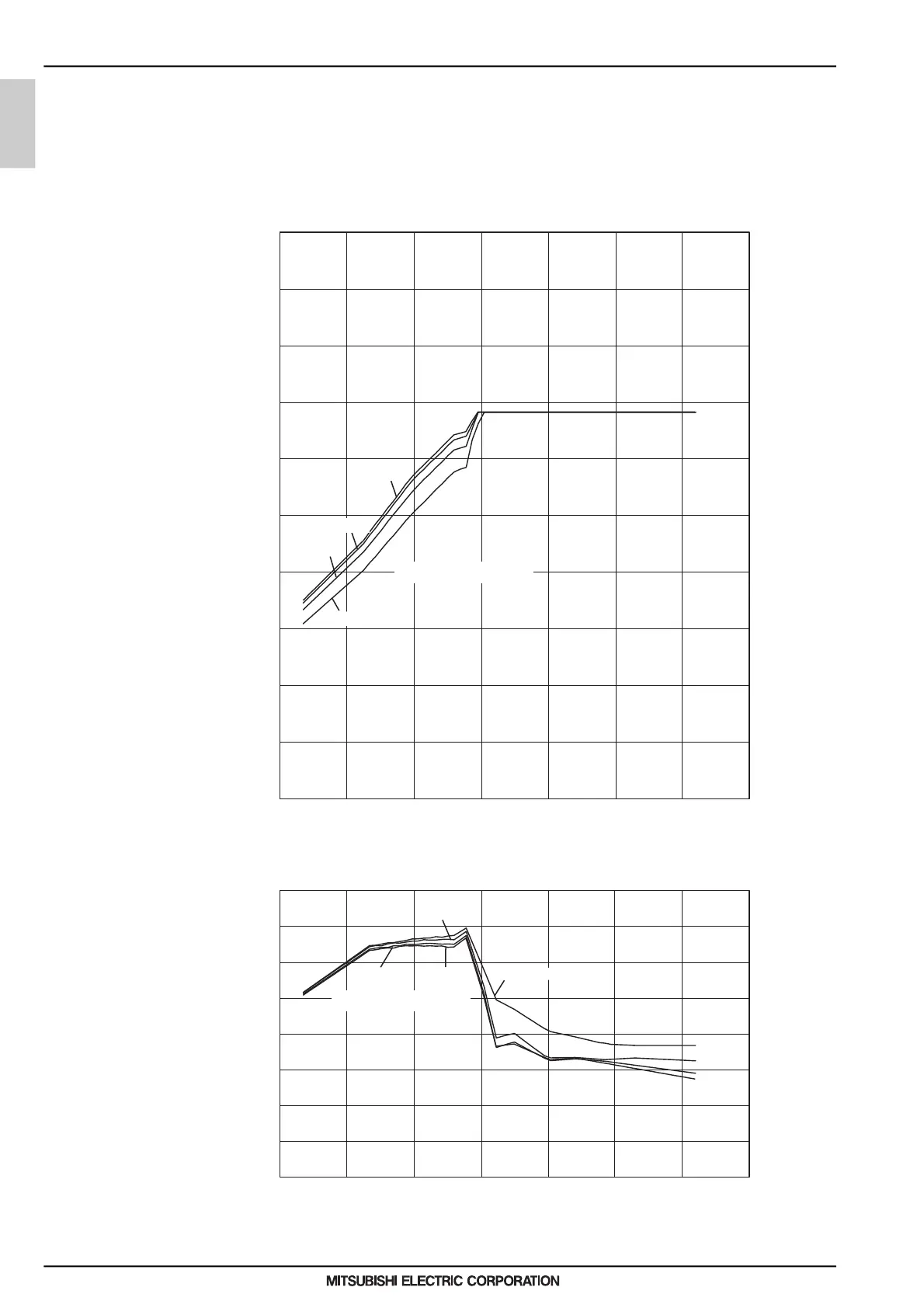

Outlet water temperature 130°F (54°C)
Energy saving operation 1 mode
QAHV-N136TAU-HPB (-BS)/QAHV-N136YAU-HPB (-BS)
0
20,000
40,000
60,000
80,000
100,000
120,000
140,000
160,000
180,000
200,000
Capacity (Btu/h)
0
10,000
20,000
30,000
40,000
50,000
60,000
70,000
80,000
Power input (Btu/h)
Capacity (kW)
58.6
52.8
46.9
41.0
0
35.2
29.3
23.4
17.6
11.7
5.9
Power input (kW)
0
2.9
5.9
8.8
11.7
14.7
17.6
20.5
23.4
-20 0 20 40 60 80 100 120
Intake air temperature (°F D.B.)
-29 -18 -7 4 16 27 38 49
Intake air temperature (°C D.B.)
-20 0 20 40 60 80 100 120
Intake air temperature (°F D.B.)
-29 -18 -7 4 16 27 38 49
Intake air temperature (°C D.B.)
55°F (13°C)
45°F (7°C)
55°F (13°C)
Inlet water temperature
Inlet water temperature
75°F (24°C)
45°F (7°C)
41°F (5°C)
75°F (24°C)41°F (5°C)
