Mitsubishi Electric QAHV-N136TAU-HPB User Manual

MEES22K030
QAHV-N-TAU-HPB, YAU-HPB
45
5. Wiring Design
5-2. Electrical Wiring Installation
5-2-1. Main Power Supply Wiring and Switch Capacity

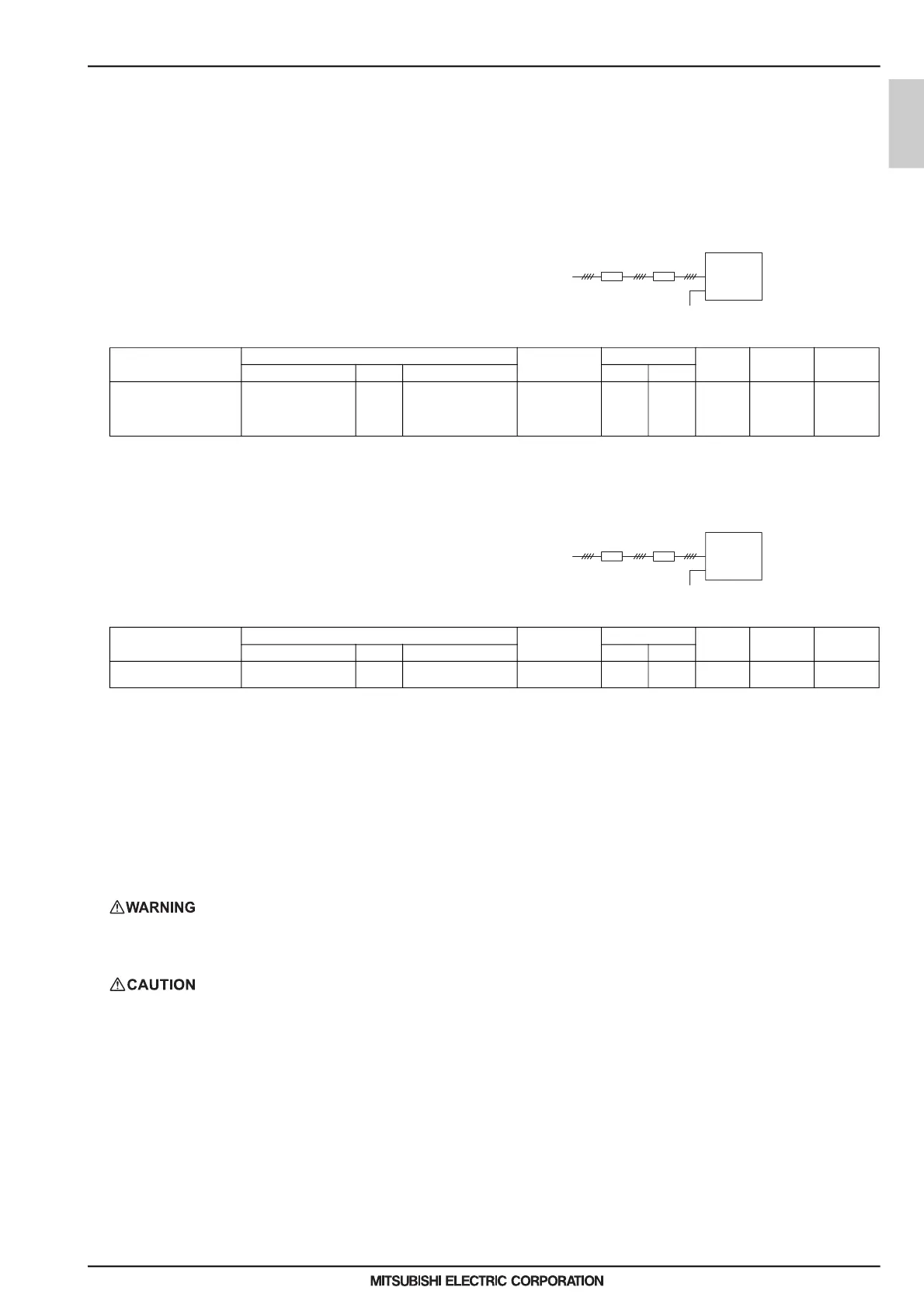

Schematic Drawing of Wiring (Example)
QAHV-N136TAU-HPB
Main power supply wire size, switch capacities, and system impedance
QAHV-N136YAU-HPB
Main power supply wire size, switch capacities, and system impedance
3~208–230 V
<A> Switch (with current breaking capability)
<B> Current leakage breaker
<C> Hot water heat pump
L
1 , L 2 , L 3
PE
<A><B>
<C>
Model
Minimum wire thickness (mm²)
Current leakage
breaker
Local switch (A)
No-fuse
breaker (A)
MCA (A)
(208 V/230 V)
MOP (A)
(208 V/230 V)
Main cable Branch PE
Capacity Fuse
QAHV-N136TAU-HPB
42.4 mm² (AWG 1)
(Up to 78 m (255 ft))
21.2 mm² (AWG 4)
(Up to 48 m (157 ft))
-
42.4 mm² (AWG 1)
(Up to 78 m (255 ft))
21.2 mm² (AWG 4)
(Up to 48 m (157 ft))
100 A 100 mA 0.1
sec. or less
100 100 100 67 110
3~460 V
<A> Switch (with current breaking capability)
<B> Current leakage breaker
<C> Hot water heat pump
L
1 , L 2 , L 3
PE
<A><B>
<C>
Model
Minimum wire thickness (mm²)
Current leakage
breaker
Local switch (A)
No-fuse
breaker (A)
MCA (A) MOP (A)
Main cable Branch PE
Capacity Fuse
QAHV-N136YAU-HPB 13.3 mm² (AWG 6) - 13.3 mm² (AWG 6)
50 A 100 mA 0.1
sec. or less
40 40 40 39 40
1) Use a dedicated power supply for each unit. Ensure that each unit is wired individually.
2) When installing wiring, consider ambient conditions (e.g., temperature, sunlight, rain).
3) The wire size is the minimum value for metal conduit wiring. If voltage drop is a problem, use a wire that is one size thicker.
Make sure the power-supply voltage does not drop more than 10%.
4) Specific wiring requirements should adhere to the wiring regulations of the region.
5) Power supply cords of appliances for outdoor use shall not be lighter than polychloroprene sheathed flexible cord (design 60245 IEC57).
6) A switch with at least 3 mm (1/8 in.) contact separation in each pole shall be provided by the hot water heat pump installer.
7) Do not install a phase advancing capacitor on the motor. Doing so may damage the capacitor and result in fire.
8) Depending on the installation conditions (power-supply imbalance, etc.), the amount of current may increase. Select a breaker with proper
capacity to suit the local usage conditions.

Be sure to use specified wires and ensure no external force is imparted to terminal connections.
Loose connections may cause overheating and fire.

Be sure to use the appropriate type of overcurrent protection switch. Note that overcurrent may include direct current.

Some installation sites may require an installation of an earth leakage breaker for the inverter. If no earth leakage breaker is installed,
there is a danger of electric shock.

Only use properly rated breakers and fuses. Using a fuse or wire of the wrong capacity may cause malfunction or fire.
0000006864.BOOK 45 ページ ２０２２年８月２５日 木曜日 午後３時５８分
