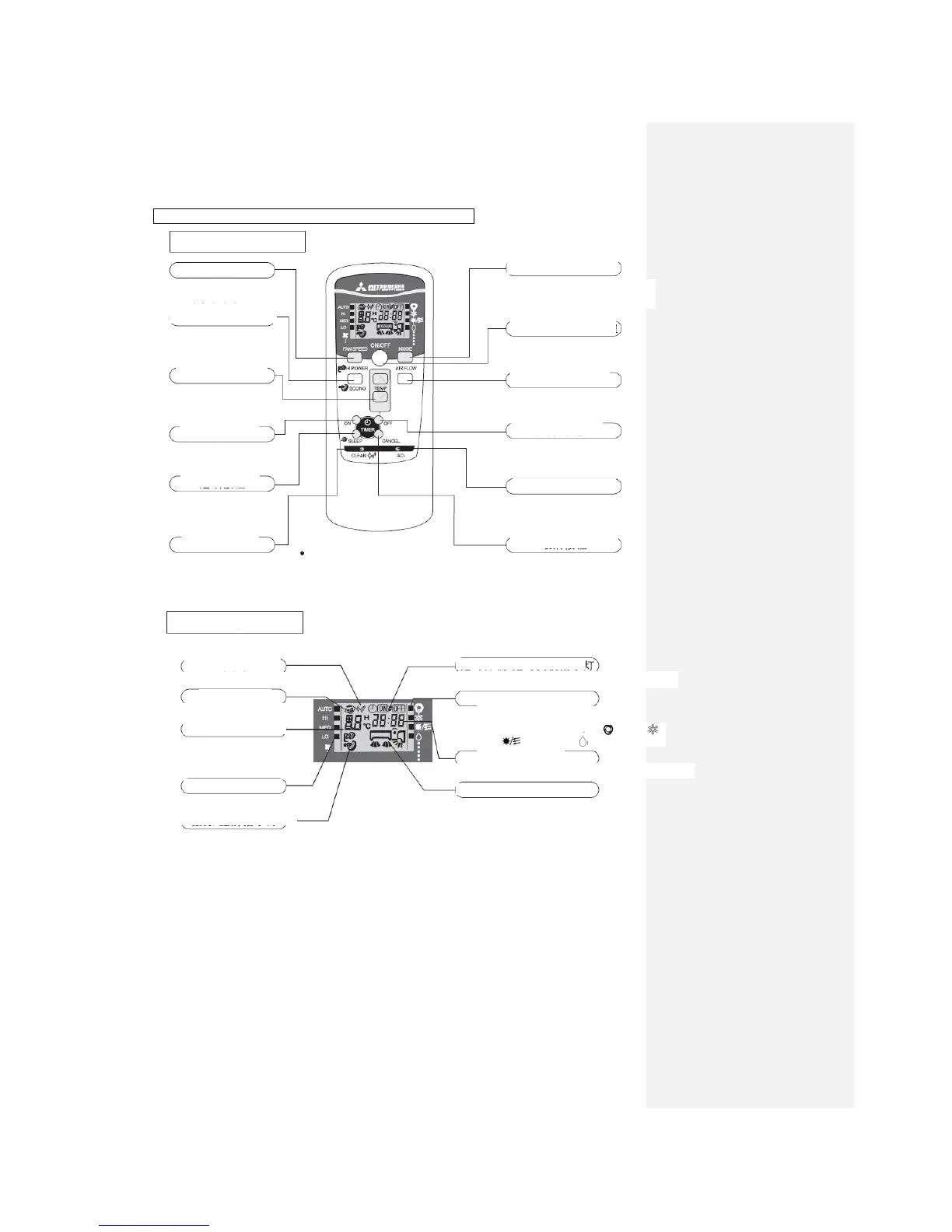

Operation and indication section for remote control
Operation section
FAN SPEED button
Each time the button is pushed ■indicator is
switched over in turn.
HI POWER/ECONOMY button
TEMPERATURE button
This button sets the room tem-
perature.(press the button to select the
current time and timing time)
ON TIMER button
This button sets the ON timer Times.
CLEAN button
Indication section
SLEEP indicator
Indicates during SLEEP mode
operation.
TEMPERATURE indicator
FAN SPEED indicator
Indicates set air flow rate with■ lamp.
lamp.
HI POWER/ECONOMY indicator
Display in the HI POWER/ ECONOMY operation mode respectively.
OPERATION MODE select button
Each time the button is pushed ■
indicator is switched over in turn.
ON/OFF button
Press for starting operation pr-
ess again for stopping.
AIR FLOW button
This button sets the swaying
way of the air flap.
OFF TIMER button
CANCEL button
The button is used to cancel the timing
ONtimer/OFF timer and SLEEP operation.
ON /OFF TIMER indicator
Indicates during ON/OFF TIMER mode operation.
mode operation.
Operation mode indicator
Indicates selected operation with lamp.
Time display lamp
Display the current time or the time
set by timer.
■ is used to indicate the mode selected: [ (AUTO)
(COOLING) (HEATING) (DRYING)]
Display the swaying way of the wind guide blade.
The above illustration shows all
controls,but in practice only the
relevant parts are shown.
CLEAN indicator
ON/OFF (luminous) button
This button changes the HI PO-
WER /ECONOMY mode.
SLEEP button
This button changes the
“SLEEP” mode.
This button changes the “CLEAN” mode.
RESET switch
Switch for resetting microcomputer.
This button sets the OFF timer
Times.
Indicates set temperature.
(Does not indicate temperature
when operation mode is on AUTO)
Air supply display lamp
