-18-

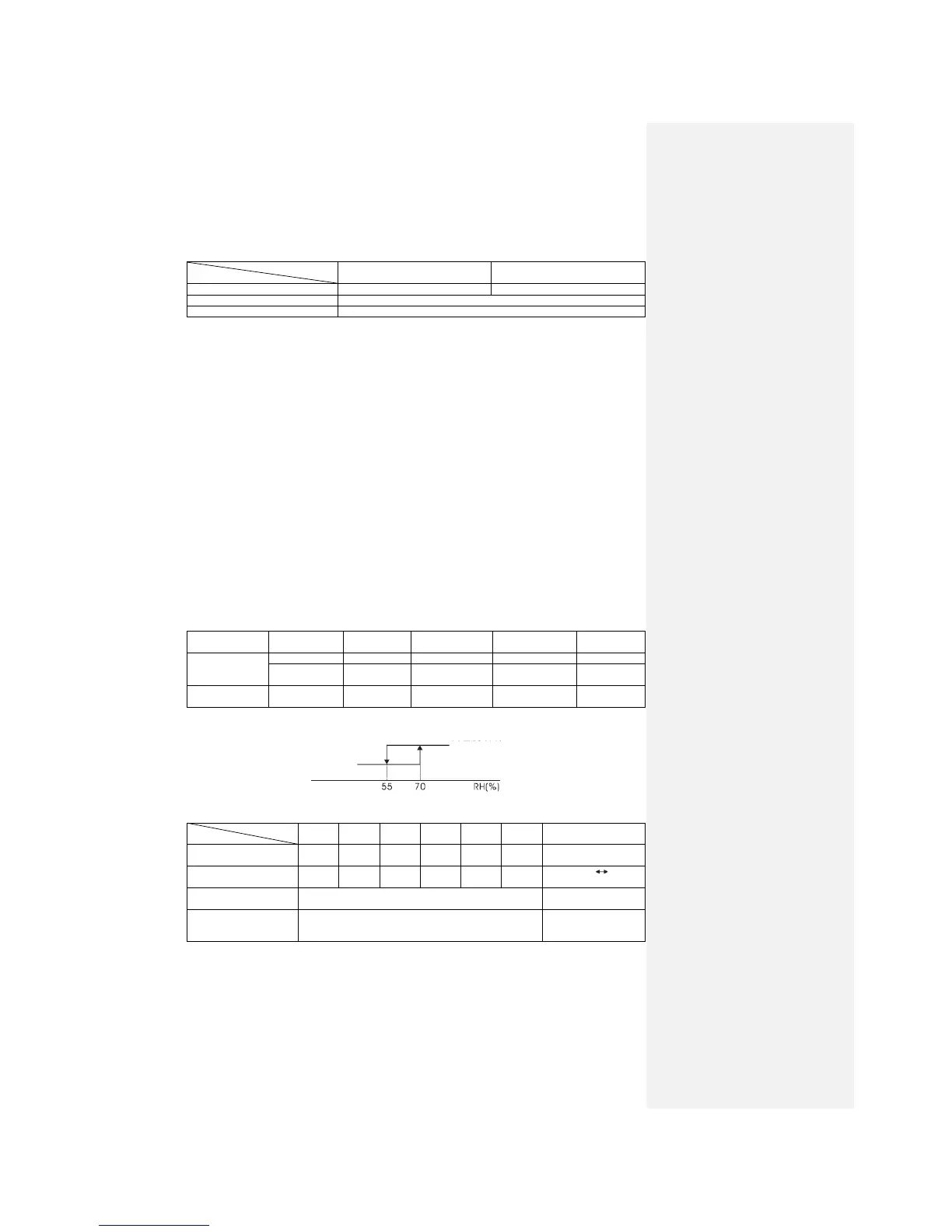

(c) HI POWER Cooling operation (HI POWER button on remote controller: ON)
Unrelated to set temperature. Continuous operation for15 minutes.
● Detail of operation
Model
Item
SRK25QA-S
SRK35QA-S
Inverter instruction frequency
92
106
Indoor fan
7th speed
Outdoor fan
Corresponding to instruction frequency
Notes: (1) Room temperature can’t be adjusted during the HI POWER operation.
(2) Priority is given to actuation of protective device even during the HI POWER operation.
4.8 Outline of drying operation
(1) After the fan commences operation (1st speed for indoor fan, 3rd speed for outdoor fan) within
20 seconds after the start of operation, the room temperature TION, the outdoor air temp. sensor
TO and set temperature SP are checked to determine whether to use cooling & drying or heating
& drying.
● TION > SP-3 or TO ≥ 19℃: cooling & drying
● TION ≤ SP-3 or TO < 19℃: heating & drying
Cooling & drying or heating & drying is selected again one hour after selection.
(2) Outline of control
(a) Cooling & drying
● Room temperature TION, set temperature SP and value of humidity sensor are checked
every 5 minutes after the cooling & drying is selected to determine the operation range of
drying.
● Operation ranges are shown in the table below:
Humidity
range
TION<SP-1
SP-1≤TION<SP
SP≤TION<SP+2
SP+2≤TION
Normal
operation
Low humidity
Range I
Range C
Range B
Range A
High
humidity
Range I
Range F
Range E
Range D
Economical
type
Range I
Range C
Range C
Range E
● The range of humidity sensor is judged according to the following:
● The operations of the components in the operation range of cooling & drying are as
follows:
Operation range
Functional component
A
B
C
D
E
F
I
Instruction frequency
HZ
34
26
20
40
26
20
0
Rotate speed of indoor
fan
4th
speed
2nd
speed
2nd
speed
4th
speed
2nd
speed
2nd
speed
1st speed OFF
Rotate speed of
outdoor fan
Corresponding to instruction frequency
OFF
4-way valve
OFF (indoor continuous instructions - 0)
OFF F (indoor
continuous
instructions - 0)
● When the set temperature change signal is received, the original range will be continued till
finished; in the next 5 minutes, the room temperature TION, set temperature SP and value
of humidity sensor are checked to determine the new operation range.
● When a range other than Range I is switched to Range I, the control is as follows:
(A) According to the Stop mode (B);
High humidity range
Low humidity range
