(Purging is not required even for the short piping.)
2.2 Range of usage
Please use the air conditioners within the following range of usage, otherwise the protector will be
triggered.
Cooling Operation
Heating Operation
Outdoor temperature
About 18℃~43℃
About -15~24℃
Room temperature
About18℃~32℃
About below 30℃
Indoor humidity
About below 80%
25~35 Models
Max. piping one-way length
Within 15 m
Vertical height difference
Within 5 m
Additional R410A Refrigerant
Not required
Voltage
Rating ±10%
Starting voltage
At least 85% of rating
Switching frequency
Max. 10 times per hour
Time interval between stop and start
Min. 3 min

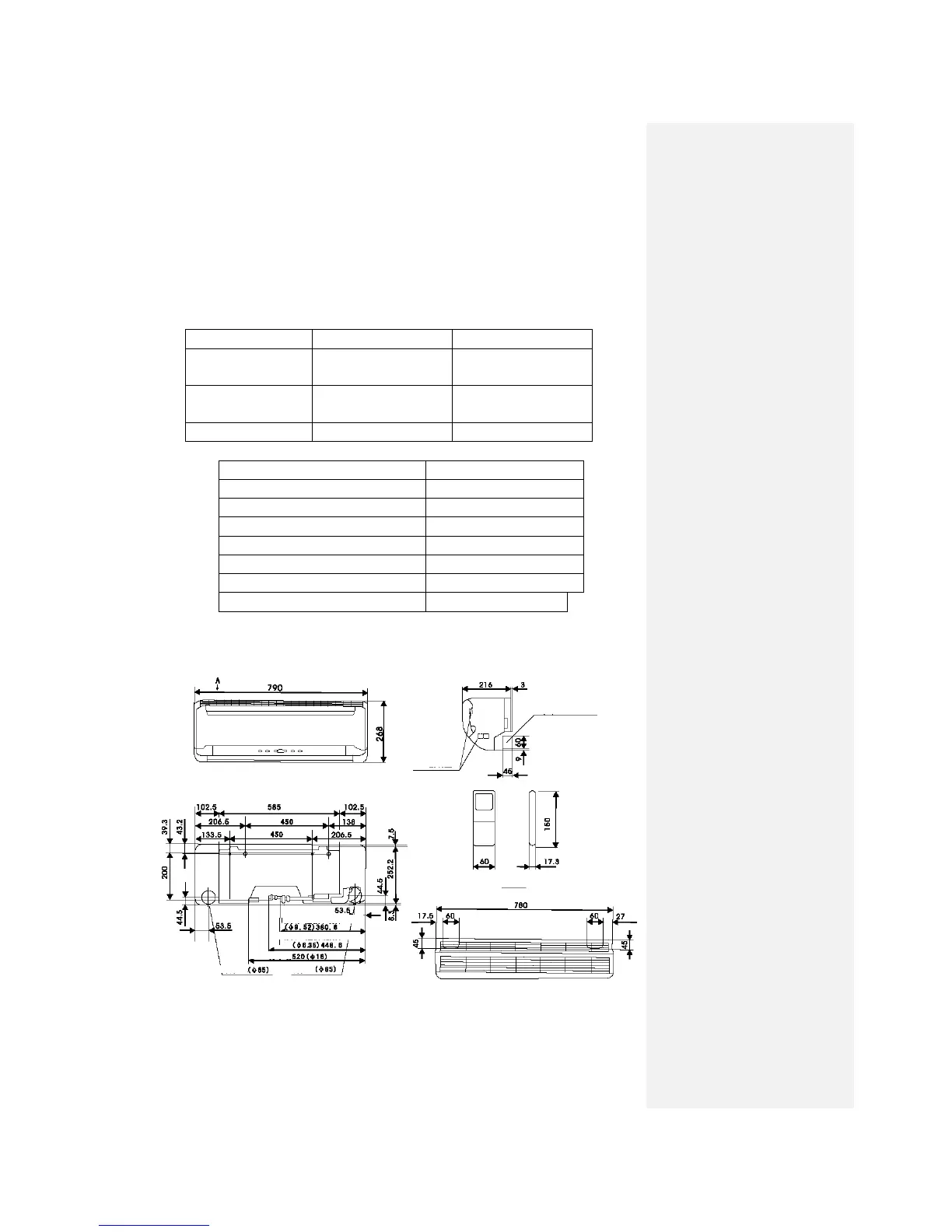

2.3 Outline drawing
(1) Indoor unit: SRK25QA–S/ SRK35QA–S Unit: mm
Piping hole right (left)
Terminal block
Remote controller
Flare connecting (Gas)
Flare connecting (Liquid)
Drainage pipe
Piping hole
Piping hole
VIEW A
