6A1 ENGINE (E-W) -

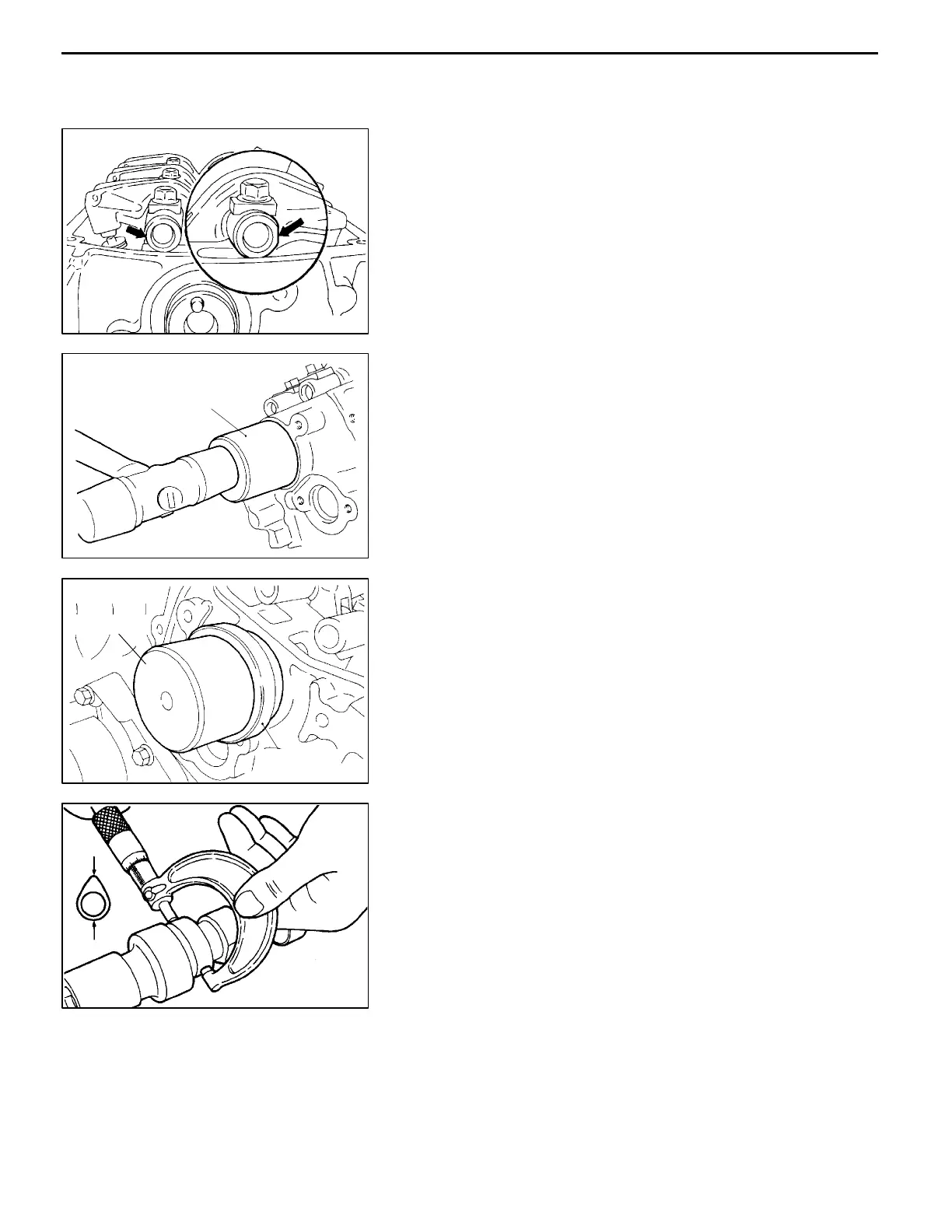

Rocker Arm and Camshaft <SOHC>
11A-9-3
NOTE
Install the rocker shaft spring before installing the exhaust
side rocker arms and rocker arm shaft.
(3) Remove the special tool for securing the lash adjuster.
(4) Make sure that the notch in the rocker arm shaft is in
the direction as illustrated.
"
D
A
CAMSHAFT OIL SEAL INSTALLATION
(1) When installing the left bank camshaft oil seal, use the
special tool to prevent interference with the knock pin.
INSPECTION
CAMSHAFT
(1) Measure the cam height (lobe diameter) and, if the limit
is exceeded, replace the camshaft.
Standard value:
35.20 mm Intake side
...........................................
34.91 mm Exhaust side
.......................................
Limit:
34.70 mm Intake side
...........................................
34.41 mm Exhaust side
.......................................
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
6AE0163
6AE0164
Right bank
MD998713
6AE0181
MD998713
Left bank
MD998777
9EN0058
