6A1 ENGINE (E-W) -
Rocker Cover and Camshaft <MIVEC>
11A-10-4
"
E
A

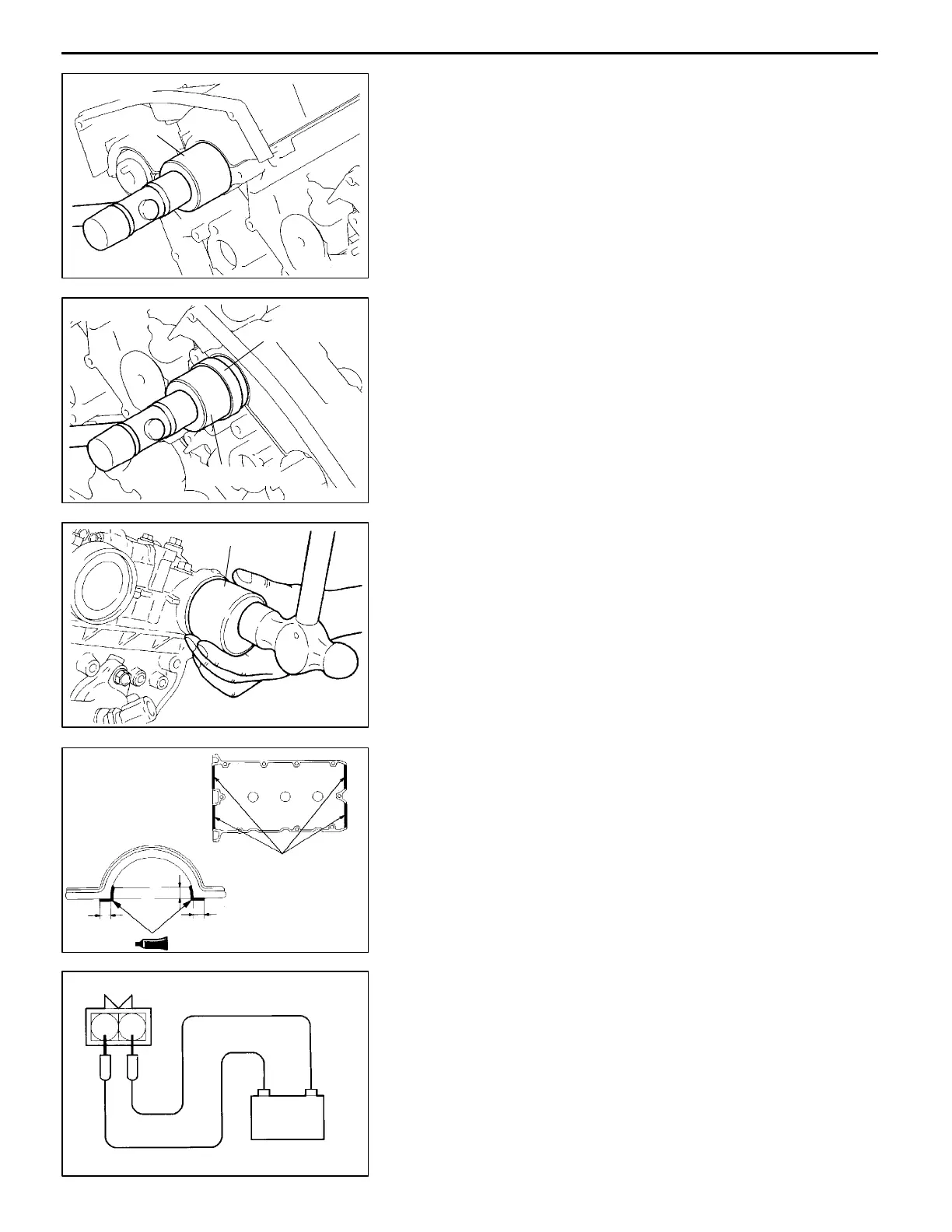

CAMSHAFT OIL SEAL INSTALLATION
(1) When installing the left bank camshaft oil seal, use the
special tool to prevent interference with the knock pin.
"
F
A
CIRCULAR PACKING INSTALLATION
"
G
A
ROCKER COVER INSTALLATION
(1) Apply the specified sealant to the area shown.
Specified sealant:
3M ATD Part No. 8660 or equivalent
INSPECTION
OIL CONTROL VALVE
(1) Connect a 12VDC power supply between terminals (1)
and (2) of the oil control valve and check if the valve
operates smoothly.
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
6AE0306
Right bank
MD998713
6AE0307
Left bank
MD998713
MD998777
6AE0241
MD998713
6AE0242
Sealant application
areas
10 mm
10 mm
10 mm
6AE0206
12
+-
