6A1 ENGINE (E-W) -
Oil Pump Case and Oil Pan
11A-13-4
"
D
A

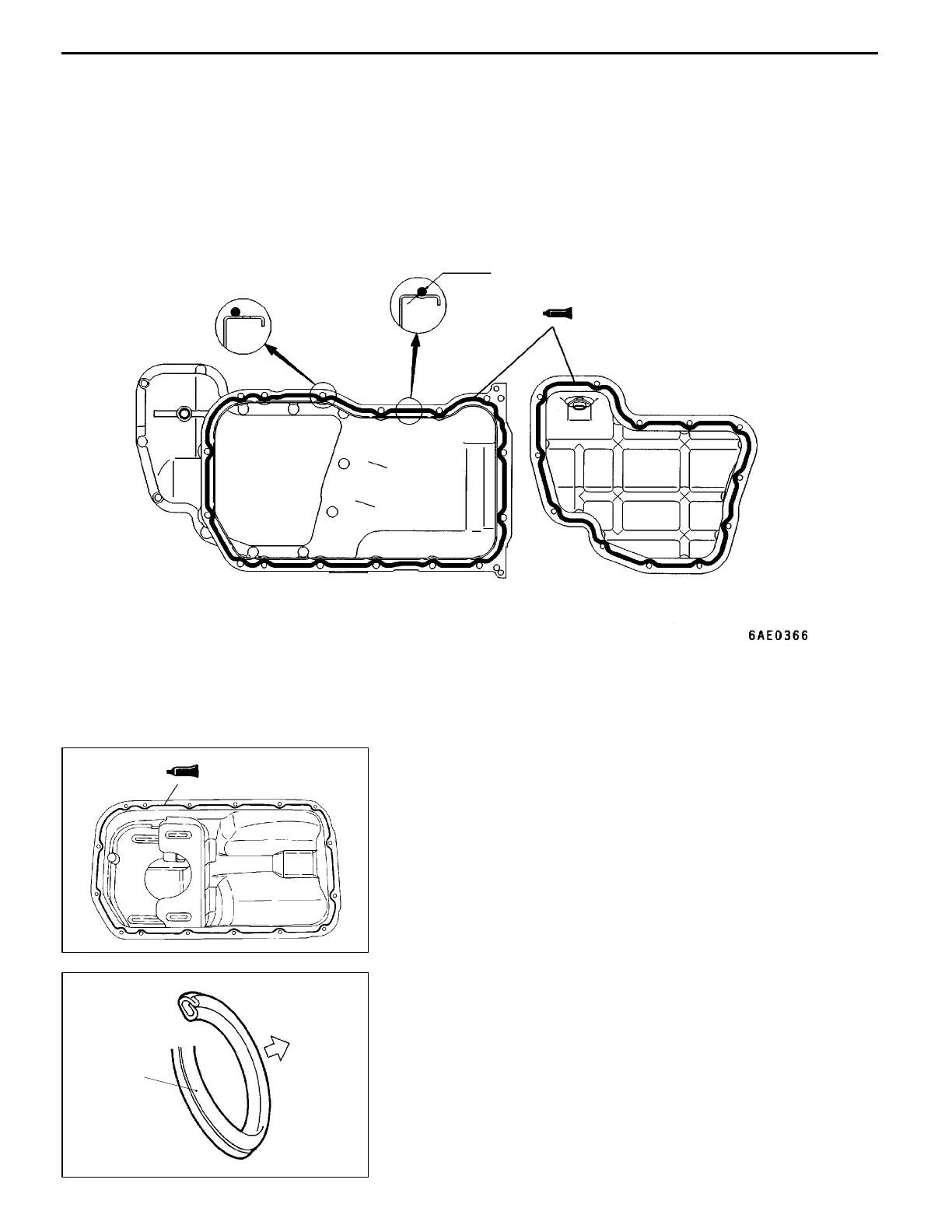

OIL PAN INSTALLATION <SOHC>
(1) Clean the cylinder block an d oil pan gasket application
surfaces.
(2) Install the oil pan within 15 minutes after FIPG has been
applied to the entire flange surfaces of the oil pan.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
Bolt
hole
Groove
f
4
"
E
A
OIL PAN INSTALLATION <MIVEC>
(1) Clean the cylinder block an d oil pan gasket application
surfaces.
(2) Install the oil pan within 15 minutes after FIPG has been
applied to the entire flange surfaces of the oil pan.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
"
F
A
DRAIN PLUG GASKET INSTALLATION
(1) Install the drain plug gasket in the shown direction.
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
6AE0094
4 mm diameter
bead sealant
7EN0307
Oil pan
side
Drain plug
gasket
