6A1 ENGINE (E-W) -
Oil Pump Case and Oil Pan
11A-13-3
REMOVAL SERVICE POINT
A
A
"

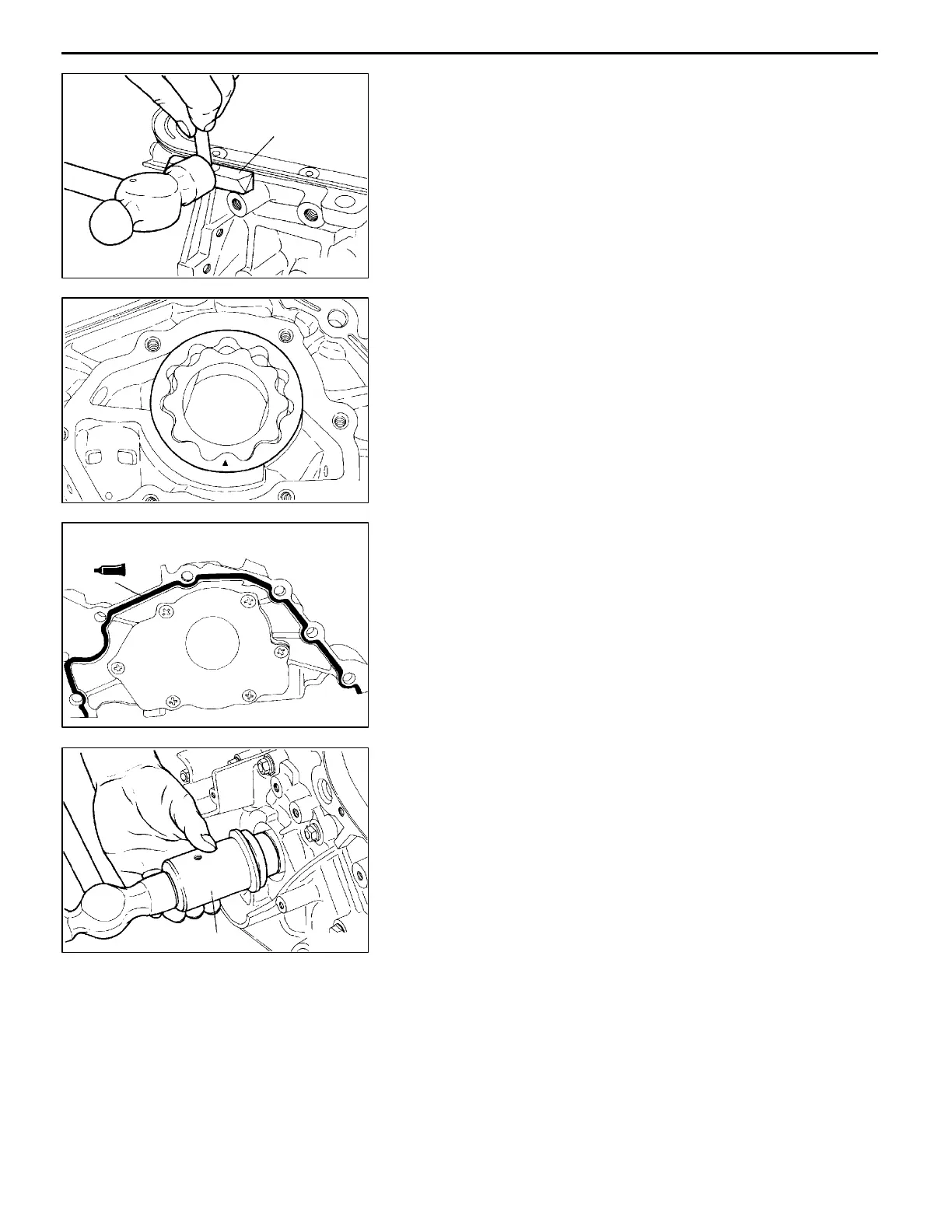

OIL PAN REMOVAL
(1) Knock the special tool deeply between the oil p a n an d
the cylinder block.
(2) Hitting the side of the special tool, slide the special tool
along the oil pan to remove it.
INSTALLATION SERVICE POINTS
"
A
A
INNER ROTOR / OUTER ROTOR INSTALLATION
(1) Apply engine oil to the rotors. Then, install the rotors
ensuring that the alignment dots made at disassembly
are properly aligned.
"
B
A
SEALANT APPLICATION TO OIL PUMP CASE
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
"
C
A
OIL SEAL INSTALLATION
(1) Apply engine oil to the oil seal lip.
Using the special tool, knock the oil seal into the oil pump
case.
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
6AE0087
MD998727
6AE0091
6AE0092
3 mm diameter
bead sealant
6AE0093
MD998717
To Next Page
