6A1 ENGINE (E-W) -
Oil Pump Case and Oil Pan
11A-13-5
"
G
A

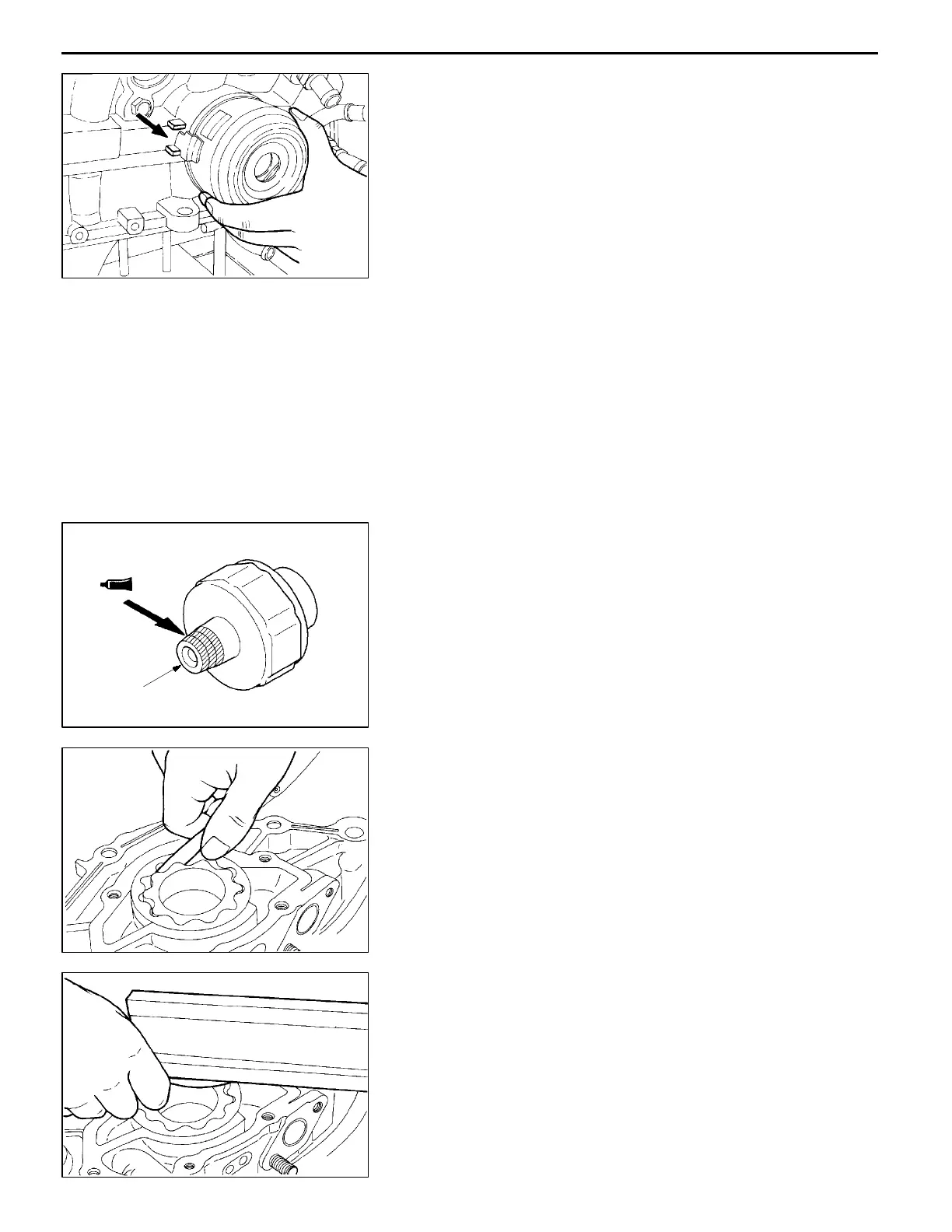

OIL COOLER INSTALLATION
(1) Install the oil cooler, with the oil cooler’s positioning
projection positioned against the rib on cylinder block.
"
H
A
OIL FILTER INSTALLATION
(1) Clean th e surfaces of the cylinder block on which the
oil filter is to be mounted.
(2) Apply engine oil to the O-ring of the oil filter.
(3) Turn down the oil filter until the O-ring contacts the cylinder
block surface, and then give the oil filter one more turn
(or tighten with a 16 Nm torque).
NOTE
For MD135737 oil filter, the tightening torque should be
14 Nm.
"
I
A
SEALANT APPLICATION TO SEALANT TO OIL
PRESSURE SWITCH
(1) Apply sealant to the threads of the switch.
Specified sealant:
3M ATD Part No. 8660 or equivalent
Caution
D
Use care not to allow the sealant to plug the oil
passage.
INSPECTION
OIL PUMP
(1) Check the tip clearance.
Standard value: 0.06 - 0.18 mm
(2) Check the side clearance.
Standard value: 0.04 - 0.10 mm
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
6AE0172
9EN0094
Oil passage
6AE0088
6AE0089
To Next Page
