Mitsubishi AL2-24MR-D User Manual

α2 Simple Application Controllers
Function Blocks 6
6 - 11

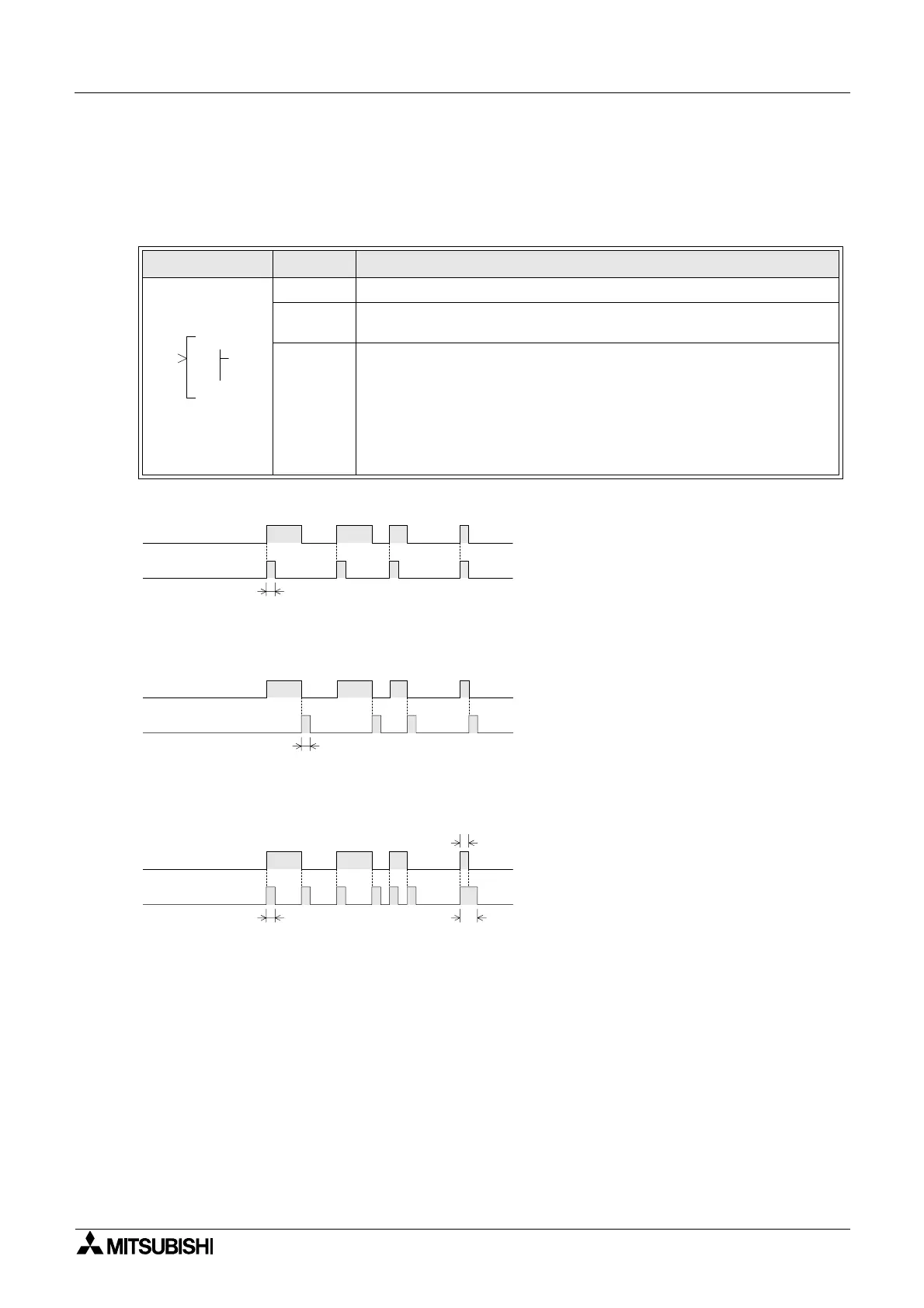

6.5 Pulse Block
The function block emits a single pulse at any of the following user defined times:
Table 6.5: Pulse Function Block
1 ) Operation From ON to OFF
2 ) Operation From OFF to ON
3 ) Operation From ON to OFF and OFF to ON
Function Set Item Description
I Input pin for pulse operation
FB
Sends a single pulse depending on the function block conditional
setup.
Output
The function block sends a single pulse depending on the chosen
pulse operation
1) From ON to OFF
2) From OFF to ON
3) From ON to OFF and OFF to ON
000
LP
OI P
Input pin I
Output
1 operation cycle
(time to process program once)
Input pin I
Output
1 operation cycle
(time to process program once)
Input pin I
Output
1 operation cycle
(time to process program once)
2 pulse width
1 pulse width
