Mitsubishi MT160D Instruction Book

-

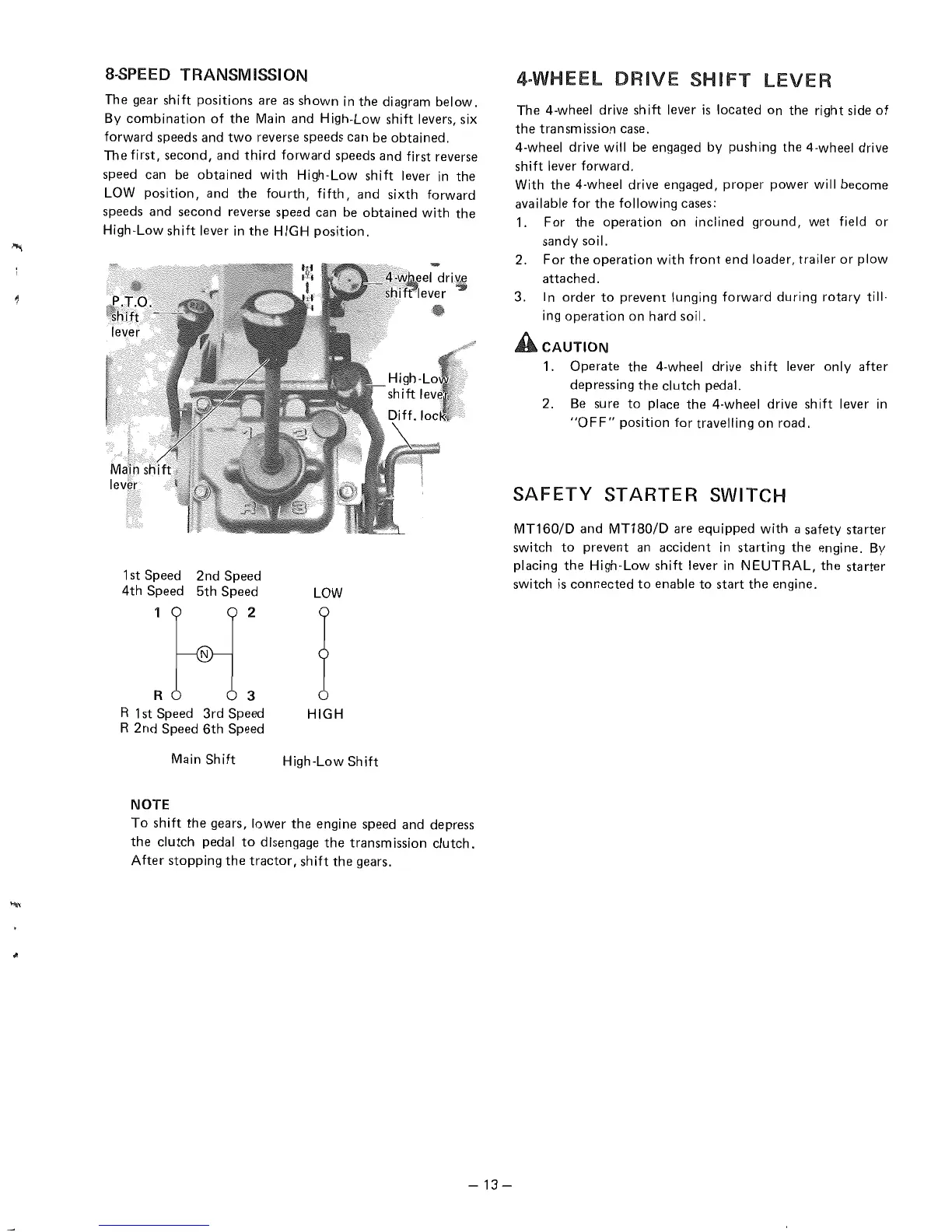

8-SPEED TRANSMISSION
The gear shift positions are as shown in the diagram below.
By combination of the Main and High-Low shift levers, six
forward speeds and two reverse speeds can be obtained.
The first, second, and third forward speeds and first reverse
speed can be obtained with High-Low shift lever in the
LOW position, and the fou rth, fifth, and sixth forward
speeds and second reverse speed can be obtained with the
High-Low shift lever in the HIGH position.
P.T.O.
i'sh ift
lever
lever
1 st Speed 2nd Speed
4th Speed 5th Speed LOW
:H: !
R 1 st Speed 3rd Speed HI G H
R
2nd Speed 6th Speed
Main Shift High-Low Shift
NOTE
To shift the gears, lower the engine speed and depress
the clutch pedal to disengage the transmission clutch.
After stopping the tractor, shift the gears.
-13 -
4-WHEEL DRIVE SHIFT LEVER
The 4-wheel drive sh ift lever is located on the right side of
the transmission case.
4-wheel drive will be engaged by pushing the 4-wheel drive
shift lever forward.
With the 4-wheel drive engaged, proper power will become
available for the following cases:
1.
For the operation on inclined ground, wet field or
sandy soil.
2. For the operation with front end loader, trailer or plow
attached.
3. In order to prevent lunging forward during rotary till-
ing
operation on hard soil.
A CAUTION
1. Operate the 4-wheel drive sh ift lever only after
depressing the clutch pedal.
2. Be sure to place the 4-wheel drive shift lever in
"OFF" position for travelling on road.
SAFETY STARTER SWITCH
MT160/D and MT180/D are equipped with a safety starter
switch to prevent an accident in starting the engine. By
placing the High-Low shift lever in NEUTRAL, the starter
switch is connected to enable to start the engine.
"
