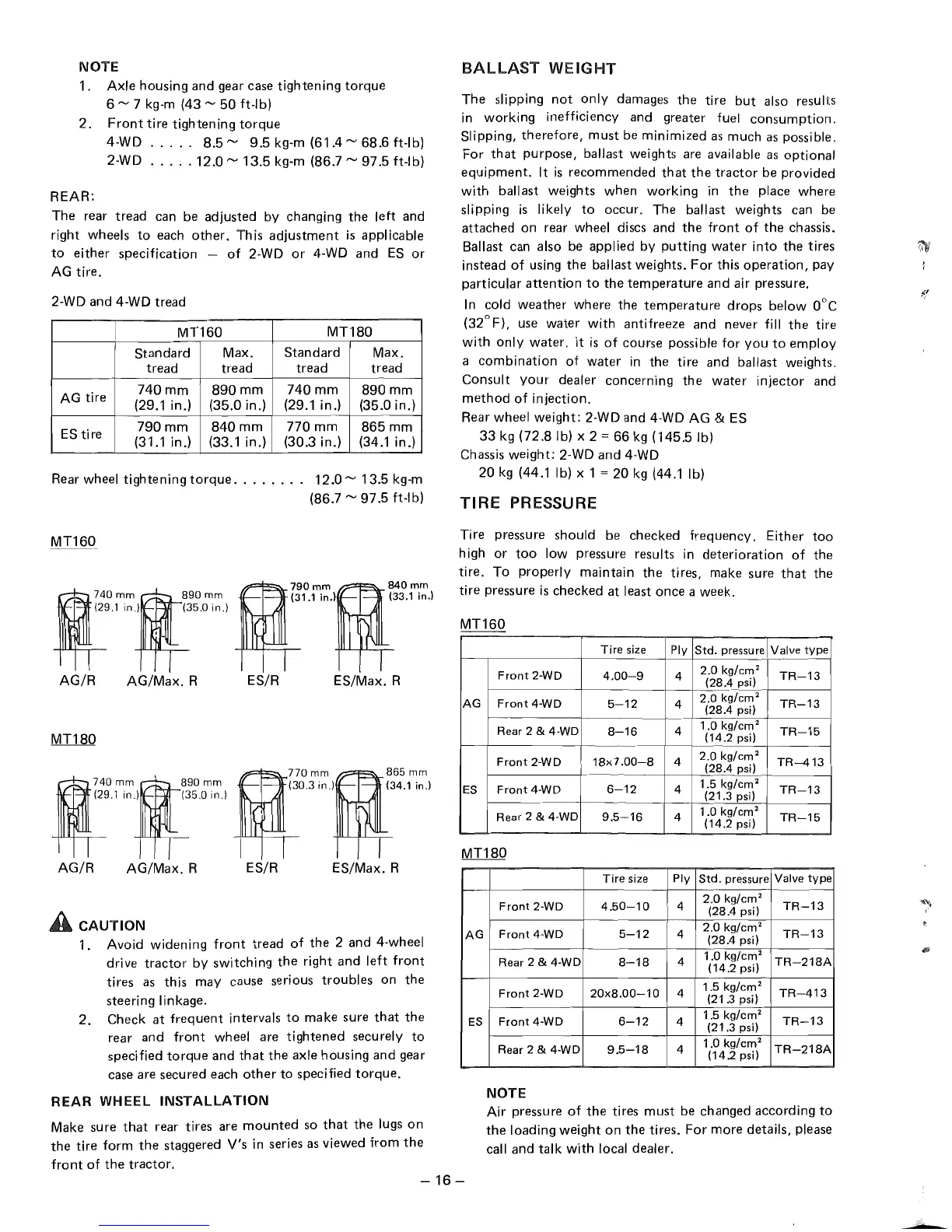

Mitsubishi MT160D Instruction Book

NOTE
1. Axle housing and gear case tightening torque
6 ~ 7 kg-m (43 ~ 50 ft-Ib)
2. Front tire tighten ing torque
4-WD ..... 8.5 ~ 9.5 kg-m (61.4 ~ 68.6 ft-Ib)
2-WD
..... 12.0 ~ 13.5 kg-m (86.7 ~ 97.5 ft-Ib)
REAR:
The rear tread can be adjusted by changing the left and
right wheels to each other. This adjustment is applicable
to either specification - of 2-WD or 4-WD and ES or
AG tire.
2-WD and 4-WD tread
MT160
MT180
Standard
Max. Standard Max.
tread
tread
tread tread
AG tire
740mm 890mm
740mm
890mm
(29.1 in.) (35.0 in.) (29.1 in.) (35.0 in.)
ES
tire
790mm
840mm nOmm 865 mm
(31.1in.J
(33.1 in.) (30.3 in.) (34.1 in.)
Rear wheel
tightening torque. . . . . . .. 12.0 ~ 13.5 kg-m
(86.7 ~ 97.5 ft-Ib)
t
t
i
90mmfJomm
740 mm 890 mm (31.1 in.) (33.1 in.)
(29,1 in,) (35,0 in,)
,
,
AG/R AG/Max. R ES/R ES/Max. R
fr
$;
f
70mmm:65mm
740 mm 890 mm (30,3 in,) (34.1 in.!
(29,1
In,) (35,0 In,)
,
,
AG/R AG/Max. R ES/R ES/Max. R
A CAUTION
1. Avoid widening front tread of the 2 and 4-wheel
drive
tractor by switching the right and left front
tires as this may cause serious troubles on the
steering linkage.
2. Check at frequent intervals to make sure that the
rear and front wheel are tightened securely to
specified torque and that the axle housing and gear
case
are secured each other to specified torque.
REAR WHEEL INSTALLATION
Make sure that rear tires are mounted so that the lugs on
the tire form the staggered V's in series as viewed from the
front of the tractor.
BALLAST WEIGHT
The slipping not only damages the tire but also results
in working inefficiency and greater fuel consumption.
Slipping, therefore, must be minimized as much as possible.
For that purpose, ballast weights are available as optional
equipment. It is recommended that the tractor be provided
with ballast weights when working in the place where
slipping is likely to occur. The ballast weights can be
attached on rear wheel discs and the front of the chassis.
Ballast
can also be applied by putting water into the tires
instead of using the ballast weights. For this operation, pay
particular attention to the temperature and air pressure.
In cold weather where the temperature drops below O°C
(32°F), use water with antifreeze and never fill the tire
with only water. It is of course possible for you to employ
a combination of water in the tire and ballast weights.
Consult your dealer concerning the water injector and
method of injection.
Rear wheel weight: 2-WD and 4-WD AG & ES
33 kg (72.8Ib) x 2 = 66 kg (145.5 Ib)
Chassis
weight: 2-WD and 4-WD
20 kg (44.1 Ib) x 1 = 20 kg (44.1 Ib)
TIRE PRESSURE
Tire pressure should be checked frequency. Either too
high or too low pressure results in deterioration of the
tire. To properly maintain the tires, make sure that the
tire pressure is checked at least once a week.
AG
ES
AG
ES
Tire size
Ply
Std. pressu re
Valve type
Front 2-WD
4.00-9
4
2.0 kg/em
2
TR-13
(28.4 psi)
Front 4-WD
5-12
4
2.0 kg/em
2
TR-13
(28.4 psi)
Rear 2
& 4-WD
8-16
4
1.0 kg/em
2
TR-15
(14.2 psi)
Front 2-WD
18x7.00-8
4
2.0 kg/em
2
TR-413
(28.4 psi)
Front 4-WD 6-12
4
1.5
kg/em'
TR-13
(21.3 psi)
Rear 2
& 4-WD
9.5-16
4
1.0 kg/em
2
TR-15
(14.2 psi)
Tire size
Ply
Std. pressure
Valve
type
Front 2-WD 4.50-10 4
2.0 kg/em
2
TR-13
(28.4 psi)
Front 4-WD
5-12
4
2.0 kg/em
2
TR-13
(28.4 psi)
Rear 2
& 4-WD 8-18
4
1.0
kg/em'
TR-218A
(14.2 psi)
Front 2-WD 20x8.00-10 4
1.5 kg/em
2
TR-413
(21.3 psi)
Front 4-WD
6-12
4
1.5 kg/em
2
TR-13
(21.3 psi)
Rear 2
& 4-WD 9.5-18 4
1.0 kg/em
2
TR-218A
(14.2 psi)
NOTE
Air pressure of the tires must be changed according to
the loading weight on the tires. For more details, please
call
and talk with local dealer.
-16 -
