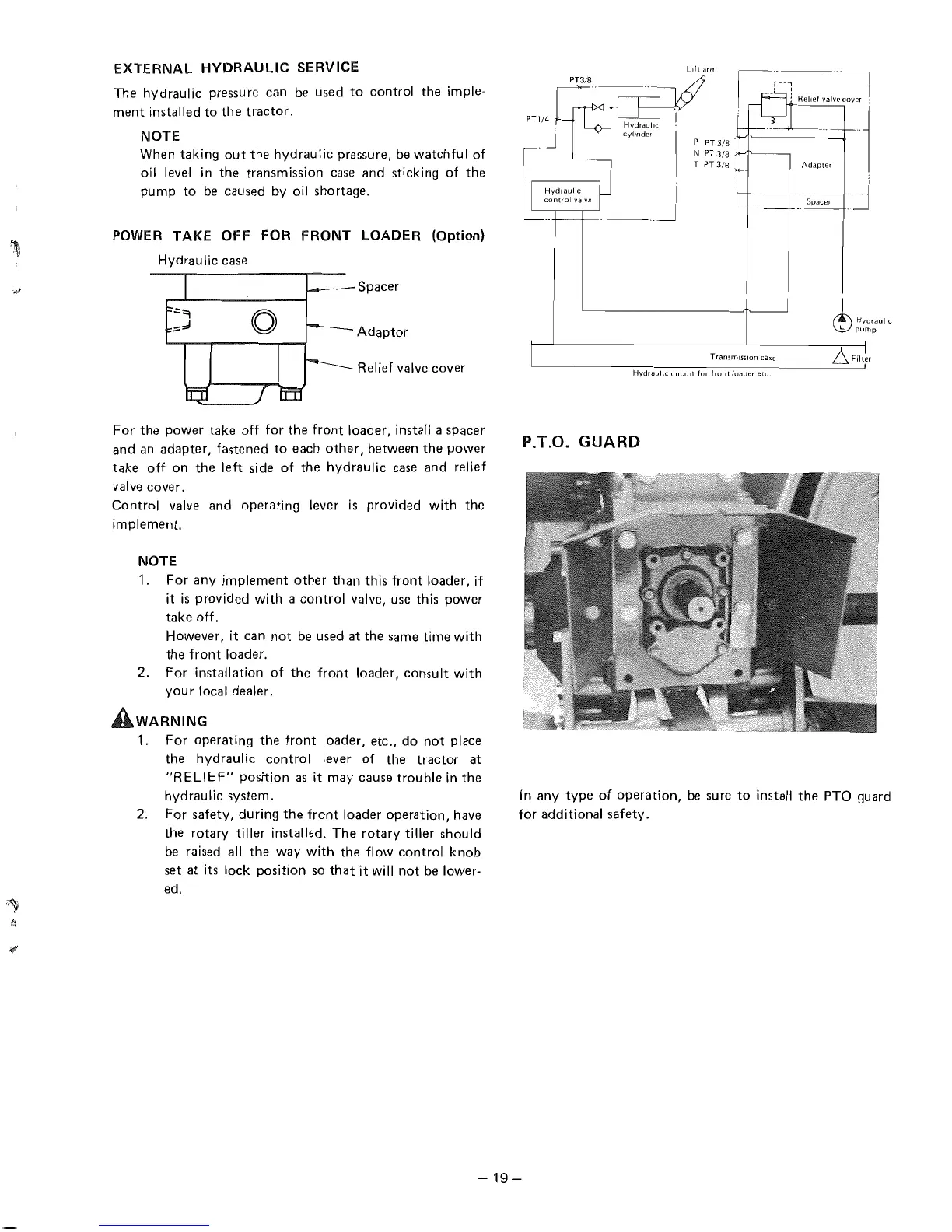

EXTERNAL HYDRAULIC SERVICE
The hydraulic pressure can be used to control the imple-
ment installed to the tractor.
NOTE
When taking
out the hydraulic pressure, be watchful of
oil level in the transmission case and sticking of the
pump to be caused by oil shortage.
POWER TAKE OFF FOR FRONT LOADER (Option)
Hydraulic case
...... _-Spacer
,....-IL----:.---I
Adaptor
Relief valve cover
For the power take off for the front loader, install a spacer
and an adapter, fastened to each other, between the power
take off on the left side of the hydraulic case and relief
valve
cover.
Control valve and operating lever is provided with the
implement.
NOTE
1.
For any implement other than this front loader, if
it
is provided with a control valve, use this power
take off.
However, it can
not be used at the same time with
the front loader.
2. For installation of the front loader, consult with
your local dealer.
AWARNING
1. For operating the front loader, etc., do not place
the hydraulic control lever of the tractor at
"R ELI E F" position as it may cause trouble in the
hydraulic system.
2. For safety, during the front loader operation, have
the rotary tiller installed. The rotary tiller should
be raised all the way with the flow control knob
set at its lock position so that it will not be lower-
ed.
PTI/4
i
J
I I HydrauliC J'
l:=~~ntrol valve .. ~~_,.
Lift arm
P PT 3/8
N PT3/8 ~-~
T PT 3/8
TransmiSSion case
Hydraulic
CirCUit for front loader etc.
P.T.O. GUARD
Adapter
Spacer
In any type of operation, be sure to install the PTO guard
for
additional safety.
-19 -
