－5－
For the safety, please make sure to carry the sewing machine head by more than two people.
Caution
3-8 Installation of the oil pan
Insert the oil pan (NO.1) which is enclosed in the accessory box. And settle to the table top by
the staples(NO.2).

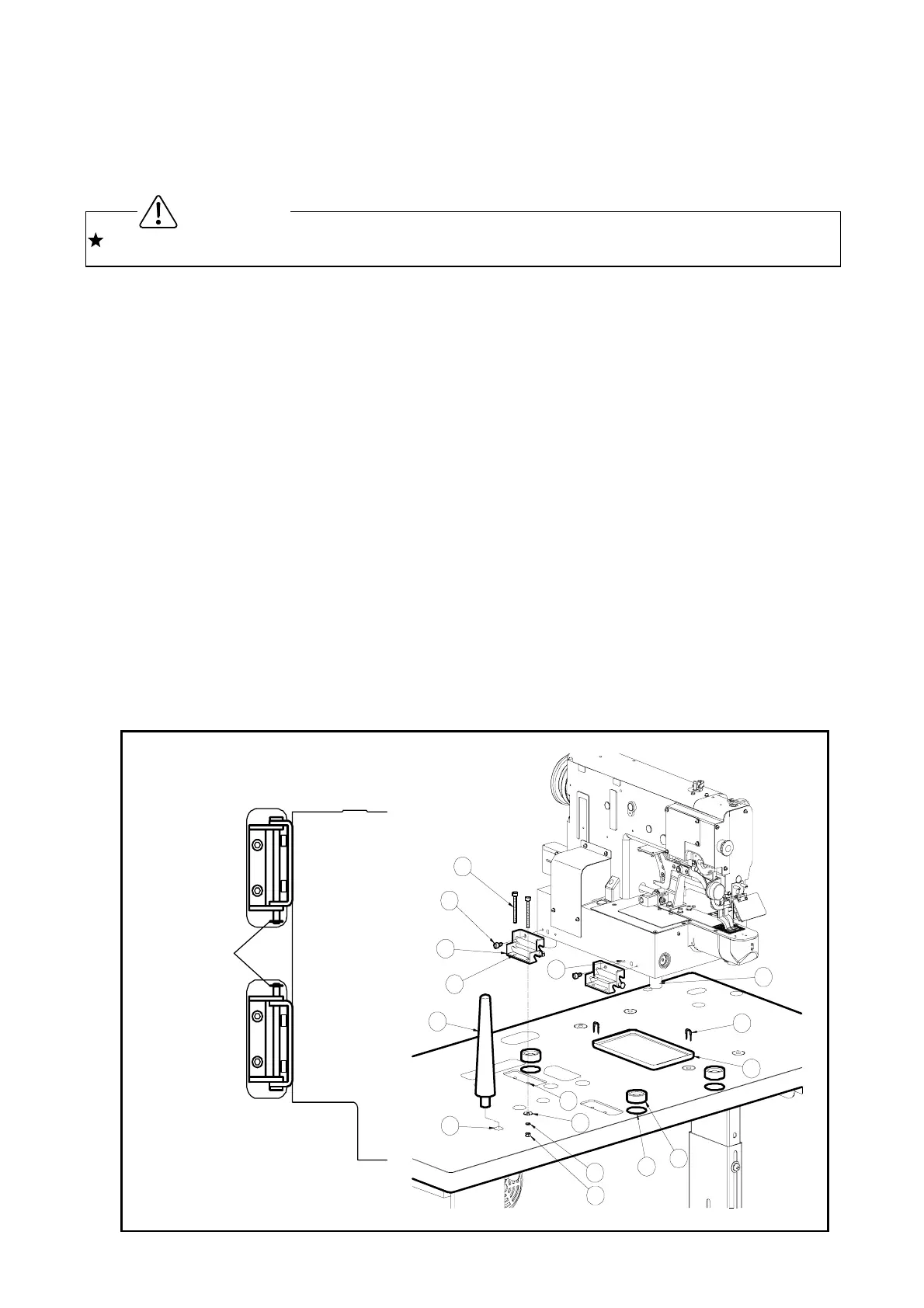

3-9 Installation of the sewing machine head
(1) Make sure to hold the machine table with the caster stopper.
(2) Fit the rubber cushion pads (NO.3) into the each hole (NO.4) on the tabletop. The rubber
cushion pads (NO.3) are enclosed in the accessory box.
(3) Put the sewing machine head on the table top and set the each leg (NO.5) to the each
rubber cushion pad (NO.3)
(4) Attach two hinges (NO.6) temporarily to the screw hole (NO.7) on the left side surface of
the machine head by the bolt (NO.8).
At this time, take notice that the each direction of two hinges (NO.6) are set correctly as
shown in below figure.
All these parts are enclosed in the accessory box.
(5) Fit the screw holes (NO.10) of the hinges (NO.6) to the bolt setting holes (NO.9) on the
table top then, pass the bolt (NO.11) through these holes and fasten the bolt (NO.11) to fix
the hinges (NO.6) with the flat washers (NO.12), the spring washers (NO.13) and the nuts
(NO.14).
(6) Fasten firmly the Bolt (NO.8), which set the hinges (NO.6) temporarily at above procedure
(4) then, fix the hinges (NO.6) perfectly.
(7) Insert the headrest (NO.15) into the hole (NO.16) on the tabletop
10
6
9
12
14
13
3
4
16
15
5
1
2
8
11
7
E 型止め輪
ミシン前側
To Next Page
