－8－

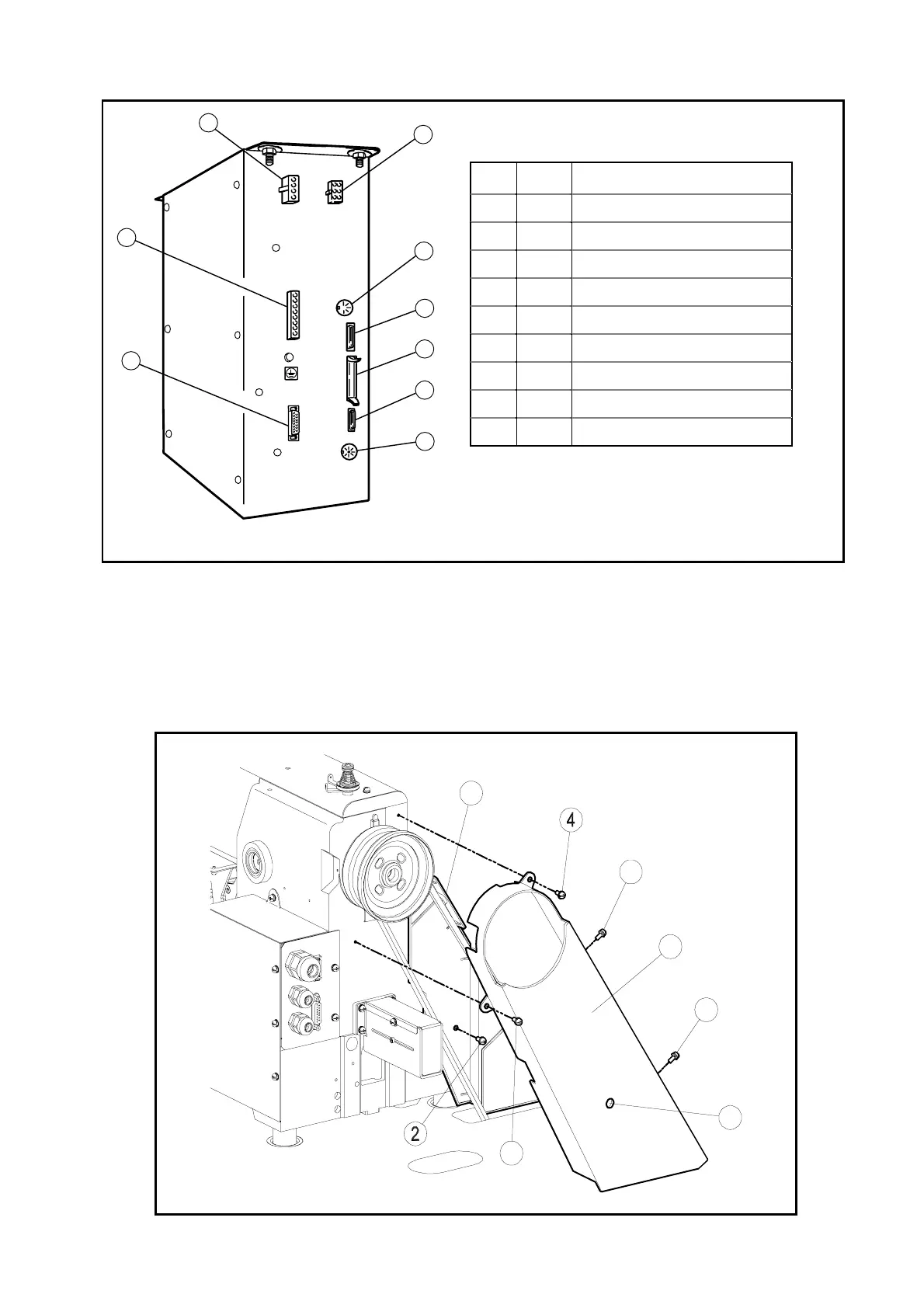

< Back side view of the Control box >
Fig Con Connect with
1 A Main motor cable
2 B Power supply cable
3 C Stepping motor cable
4 D Solenoid output cable
5 E RS-232C (optional use)
6 F Operation panel cable
7 G Extension I/O cable
8 H Input signal cable
9 I Foot switch cable
3-12 Installation of the belt cover
(1) Put the small belt cover (NO.1) on the sewing machine head with the setscrew (NO.2)
temporally.
(2) Put large belt cover (NO.3) with the setscrews (NO.4, 5, 6, 7).
(3) Fasten these the setscrew (NO.2) securely.
All the necessary parts are enclosed in the accessory box.
1
2
3
4
5
6
8
7
9
7
8
5
3
6
1
