Mitsubishi Q00CPU User Manual

6
FUNCTIONS
6.7 Q Series Compatible Module Input Response Time Selection (I/O Response Time)
6 - 37
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication using built-in Ethernet ports of CPU module
8
Communication with Intelligent Function Module

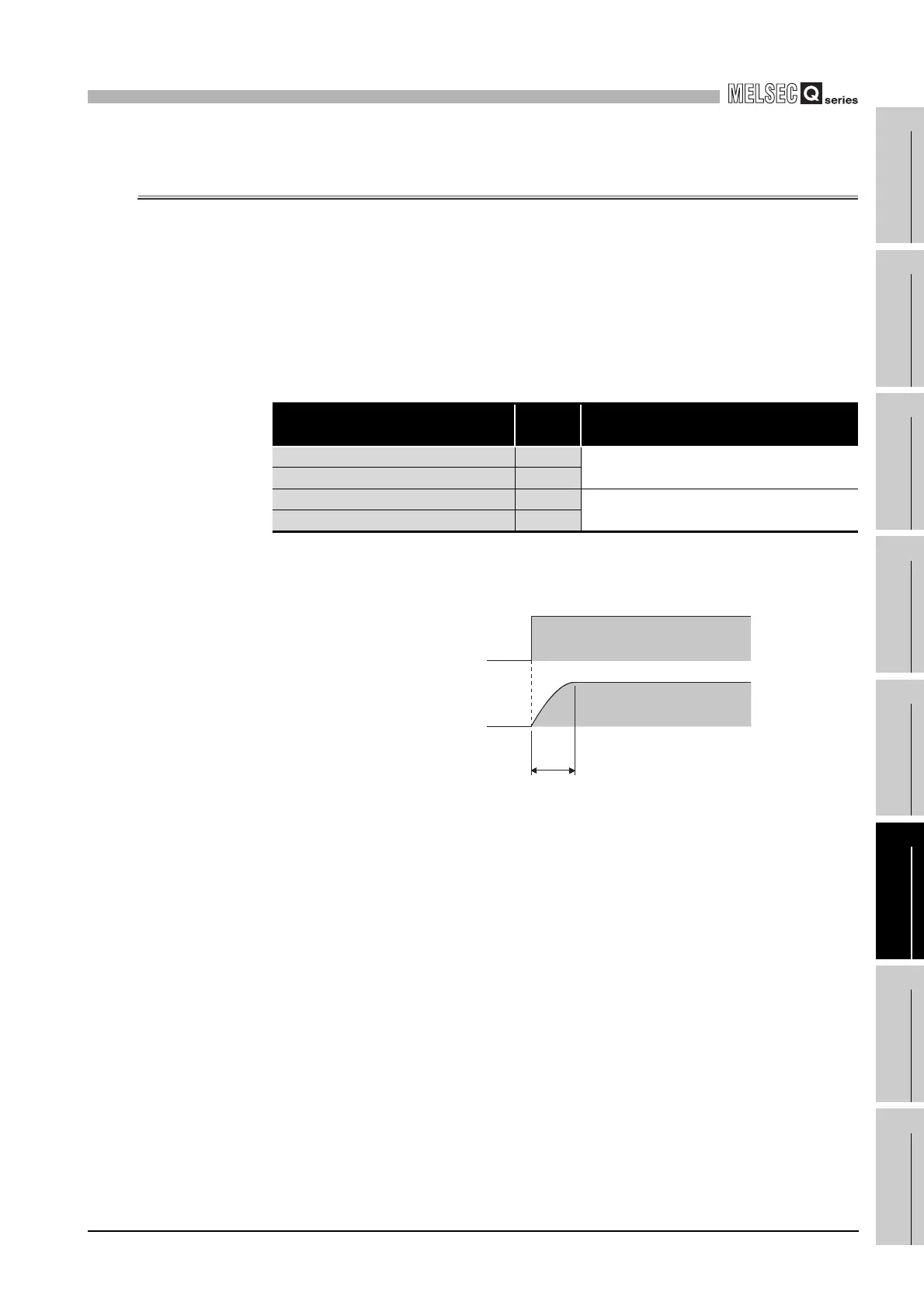

6.7 Q Series Compatible Module Input Response Time Selection
(I/O Response Time)
(1) Input response time selection
This function changes the input response times of each Q series corresponding
module.
Table6.14 indicates the modules of which input response time can be changed and
the applicable setting times.
The above Q series corresponding modules import external input in the set input
response time.
Table6.14 Modules of which input response time can be changed
Module of which input response
time can be changed
Type Applicable setting times
Input module Input 1ms,5ms,10ms,20ms,70ms
(Default: 10ms)
I/O combined module I/O Mix
High-speed input module Hi Input 0.1ms,0.2ms,0.4ms,0.6ms,1ms
(Default: 0.2ms)
Interrupt module Interrupt
Figure 6.22 Input response time
OFF
OFF
ON
ON
External input
Q series compatible
module
Input response time
