10.4 Link direct device
(1) Definition
The link direct device is a device to directly access the link device in the CC-Link IE
controller network module or MELSECNET/H network module.
The CPU module can directly write/read data to/from the link device in the CC-Link IE
controller network module or MELSECNET/H network module using the sequence
program regardless of the link refresh.
(2) Designation method and application example of link direct device
(a) Designation method
Link direct devices are designated by network No. and device No.
(b) Application example
For link register 10 (W10) of network No.2, the designation would be "J2\W10"
• For a bit device (X, Y, B, SB), digit designation is necessary.
Designation example : J1\K1X0, J10\K4B0

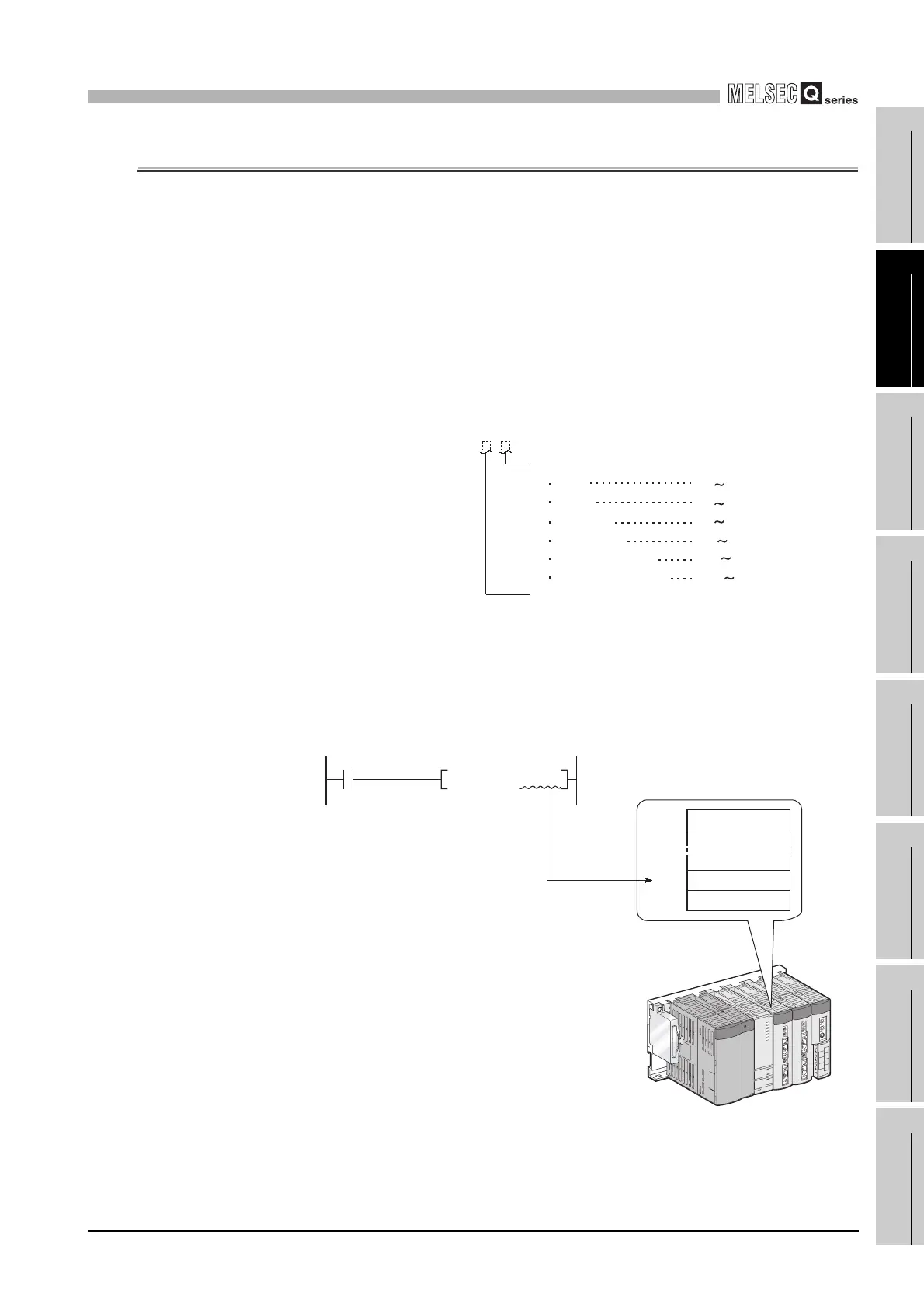

Figure 10.47 Link direct device designation method
Figure 10.48 Link direct device application example
Designation method: J \
Device No.
Input
Output
Link relay
Link register
Link special relay
Link special register
Network No.
*
*
: Basic model QCPU: No.1 to 239
High Performance model QCPU,
Process CPU, Redundant CPU
Universal model QCPU: No.1 to 255
X0
Y0
B0
W0
SB0
SW0
K100 J2\W10MOVP
LW 0
LW10
Network modules at
network No.2
