Mitsubishi Q00CPU User Manual

6
FUNCTIONS
6.24 Serial Communication Function
6 - 179
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication using built-in Ethernet ports of CPU module
8
Communication with Intelligent Function Module
6.24 Serial Communication FunctionNote82Note83
(1) Definition
The serial communication function is designed to make communication in the MC
protocol
*1
by connecting the RS-232 interface of the CPU module and personal
computer, display device or the like by an RS-232 cable.
The serial communication can be executed by the Q00CPU or Q01CPU only.
(The other CPU modules do not support the serial communication function.)
The following explains the specifications, functions and various settings needed to
make communication with a personal computer, display device or the like using the
serial communication function.
* 1 : The MC protocol is the abbreviation of the MELSEC communication protocol.
The MELSEC communication protocol is a name of the communication method to make access
from the mating equipment to the CPU module in accordance with the communication procedure
of the Q series PLC (such as serial communication modules, Ethernet modules)
Refer to the following manual for the MC protocol.
Q Corresponding MELSEC Communication Protocol Reference Manual
POINT
1. The CPU that can make communication with a personal computer, display
device or the like using the serial communication function is only the CPU
module that is connected with the personal computer, display device or the
like.
Communication cannot be made with the other station of MELSECNET/H,
Ethernet or CC-Link via the CPU module that is connected with the personal
computer, display device or the like.
2. The serial communication function is not used for connection of GX
Developer or GX Configurator and CPU module.
Note82
Note83

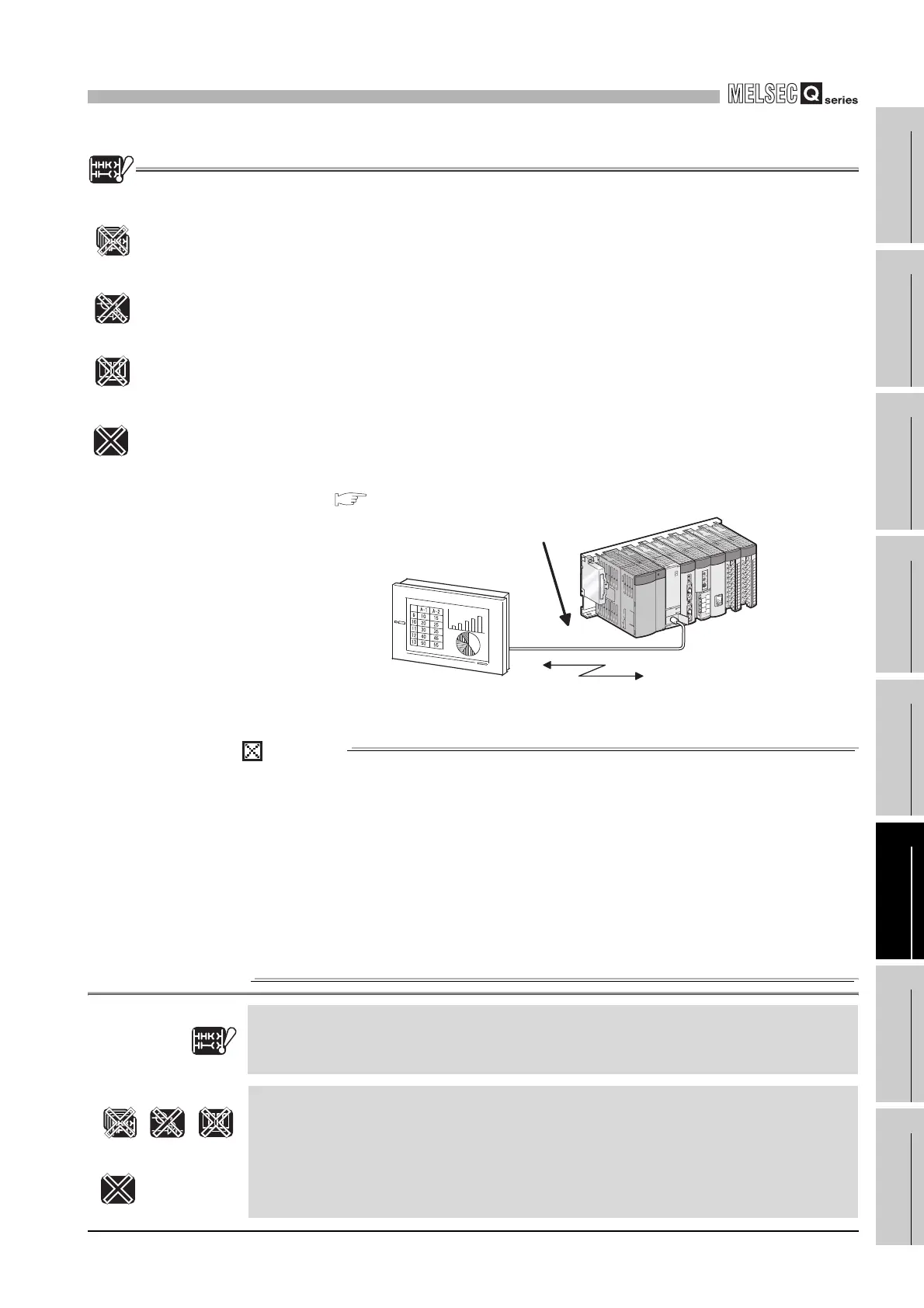

Figure 6.106 Communication with personal computer or display
Basic
Note6.80
High
Performance
Process
Redundant
UD
Universal
Note6.81
Note6.81
Note6.81
Note6.81
The Q00JCPU does not support the serial communication function.
Basic
Note6.80
The High Performance model QCPU, Process CPU, Redundant CPU and Universal model
QCPU do not support the serial communication function.
High
Performance
Process
Redundant
UD
Universal
Note6.81
Note6.81
Note6.81
Note6.81
Personal computer,
display device
RS-232 cable
Communication in MC protocol
