12.1.3 Procedure for writing program
This section explains the procedure for writing the parameters and program created by GX
Developer to the Basic model QCPU.
This section explains the procedure for writing a program to the program memory (
Section 5.1.2).
When storing the program into the standard ROM and executing boot run, perform the
procedure given in this section, and then carry out the procedure given in Section 12.1.4.
Procedural steps shown in boxes are performed at the GX Developer, and those
shown in boxes are performed in the Basic model QCPU.
............

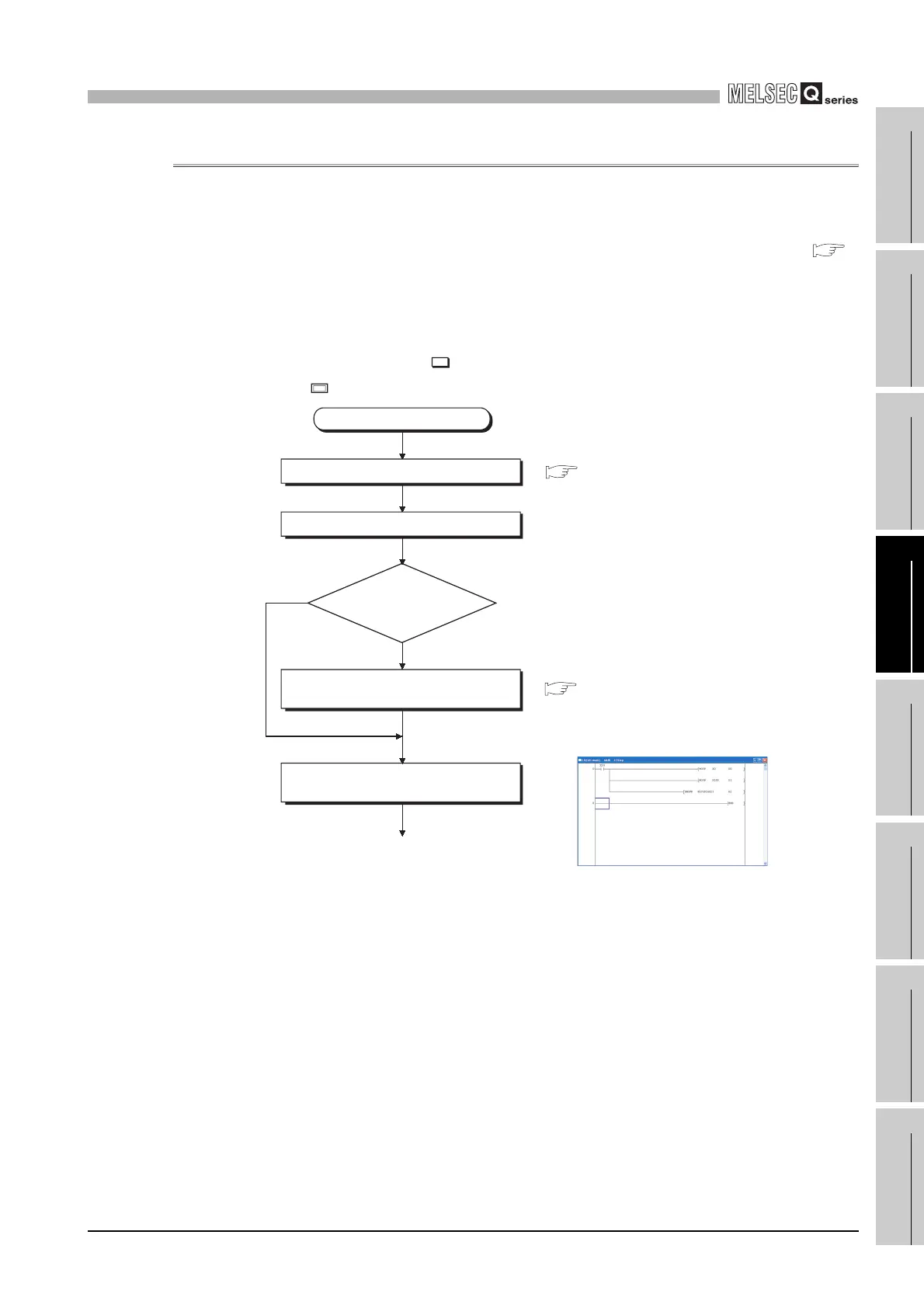

Start
Start GX Developer.
Set the project.
Change the number of device points in
device setting of PLC parameter.
Create a program to be executed in the
CPU module.
GX Developer Operating Manual
Section 9.2
Ladder (write) screen
Do you
change the number
of device points
used?
NO
YES
1)
Section 10.2
To Next Page
