Mitsubishi Q00CPU User Manual

7
COMMUNICATION USING BUILT-IN ETHERNET
PORTS OF CPU MODULE
7.2 GX Developer/GOT Connection
7 - 3
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication using built-in Ethernet ports of CPU module
8
Communication with Intelligent Function Module
7.2 GX Developer/GOT Connection
The following describes the setting method for connecting the Built-in Ethernet port QCPU
with GX Developer and/or GOT.
POINT
1. The Built-in Ethernet port QCPU can be connected directly with GX
Developer using one Ethernet cable. (Direct connection (simple connection))
The direct connection (simple connection) enables the QnUDE(H)CPU and
GX Developer to communicate without setting IP addresses. For details, refer
to Section 7.3.
2. For setting on the GOT side, refer to following manual.
GOT1000 Series Connection Manual
(1) Setting on the Built-in Ethernet port QCPU side
Setting on the Built-in Ethernet port QCPU side is described below.

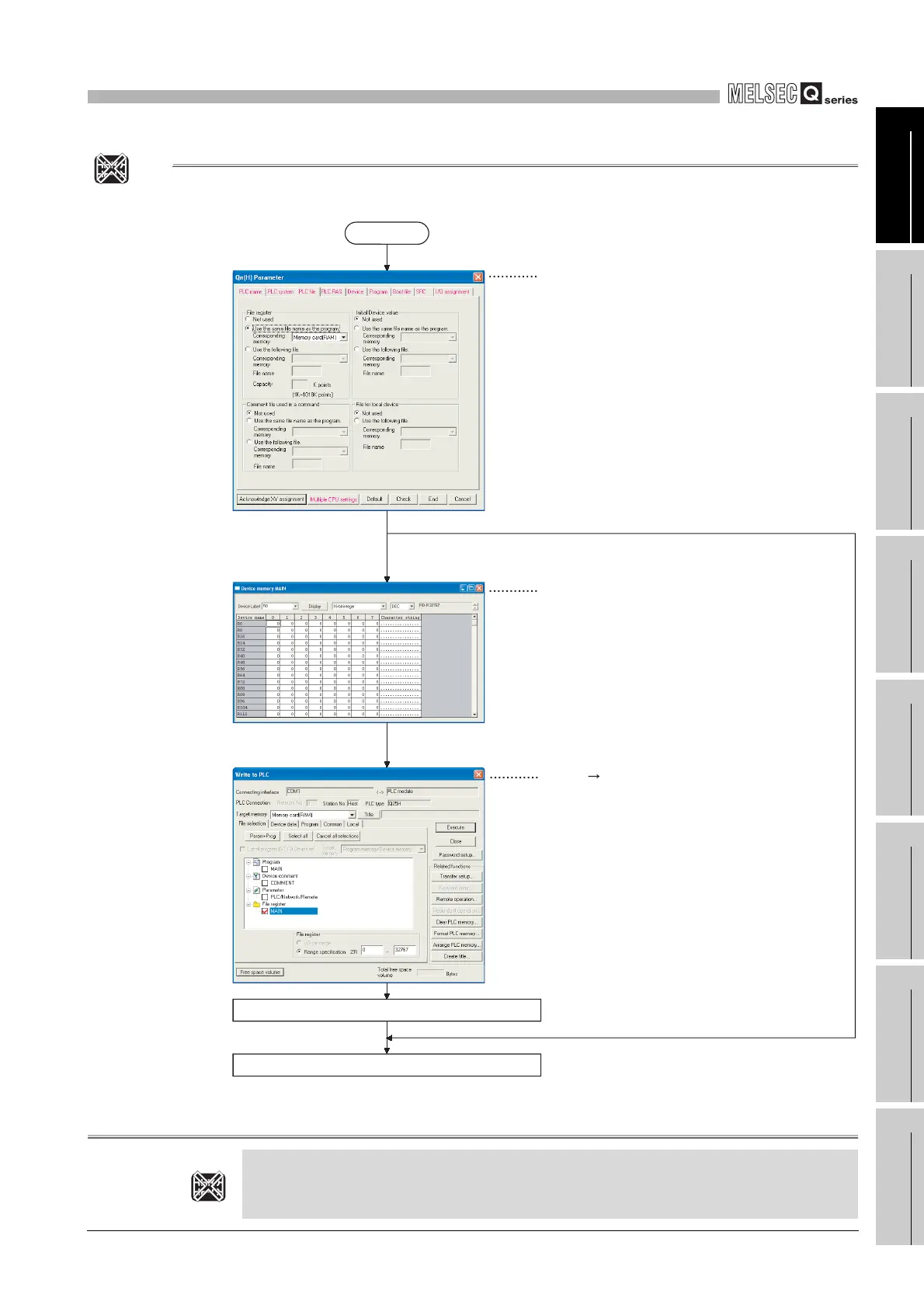

(a) Set the items on the Built-in Ethernet port tab of PLC parameter in GX
Developer as shown in Figure 7.3.

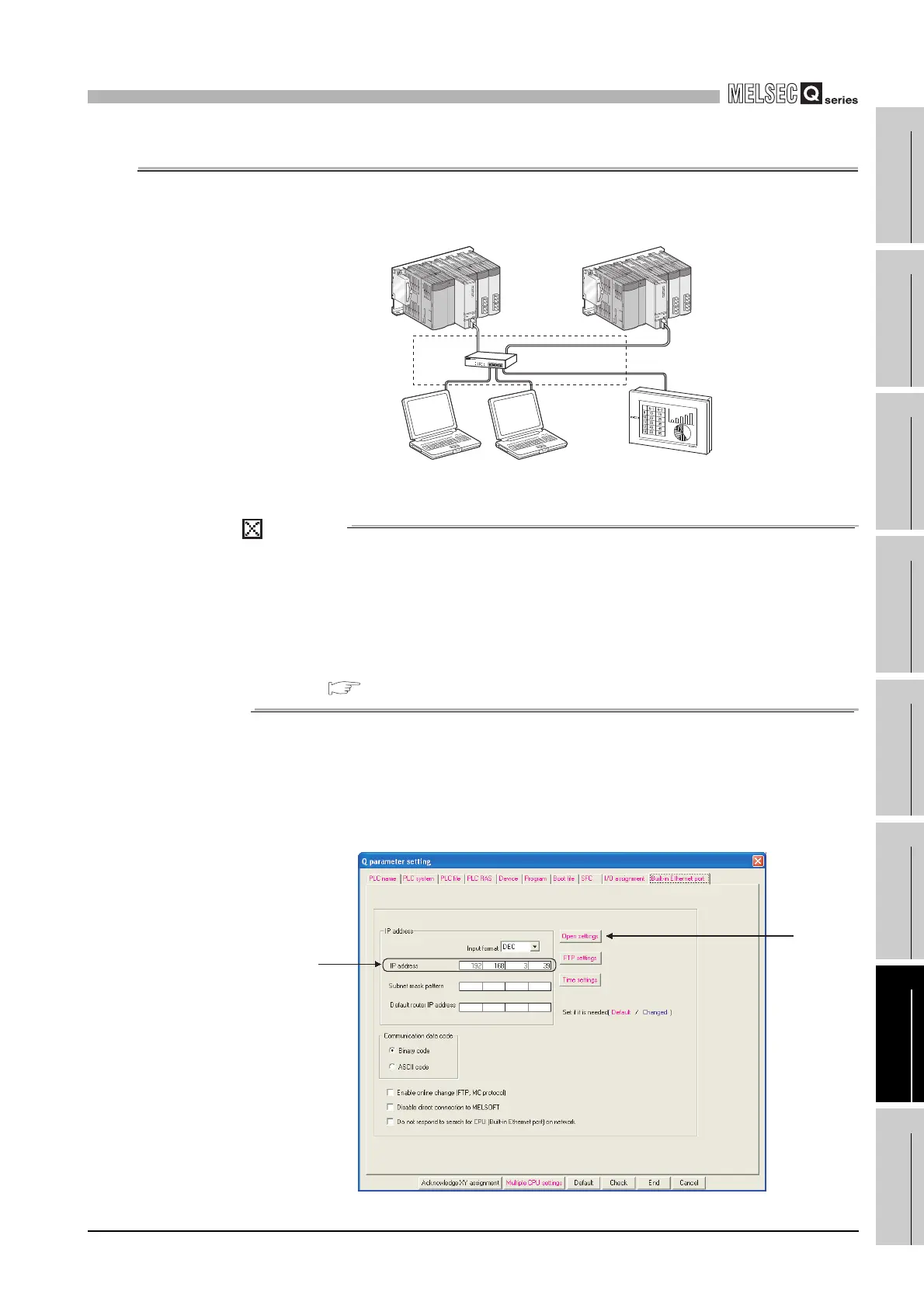

Figure 7.2 Connection example using hub
Figure 7.3 Built-in Ethernet port tab
GX Developer GX Developer GOT
Hub
Ethernet
1)
2
)
