PERFORMANCE SPECIFICATION
2.1 Basic model QCPU
2 - 1
1
Overview
2
Performance Specification
3

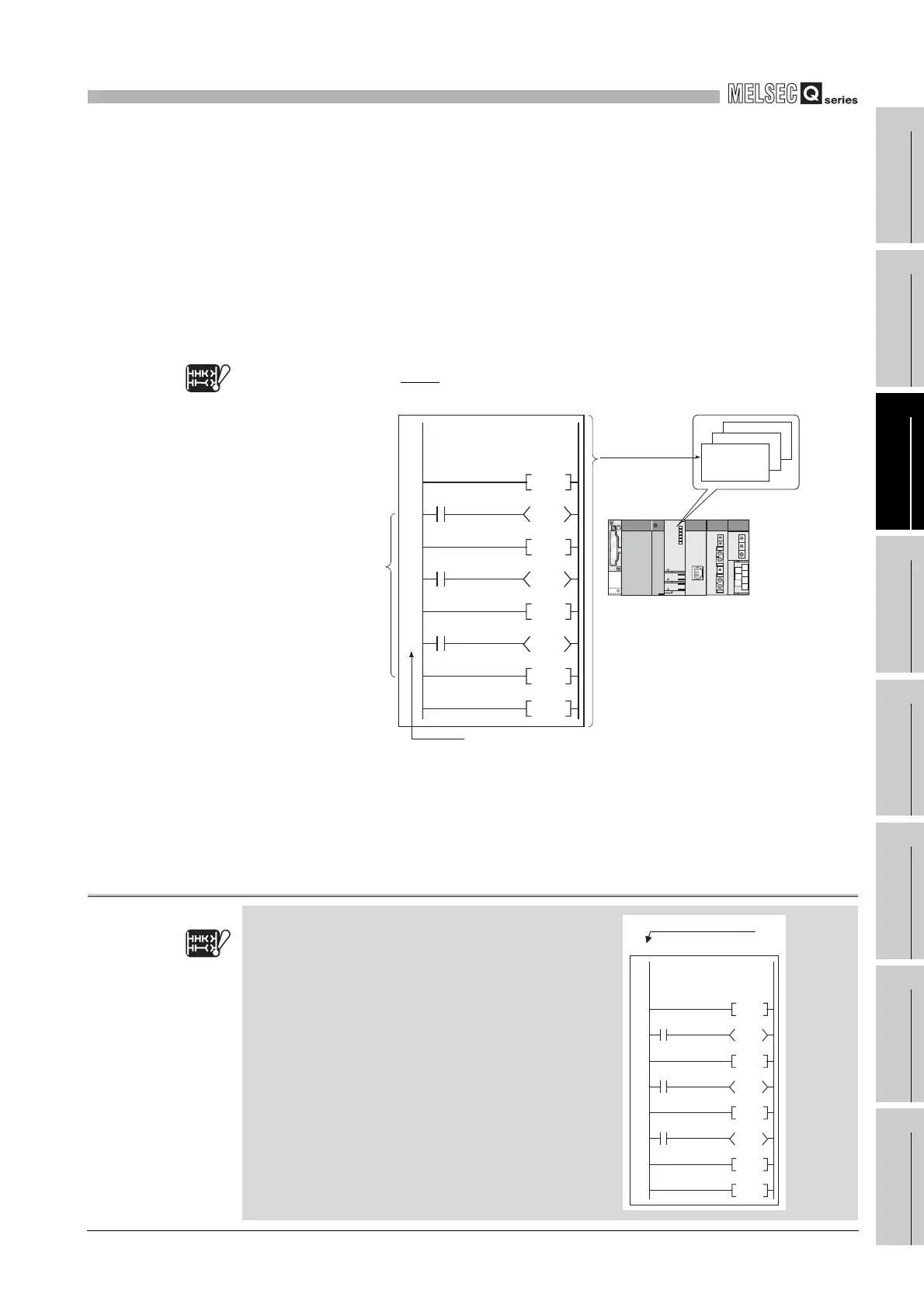

Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication using built-in Ethernet ports of CPU module
8
Communication with Intelligent Function Module
CHAPTER2 PERFORMANCE SPECIFICATION
The table below shows the performance specifications of the CPU module.
2.1 Basic model QCPU
*1 : The unit of the file size stored in the memory area varies depending on the CPU module. For the details, refer to the manual below.
Section 5.4.4
*2 : The maximum number of executable sequence steps is as shown below.(Program capacity) - (File header size (default: 34 steps))
For the details, refer to the manual below.
Refer to CHAPTER 5 for details of the program capacity and file.
*3 : The capacity has been increased due to the function upgrade of the CPU module. ( Appendix 4.1)
*4 : The CPU shared memory is not latched.
( QCPU User's Manual (Multiple CPU System)
The CPU shared memory is cleared by turning on the PLC or resetting the CPU module.
Table2.1 Performance Specifications
Item
Basic model QCPU
Q00JCPU Q00CPU Q01CPU
Control method Sequence program control method
I/O control mode
Refresh mode
(Direct access I/O is available by specifying
direct access I/O (DX , DY ).)
Program language
Sequence control
language
Relay symbol language, logic symbolic language,
MELSAP3 (SFC), MELSAP-L, function block, and structured text (ST)
Process control language ----
Processing speed
(sequence
instruction)
LD X0 200ns 160ns 100ns
MOV D0 D1 700ns 560ns 350ns
Processing speed
(redundant function)
Tracking execution time
(extended scan time)
----
Constant scan
(Function for keeping regular scan time)
1 to 2000ms (Setting available in1ms unit.)
(Setting by parameters)
Program capacity
*1, *2
8k steps
(32k bytes)
14k steps
(56k bytes)
Memory capacity
*1
Program memory
(drive 0)
58k bytes 94k bytes
Memory card (RAM)
(drive 1)
----
Memory card (ROM)
(drive 2)
----
Standard RAM
(drive 3)
0
128k bytes
*3
Standard ROM
(drive 4)
58k bytes 94k bytes
CPU shared memory
*3, *4
---- 1k bytes
