Motorola CM360 Service Manual

2-6 MAINTENANCE
6.2 Top Cover Removal

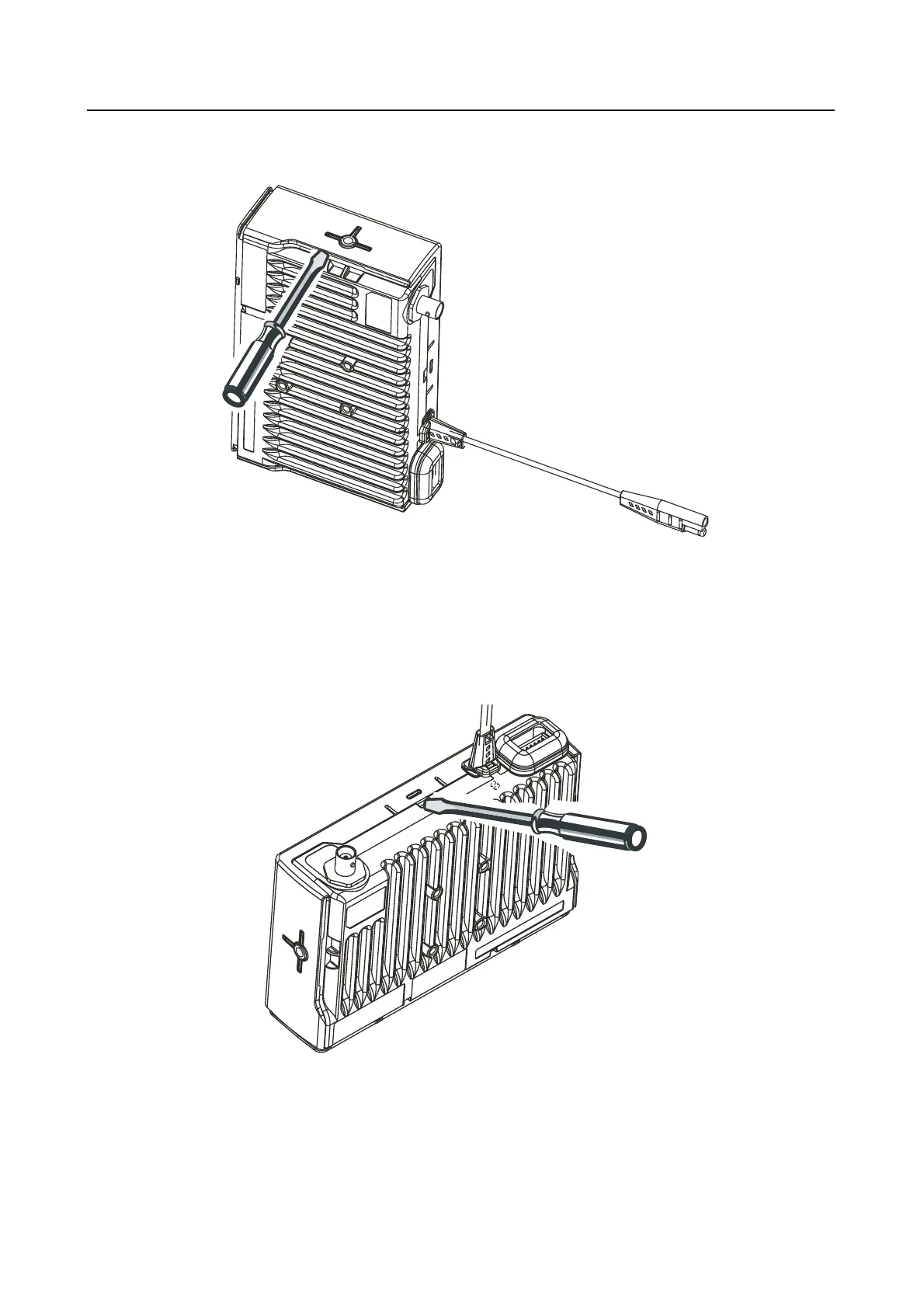

1. Place the radio in a vertical position as shown in Figure 2-4..
Figure 2-4 Top Cover Removal (Chassis Vertical).
2. Insert the flat screw driver near the ‘T’ and push the plastic cover up until it pops over the ‘T’
mount boss. Perform the same function on the ‘T’ location on the other side of the chassis.
3. Next place the radio in a horizontal position as shown in Figure 2-5 and insert the flat screw
driver into the slot to release the upper cover.
Figure 2-5 Top Cover Removal (Chassis Horizontal)
