Radio Disassembly - Detailed 2-7
6.3 Main Shield Removal
1. Insert the screw driver in the gap between the main shield and chassis (speaker cutout area)
and push the shield up. See Figure 2-6.
2. Lift the cover from the chassis.

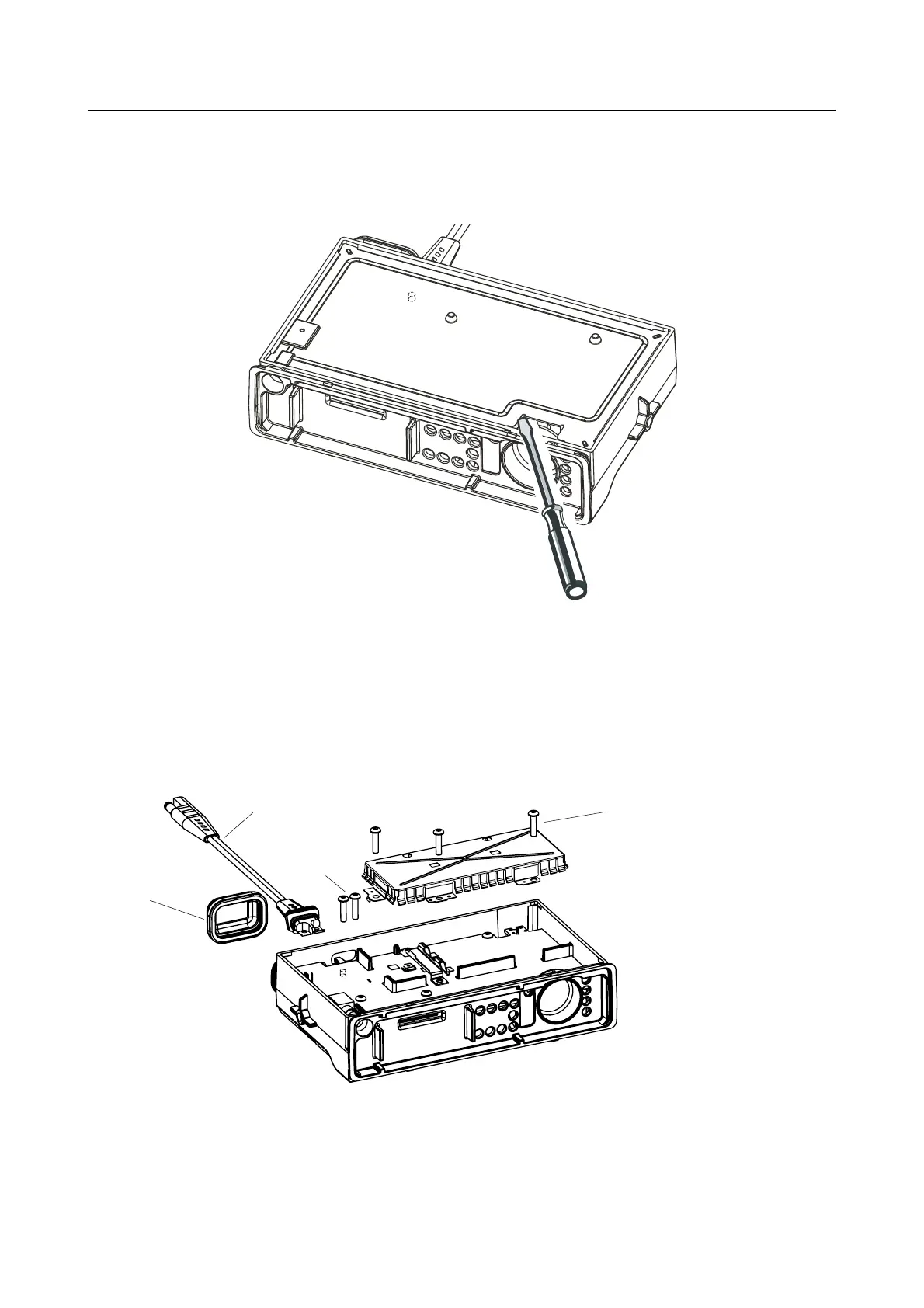

Figure 2-6 Main Shield Removal
6.4 PA Shield and DC Cable Removal
1. Remove the three screws that attach the PA shield to PCB, and remove the PA shield.
2. Remove the accessory Connector cap.
3. Remove the two screws that attach the DC power cable to the PCB and pull it out from the
side.
Figure 2-7 PA Shield and DC Cable Removal (for Radios with PA Clip)
PA Shield
Fixing Screws (3)
Accessory
Connector
Cap
DC
Cable
DC Cable
Fixing Screws
(2)
To Next Page
