2-18 MAINTENANCE
8.4 Control Head - CM160/CM360

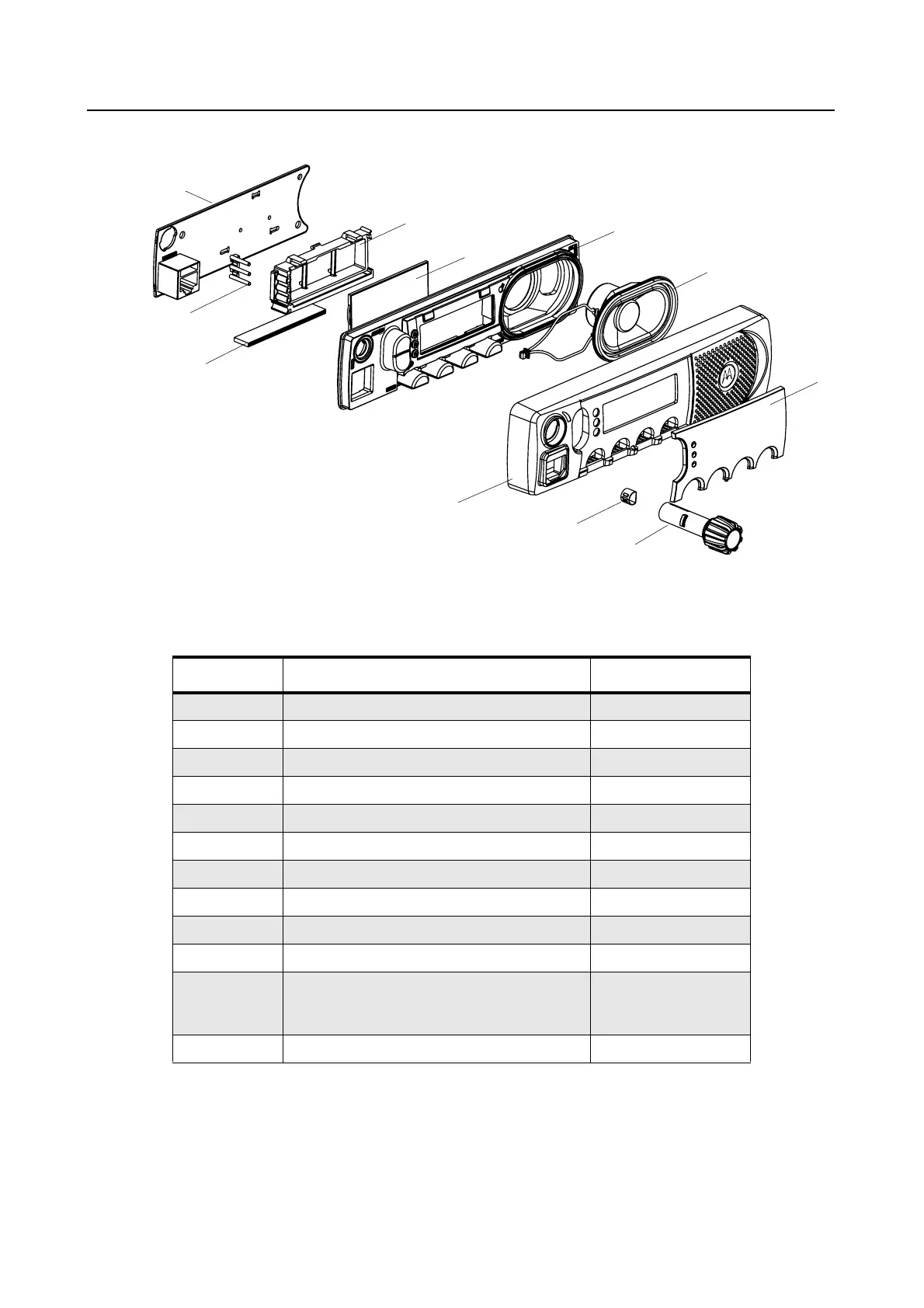

Figure 2-17 Control Head - CM160/CM360
Table 2-4 Control Head CM160/CM360 Parts List
Item no Description Part No.
1 Control Head PCB FCN5523A
2 Light Guide 6189624U01
3 Elastomeric Connector 2802619S03
4 LCD Holder 0789623U01
5 LCD 7202421H33
6 Keypad 7589340U01
7 Speaker 5005156Z02
8 Control Head Plastic 1589333U01
9 Knob Spring (part of Knob - item 10)
10 Knob 3689331U02
11 Lens:
CM160
CM360
6189339U06
6189339U01
12 Flat Cable (Not Shown) 3089305U01
