Chapter 4
RADIO TUNING AND PROGRAMMING
1.0 Introduction
This chapter provides an overview of the Customer Programming Software (CPS) and tuner
program designed for use in a Windows 98/ME/NT/2000 environment. A CPS/Tuner Installation
Manual (6866545D09) is included in this Product Manual.
Table 4-1 Software Installation Kits Radio Tuning Setup
2.0 CPS Programming/Flashing Setup with RIB
The CPS programming setup, shown in Figures 4-1 is used to program and flash the radio using the
Radio front Telco connector.
NOTE
Refer to the CPS on-line help files for programming procedures.
Description Kit Number
5-Tone/MDC CPS (includes Global Tuner) GMVN5067_
Software Installation Manual
6866545D09_

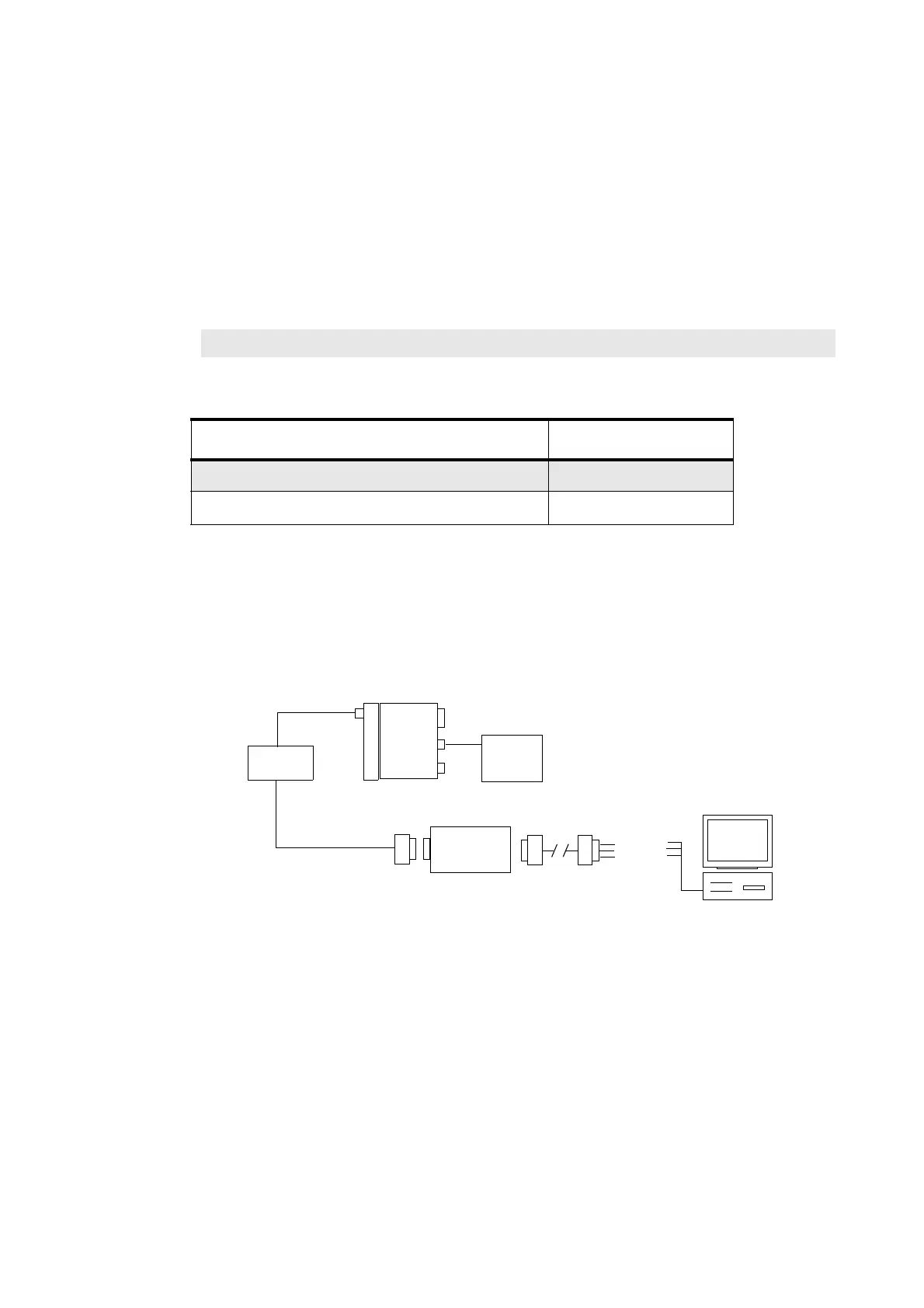

Figure 4-1 CPS Programming/Flashing Setup with RIB
RIB
RLN-4008
Rx
Gnd
Data
Tx Data
Cable 3080369B72 (9 PIN)
DB15
Cable 3080369B71 (25 PIN)
Power
Supply
+13,2VDC
Programming
3080070N01
Cable
DB25
Radio
DC
RF
ACC
FKN8096
8-pin Telco
10-pin Telco
FKN8096
Data =Programming
Boot = Flashing
