VHF 25–45 W Band 2 PCB 8486487Z03-B / Schematics 4-3

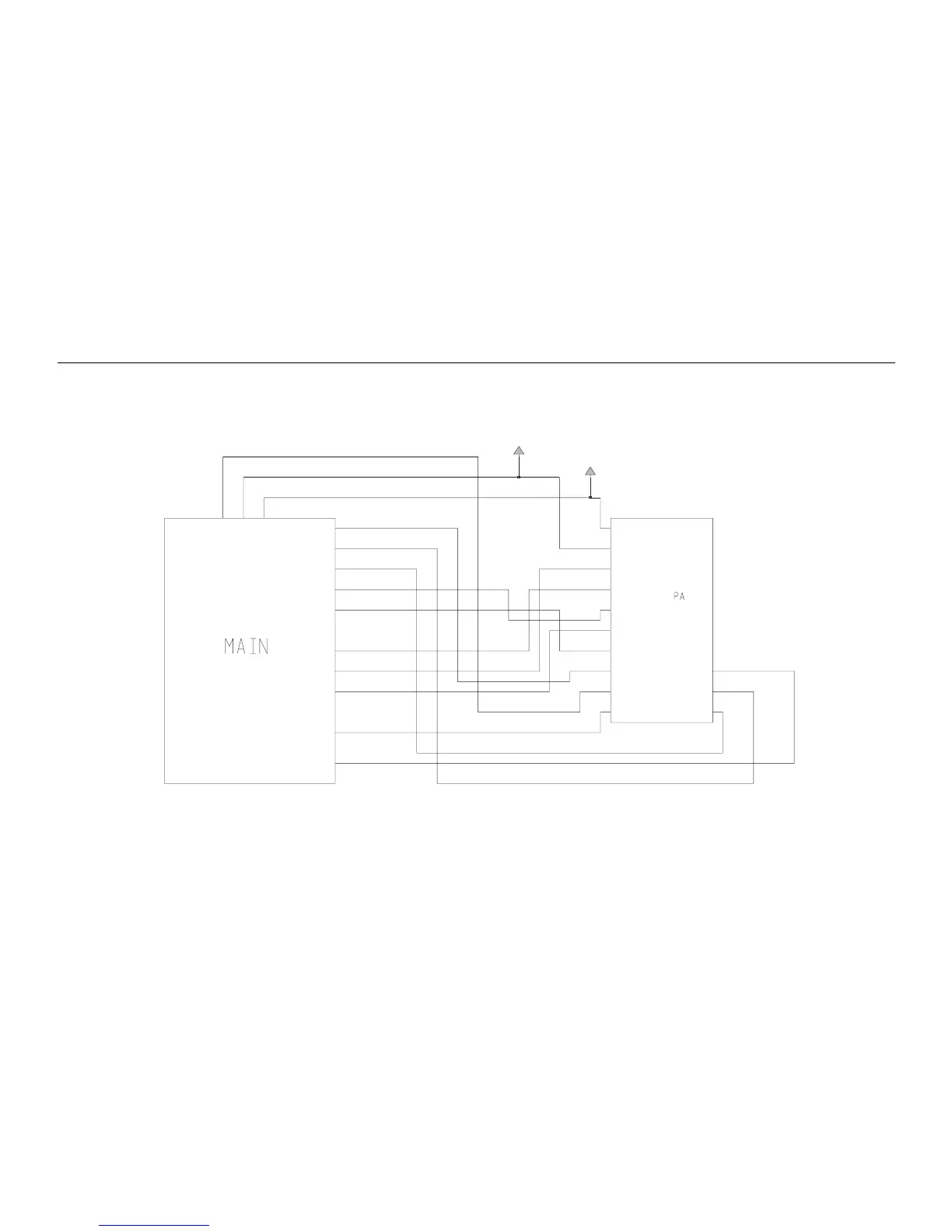

2.0 VHF 25–45 W Band 2 PCB 8486487Z03-B / Schematics
FILT_SW_B+
9V
COMP_B+
DET-VFWD
DET_VRVS
FILT_SW_B+
INTEGRATOR
PA_BIAS
PWR_SET
RX
RX_EN
TX_EN
TX_INJ
V_CTRL_DRIVER
9V
COMP_B+
DET_VFWD
DET_VRVS
FILT_SW_B+
INTEGRATOR
PA_BIAS
PWR_SET
RX
RX_EN
TX_EN
TX_INJ
V_CTRL_DRIVER
9V
VHF 2 (146–174 MHz) 25–45 W Interconnection between
Main Board and Power Amplifier Compartment
