Motorola RMU2040 User Manual

RADIO OVERVIEW
English
17

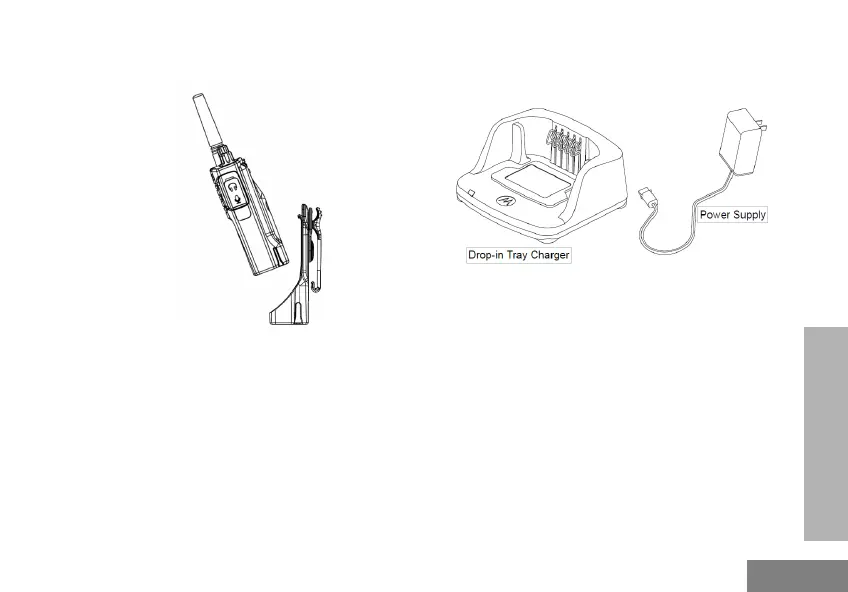

Holster
1.
Slide the radio into the base of the holster and
then press the radio against the back of the
holster until the top clips are inserted in the
top latches of the battery.
2.
To remove, detach the top clips of the holster
from the top latches of the battery and then
slide the radio up from the holster pocket.
Power Supply and Drop-in Tray Charger
The radio is equipped with one Drop-in Tray
Charger and one Power Supply with Adaptor.
For details, see “Chargers” on page 72.

Motorola RMU2040 Specifications

General

Frequency Band	UHF
Frequency Range	450-470 MHz
Channels	4
IP Rating	IP54
Range	Up to 250, 000 sq. ft. / 20 floors
Weight	8.6 oz (with battery)
Dimensions	4.5 x 2.2 x 1.5 in (115.6 x 57.6 x 38.6 mm)
