MSI 800 User Manual

2-5
Chapter 2 - Mainboard Hardware

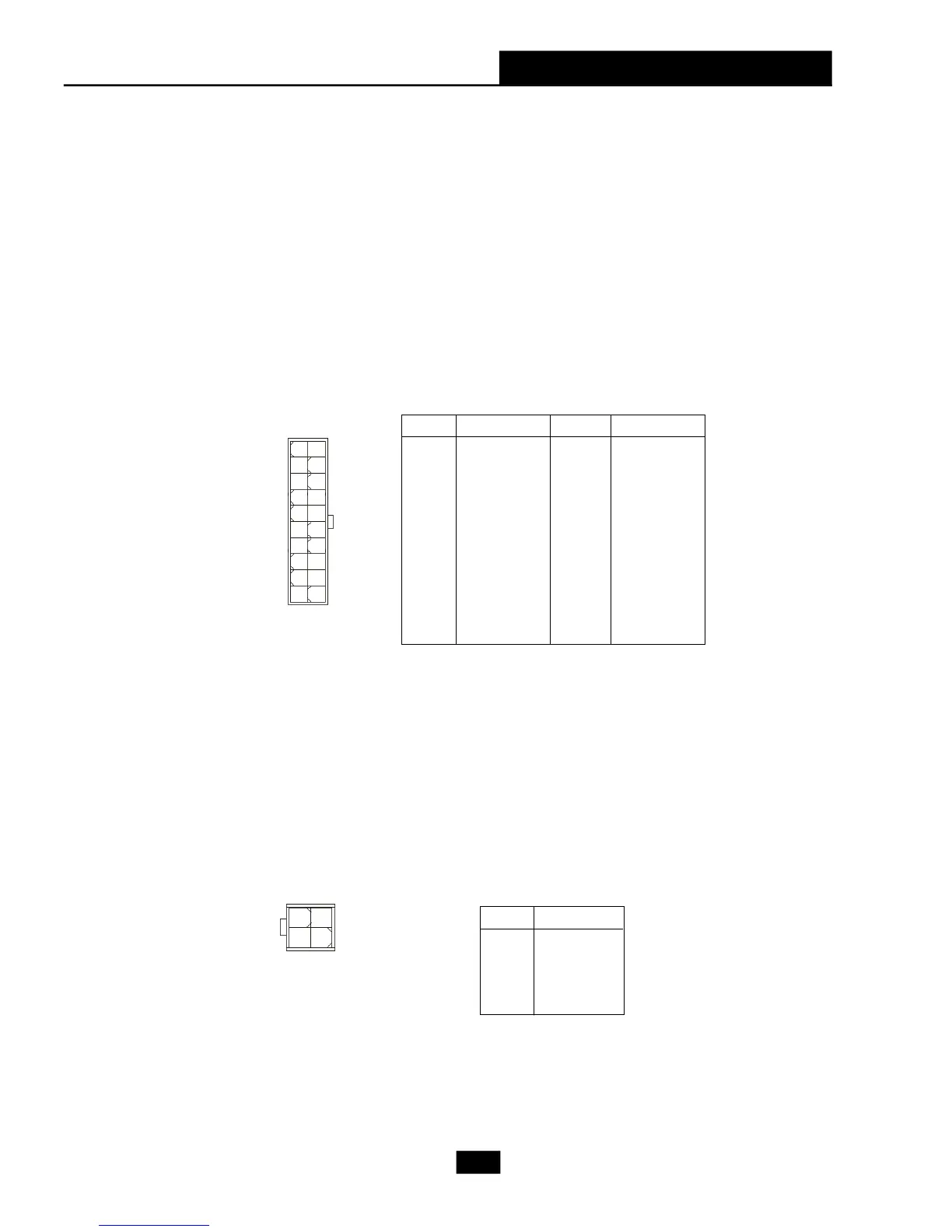

ATX 20+4-Pin Power Connector: ATX1
This connector allows you to connect to an ATX power supply. To con-
nect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down the
power supply firmly into the connector. The power connector supports instant
power on function which means that system will boot up immediately when the
power supply connector is inserted on the board.
This barebone provides you an additional 4-pin power supply cable for
connecting to the 24-pin power connector.
2.4 Power Supply
ATX1
10
1
20
11
PIN SIGNAL
11 +3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 +5V
20 +5V
PIN SIGNAL
1 +3.3V
2 +3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 PW_OK
9 5V_SB
10 +12V
ATX1 Pin Definition
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
JPW1
1
24
PIN SIGNAL
1 GND
2 GND
3 12V
4 12V
JPW1 Pin Definition
3
