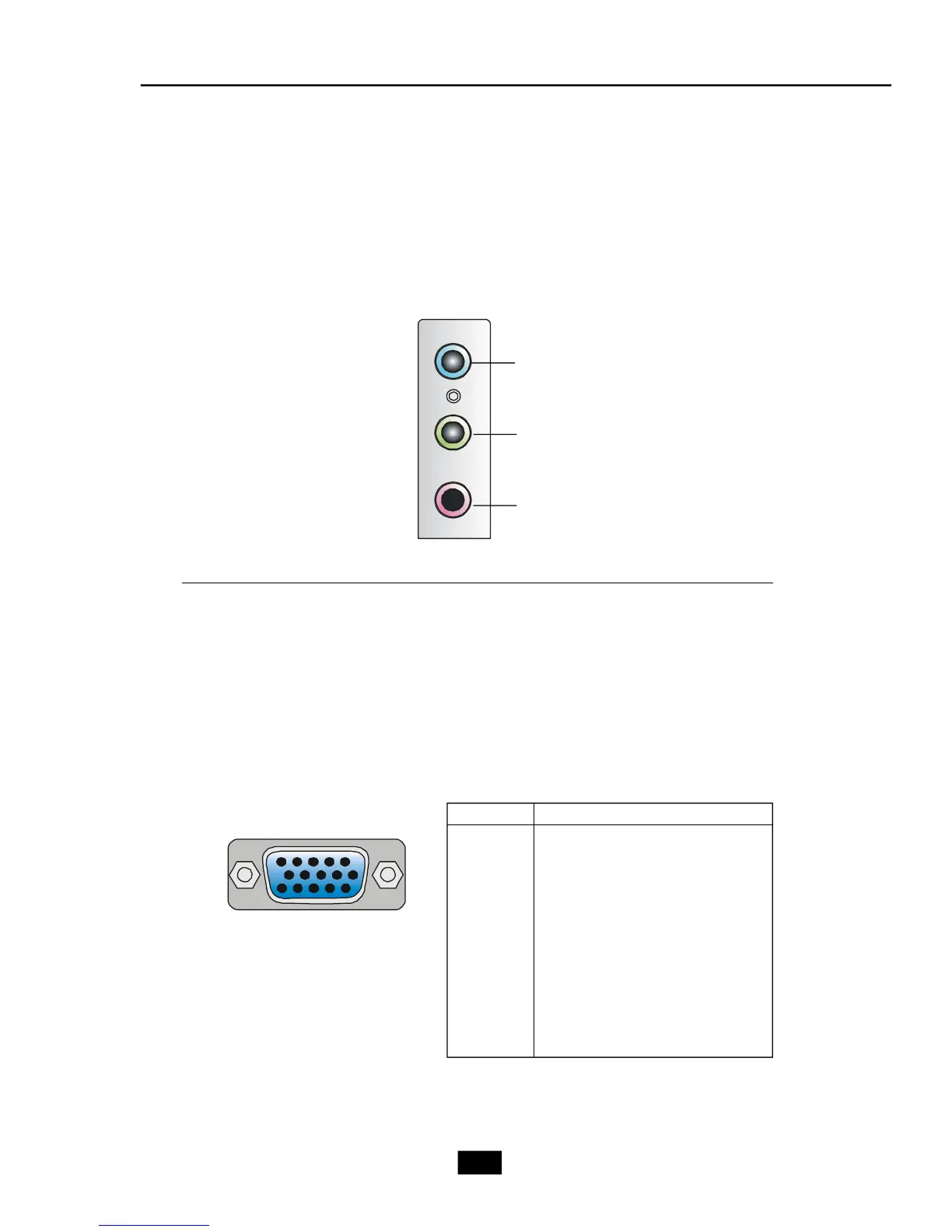

Audio Ports
Line Out is a connector for Speaker or Headphone. Line In is used for
external CD player, Tape player, or other audio devices. MIC is a connector for
stereo microphone.
Line Out
Line In
MIC-in
VGA Port
The mainboard provides one DB 15-pin female connector to connect a
VGA monitor.
DB 15-Pin Female Connector
5 1
15 11
VGA Port Pin Definition
PIN SIGNAL DESCRIPTION
1 Red
2 Green
3 Blue
4 Not used
5 Ground
6 Ground
7 Ground
8 Ground
9 Power
10 Ground
11 Not used
12 SDA
13 Horizontal Sync
14 Vertical Sync
15 SCL

MSI 800 Specifications

General

Brand	MSI
Model	800
Category	Desktop
Language	English
