19

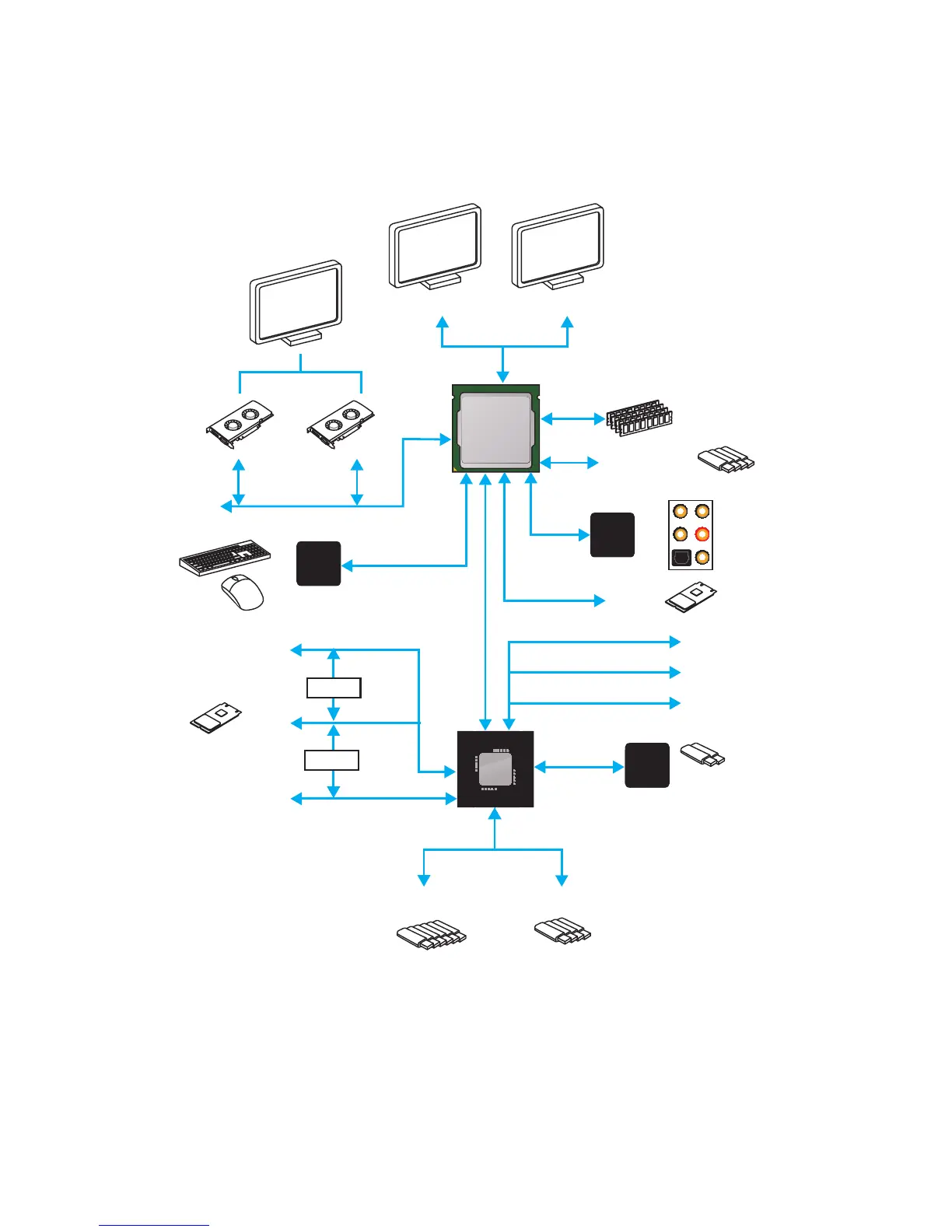

Block Diagram
Block Diagram
2 x USB 3.1 Gen2
2 Channel DDR4 Memory
4 x USB 3.1 Gen1
1 x M.2
6 x USB 2.0
PCI Express Bus
PS/2 Mouse / Keyboard
Audio Jacks
PCIe
CHIPSET
CPU
NV6795
Super I/O
Realtek
ALC1220
ASMEDIA
ASM2142
PCI Express Bus
HDMI DVI-D
SwitchSwitch
SwitchSwitch
PCIe x1 slot
PCIe x1 slot
6 x SATA 6Gb/s
PCIe x16 slot
PCIe x1 slot
4 x USB 3.1 Gen1
1 x M.2
