MSI X370 GAMING PRO CARBON User Manual

40

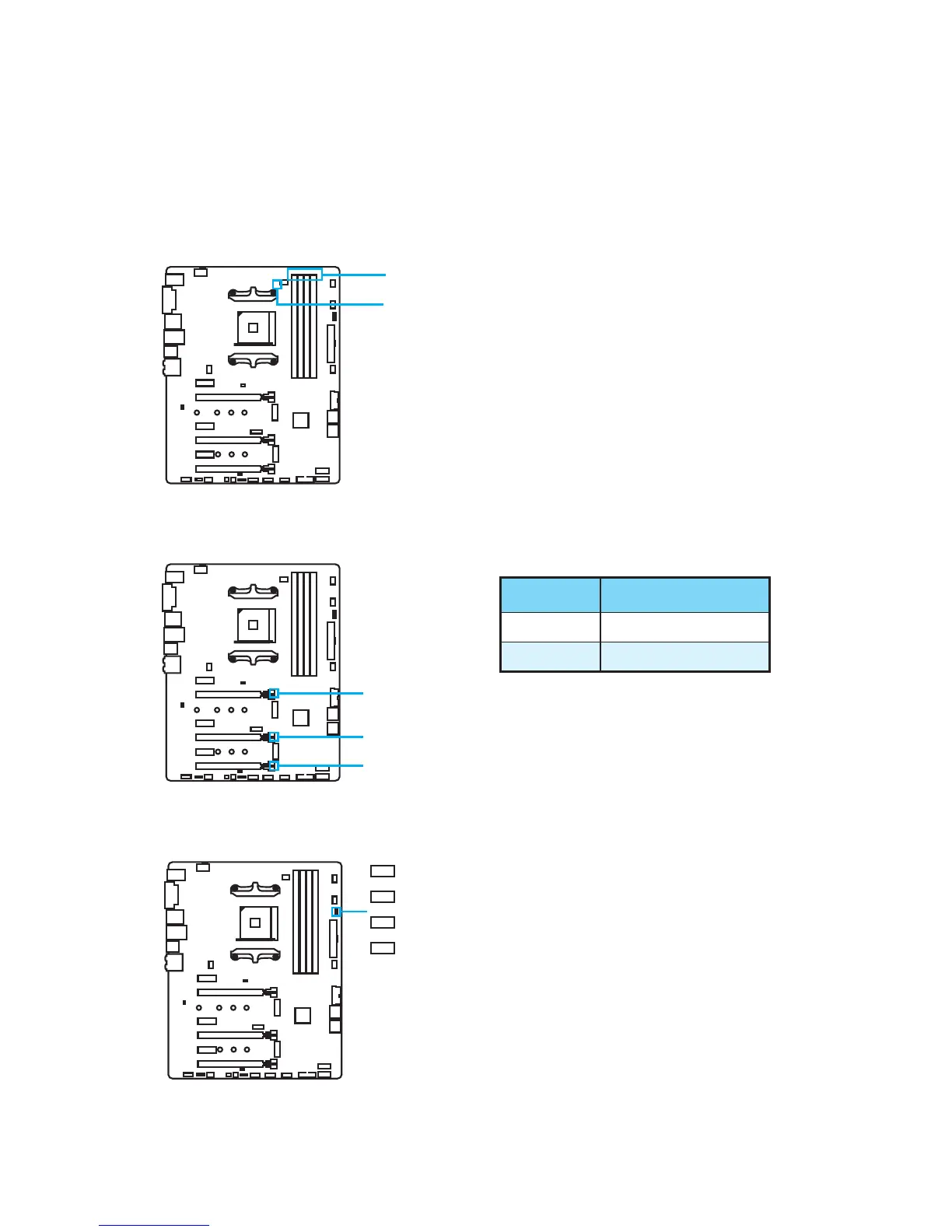

Onboard LEDs
Onboard LEDs
PCI_E2 LED
PCI_E4 LED
PCI_E6 LED
DIMM LEDs
These LEDs indicate the memory modules are installed.
GPU LED
This LED indicates the CPU’s iGPU is not detected and you need to install a graphic
card.
PCIe x16 slot LEDs
These LEDs indicate the PCIe x16 slots status.
LED Color PCIe slot status
Red x16 mode
White x8, x4, x1 mode
GPU LED
DIMM LEDs
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.

MSI X370 GAMING PRO CARBON Specifications

General

Form Factor	atx
Chipset	amd x370
Processor Socket	socket am4
Processor Compatibility	amd athlon
Maximum Memory	64 gigabytes
Power Connector	24-pin main power connector, 8-pin atx12v connector
PCI Slots	6
PCI Bus Slots	6
Memory Slots	4

Weight and Dimensions

Width	12 inches
Net Weight	64 ounces
