MSI X370 GAMING PRO CARBON User Manual

37

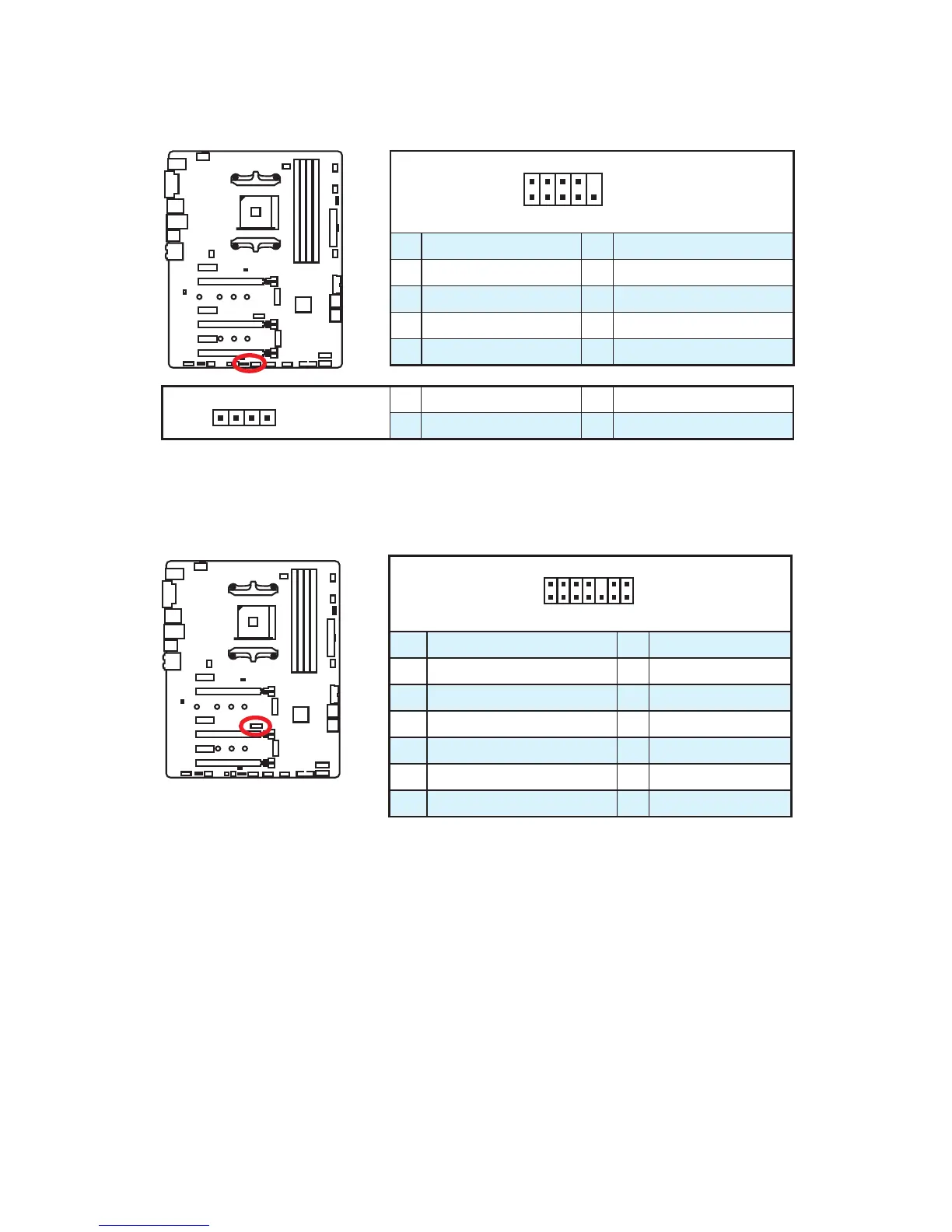

Overview of Components
1
2 14
13
1 LPC Clock 2 3V Standby power
3 LPC Reset 4 3.3V Power
5 LPC address & data pin0 6 Serial IRQ
7 LPC address & data pin1 8 5V Power
9 LPC address & data pin2 10 No Pin
11 LPC address & data pin3 12 Ground
13 LPC Frame 14 Ground
JTPM1: TPM Module Connector
This connector is for TPM (Trusted Platform Module). Please refer to the TPM security
platform manual for more details and usages.
JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +

MSI X370 GAMING PRO CARBON Specifications

General

Form Factor	atx
Chipset	amd x370
Processor Socket	socket am4
Processor Compatibility	amd athlon
Maximum Memory	64 gigabytes
Power Connector	24-pin main power connector, 8-pin atx12v connector
PCI Slots	6
PCI Bus Slots	6
Memory Slots	4

Weight and Dimensions

Width	12 inches
Net Weight	64 ounces
