MSI X370 GAMING PRO CARBON User Manual

20

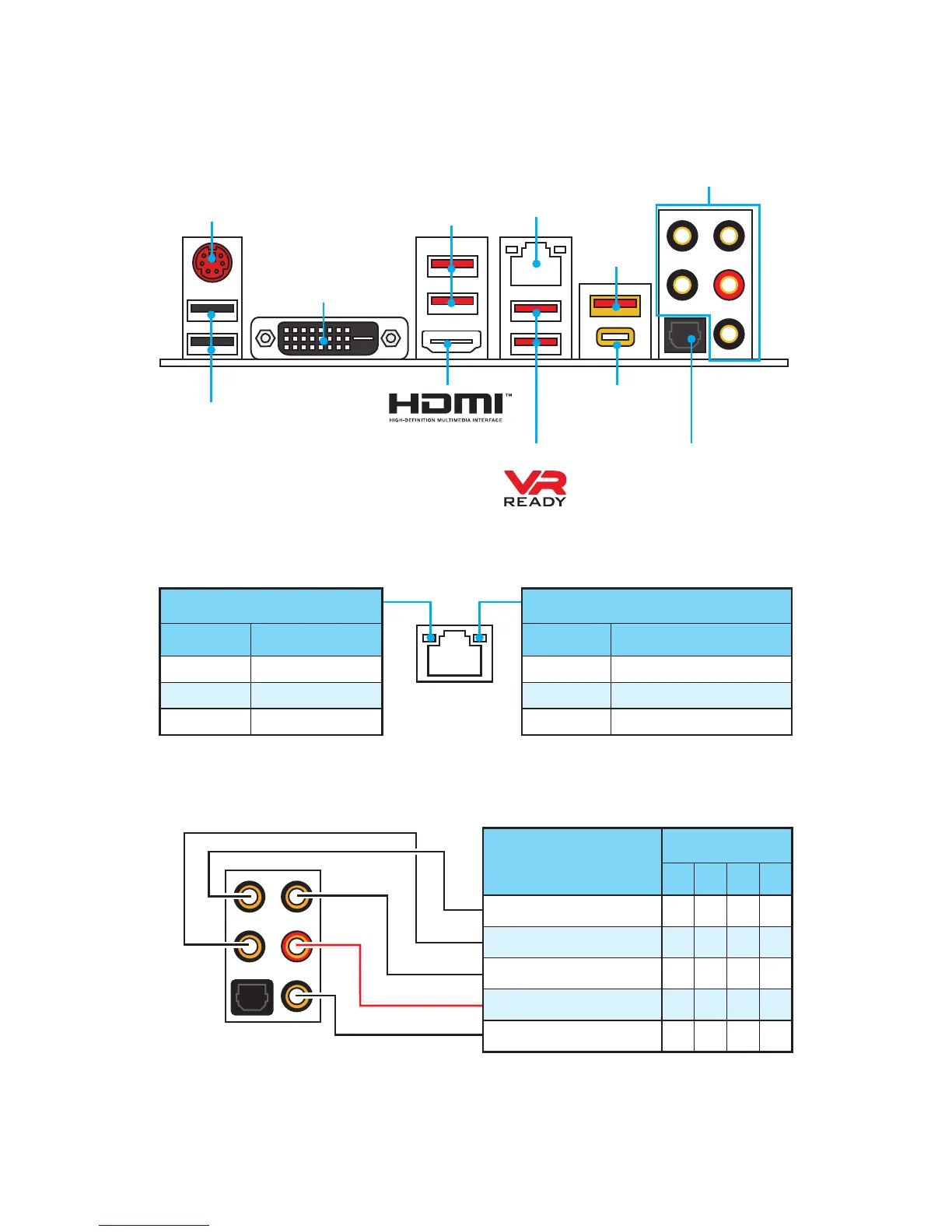

Rear I/O Panel
USB 3.1 Gen2
Type-C
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out ● ●
Rear Speaker Out ● ● ●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)
Rear I/O Panel
PS/2 Combo
LAN
USB 2.0
Audio Ports
Optical S/PDIF-Out
DVI-D
USB 3.1 Gen1
USB 3.1 Gen1
USB 3.1
Gen2
Type-A

MSI X370 GAMING PRO CARBON Specifications

General

Form Factor	atx
Chipset	amd x370
Processor Socket	socket am4
Processor Compatibility	amd athlon
Maximum Memory	64 gigabytes
Power Connector	24-pin main power connector, 8-pin atx12v connector
PCI Slots	6
PCI Bus Slots	6
Memory Slots	4

Weight and Dimensions

Width	12 inches
Net Weight	64 ounces
