38
Overview of Components

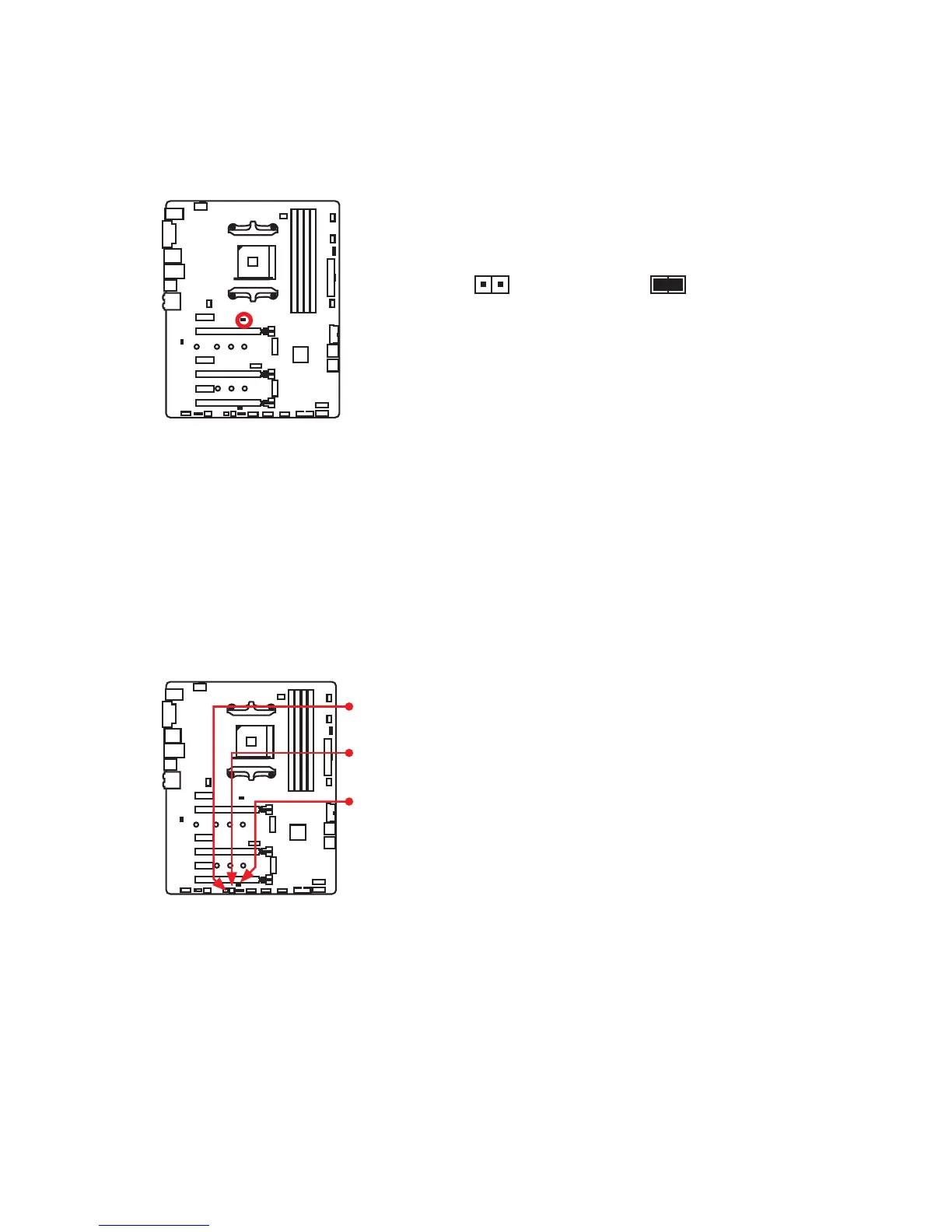

JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration data. If you want to clear the system
configuration, set the jumpers to clear the CMOS memory.
Keep Data
(default)
Clear CMOS/
Reset BIOS
Resetting BIOS to default values
1. Power off the computer and unplug the power cord.
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and Power on the computer.
LED light effect demonstration components
These components are used by retailers to demonstrate onboard LED light effects.
JPWRLED1 - LED power input
DEMOLED1 - Change LED light effects
JSEL1 - Short: press DEMOLED1 will change color
Open: press DEMOLED1 will change effects
