MSI Z170A SLI PLUS User Manual

8

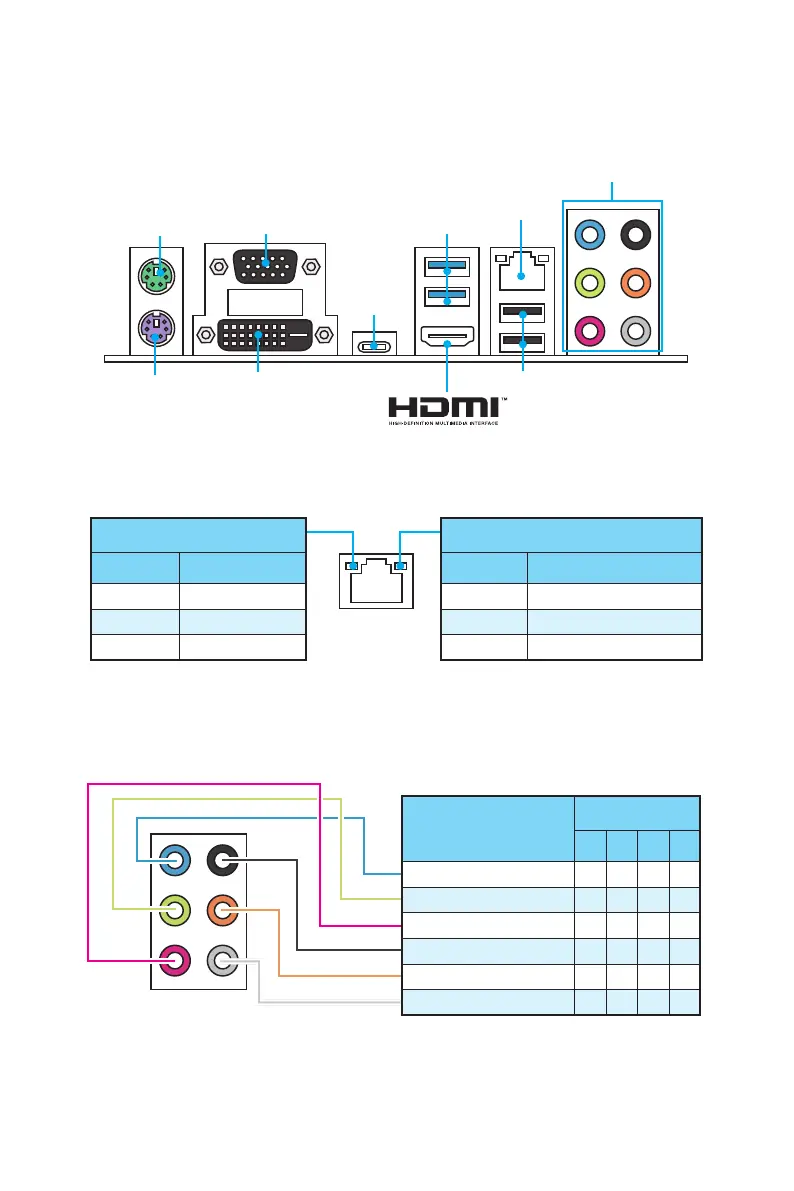

Rear I/O Panel
Rear I/O Panel
PS/2 Mouse
LAN
Audio Ports
VGA
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
USB 3.1 Gen 1
DVI-D
USB 2.0
Audio Ports
Channel
2 4 6 8
Line In
Line-Out/ Front Speak Out ● ● ● ●
Mic In
Rear Speaker Out ● ● ●
Center/ Subwoofer Out ● ●
Side Speaker Out ●
(●: connected, Blank: empty)
USB 3.1
Gen 2
Type-C
PS/2 Keyboard

MSI Z170A SLI PLUS Specifications

General

Chipset	Intel Z170
CPU Socket	LGA 1151
Memory Slots	4 x DDR4
Maximum Memory	64 GB
Form Factor	ATX
Storage Interface	6 x SATA 6Gb/s, 1 x M.2
LAN	Intel I219-V Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC892
Memory Speed	DDR4 2133 MHz
Multi-GPU Support	NVIDIA 2-Way SLI, AMD 3-Way CrossFireX
