MSI Z170A SLI PLUS User Manual

14

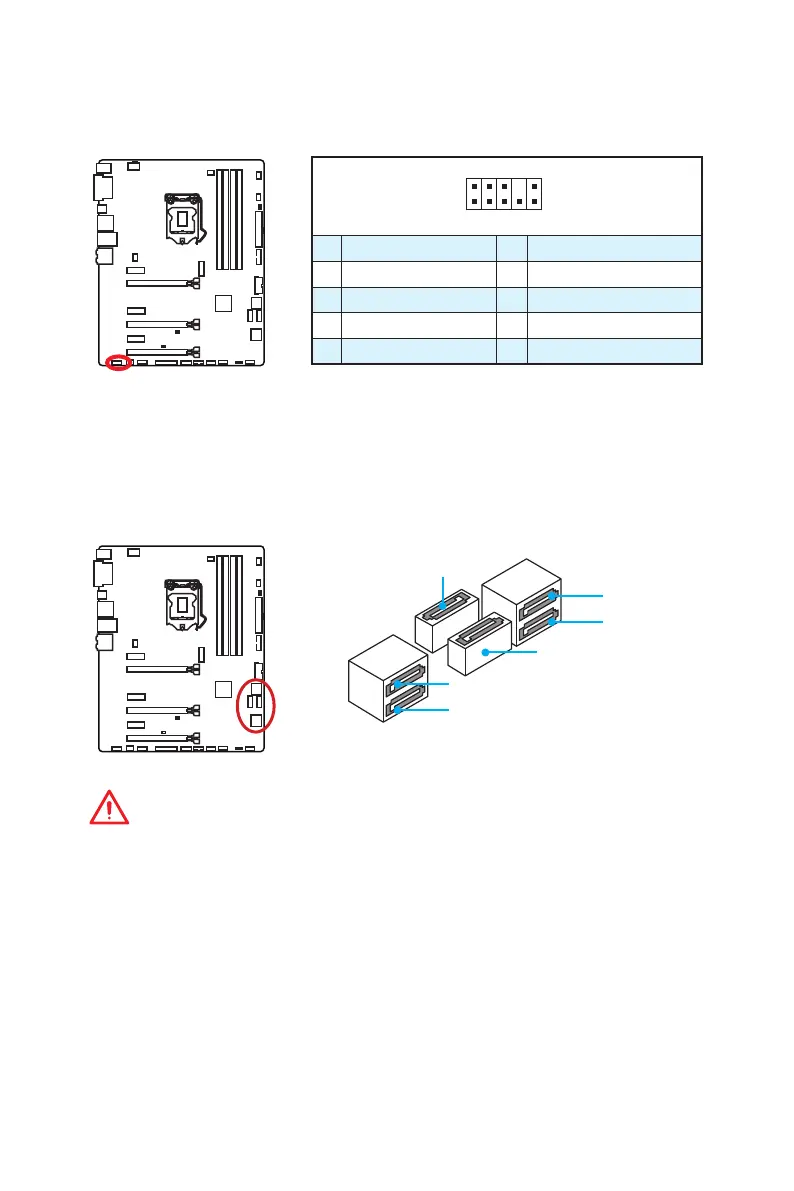

Overview of Components
SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to
one SATA device.
SATA1
SATA2
SATA3
SATA5
SATA6
SATA4
Important
● Please do not fold the SATA cable at a 90-degree angle. Data loss may result
during transmission otherwise.
● SATA cable has identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
JAUD1: Front Audio Connector
This connector allows you to connect audio jacks on the front panel.
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection

MSI Z170A SLI PLUS Specifications

General

Chipset	Intel Z170
CPU Socket	LGA 1151
Memory Slots	4 x DDR4
Maximum Memory	64 GB
Form Factor	ATX
Storage Interface	6 x SATA 6Gb/s, 1 x M.2
LAN	Intel I219-V Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC892
Memory Speed	DDR4 2133 MHz
Multi-GPU Support	NVIDIA 2-Way SLI, AMD 3-Way CrossFireX
