MSI Z170A SLI PLUS User Manual

142 pages

To Next Page

To Previous Page

Overview of Components

PCI_E1~6: PCIe Expansion Slots

PCI_E1: PCIe 3.0 x1 slot

PCI_E2: PCIe 3.0 x16 slot

PCI_E3: PCIe 3.0 x1 slot

PCI_E4: PCIe 3.0 x8 slot

PCI_E5: PCIe 3.0 x1 slot

PCI_E6: PCIe 3.0 x4 slot

x16

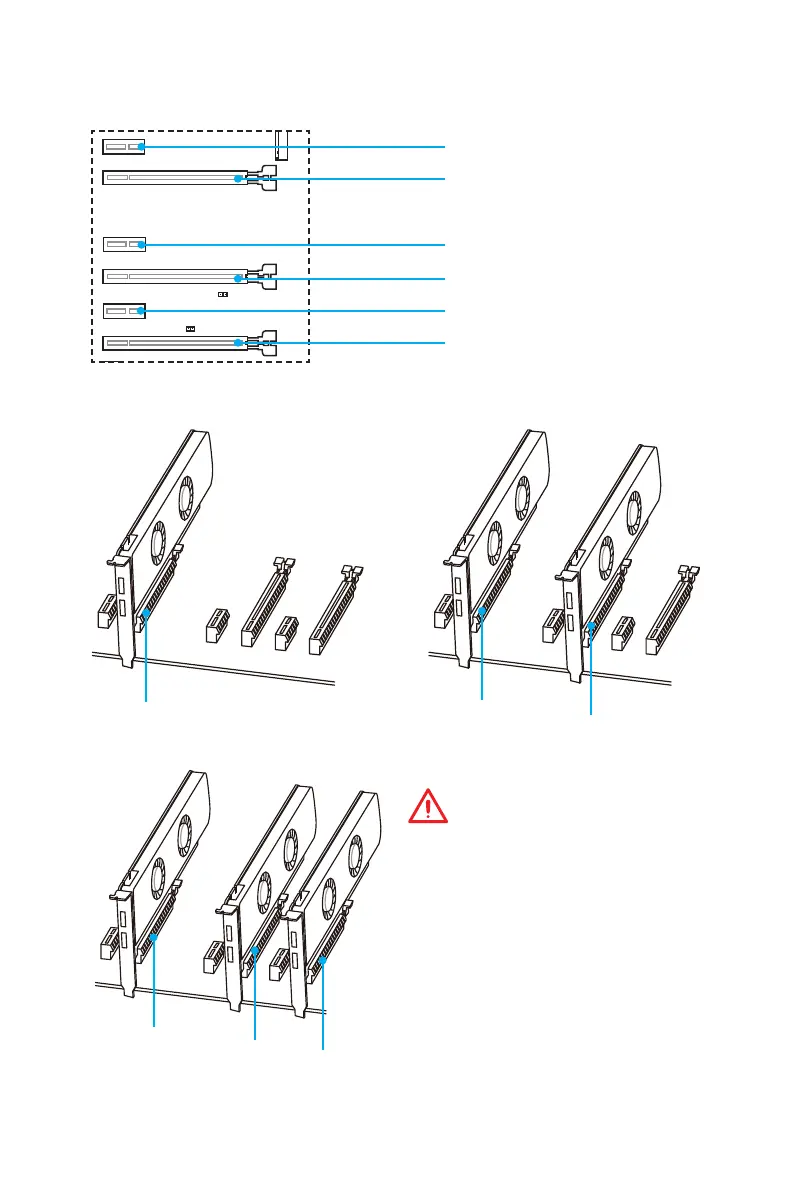

Multiple graphics cards installation recommendation

Important

●

For a single PCIe x16 expansion

card installation with optimum

performance, using the PCI_E2 slot is

recommended.

●

When adding or removing expansion

cards, always turn off the power supply

and unplug the power supply power

cable from the power outlet. Read the

expansion card’s documentation to

check for any necessary additional

hardware or software changes.

Other manuals for MSI Z170A SLI PLUS

Need help?

Do you have a question about the MSI Z170A SLI PLUS and is the answer not in the manual?

General

Chipset	Intel Z170
CPU Socket	LGA 1151
Memory Slots	4 x DDR4
Maximum Memory	64 GB
Form Factor	ATX
Storage Interface	6 x SATA 6Gb/s, 1 x M.2
LAN	Intel I219-V Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC892
Memory Speed	DDR4 2133 MHz
Multi-GPU Support	NVIDIA 2-Way SLI, AMD 3-Way CrossFireX
