MSI Z170A SLI PLUS User Manual

17

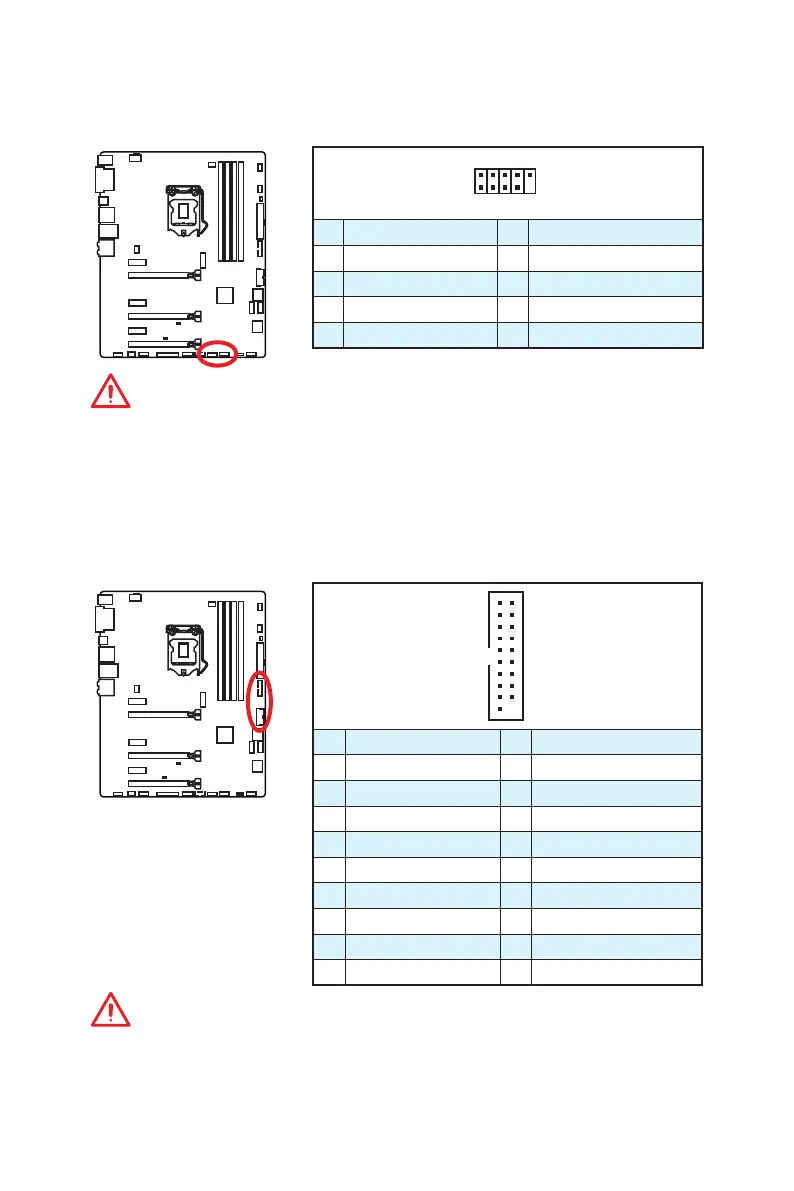

Overview of Components
JUSB3~4: USB 3.1 Gen1 Connectors
These connectors allow you to connect USB 3.1 Gen1 ports on the front panel.
1
10 11
20
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 Ground 20 No Pin
Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
JUSB1~2: USB 2.0 Connectors
These connectors allow you to connect USB 2.0 ports on the front panel.
1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
Important
● Note that the VCC and Ground pins must be connected correctly to avoid possible
damage.
● In order to recharge your iPad,iPhone and iPod through USB ports, please install
MSI
®
SUPER CHARGER utility.

MSI Z170A SLI PLUS Specifications

General

Chipset	Intel Z170
CPU Socket	LGA 1151
Memory Slots	4 x DDR4
Maximum Memory	64 GB
Form Factor	ATX
Storage Interface	6 x SATA 6Gb/s, 1 x M.2
LAN	Intel I219-V Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC892
Memory Speed	DDR4 2133 MHz
Multi-GPU Support	NVIDIA 2-Way SLI, AMD 3-Way CrossFireX
