MSI Z790 GAMING PRO WIFI User Manual

22

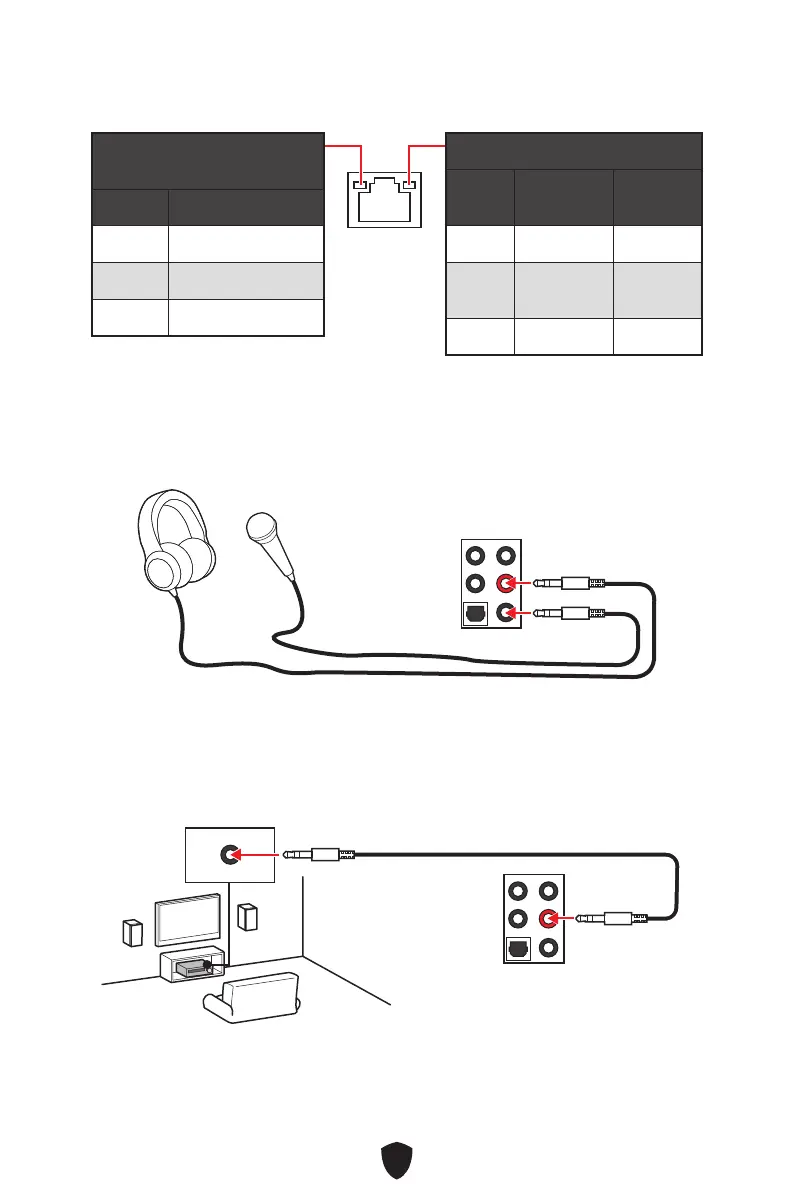

Tableau d’état LED du port LAN
LED indiquant la connexion et
l’activité
État Description
Éteint Pas de connexion
Jaune Connexion correcte
Clignote Activité en cours
LED indiquant la vitesse
État
Vitesse
LAN 2,5 Gb
Vitesse
LAN 1 Gb
Éteint 10 Mb/s 10 Mb/s
Vert
100 Mb/s /
1 Gb/s
100 Mb/s
Orange 2,5 Gb/s 1 Gb/s
Connexion des prises audio
Schéma de connexion des prises audio au casque et au microphone
Schéma de connexion de la prise audio au haut-parleur stéréo
AUDIO INPUT

MSI Z790 GAMING PRO WIFI Specifications

General

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Slots	4
Max Memory	128GB
Storage Interface	4x M.2, 6x SATA 6Gb/s
Form Factor	ATX
Network	Wi-Fi 6E, 2.5G LAN
Audio	Realtek ALC4080
RGB Support	Mystic Light
Memory Support	DDR5
USB Ports	1 x USB 3.2 Gen 2x2 Type-C port (rear) 6 x USB 3.2 Gen 2 Type-A ports (rear) 2 x USB 3.2 Gen 1 ports (rear) 1 x USB 3.2 Gen 2 Type-C port (front) 2 x USB 3.2 Gen 1 ports (front) 4 x USB 2.0 ports (front)
