MSI Z790 GAMING PRO WIFI User Manual

41

󳲜󶬖

󴳇󳠴
 󳘗󳲜󶬖󴨟󳲜󶬖󲝉󲁹󴡇󲑟󳵊
󱫮 
 󱱨󱯱󹩙
   

󳲜󶬖󸒏󶩆
󲀏󵒵󱚘
 󱥯󲁢󲁿  󱥯󲁢󲁿

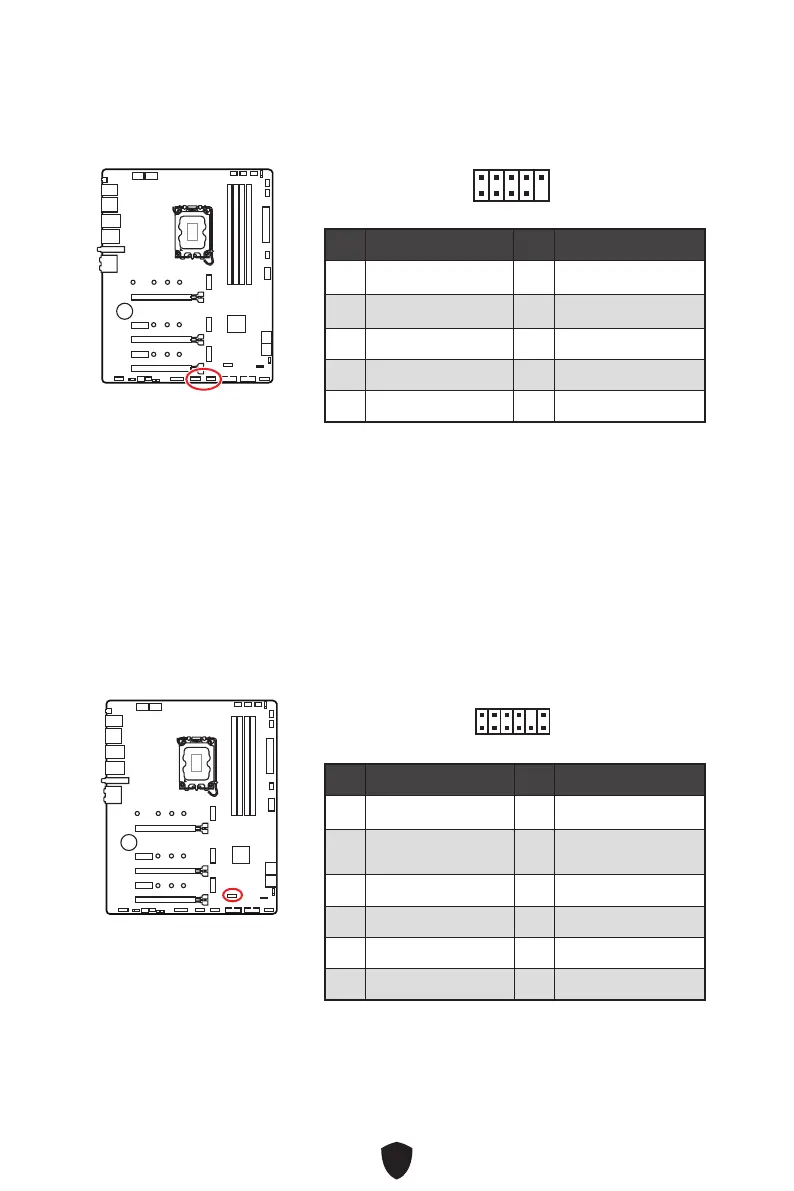

1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
1
2 10
9
 󱥯󲁢󲁿  󱥯󲁢󲁿
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out
(SPI Data)
4
Master Out Slave In
(SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
1
2 12
11

MSI Z790 GAMING PRO WIFI Specifications

General

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Slots	4
Max Memory	128GB
Storage Interface	4x M.2, 6x SATA 6Gb/s
Form Factor	ATX
Network	Wi-Fi 6E, 2.5G LAN
Audio	Realtek ALC4080
RGB Support	Mystic Light
Memory Support	DDR5
USB Ports	1 x USB 3.2 Gen 2x2 Type-C port (rear) 6 x USB 3.2 Gen 2 Type-A ports (rear) 2 x USB 3.2 Gen 1 ports (rear) 1 x USB 3.2 Gen 2 Type-C port (front) 2 x USB 3.2 Gen 1 ports (front) 4 x USB 2.0 ports (front)
