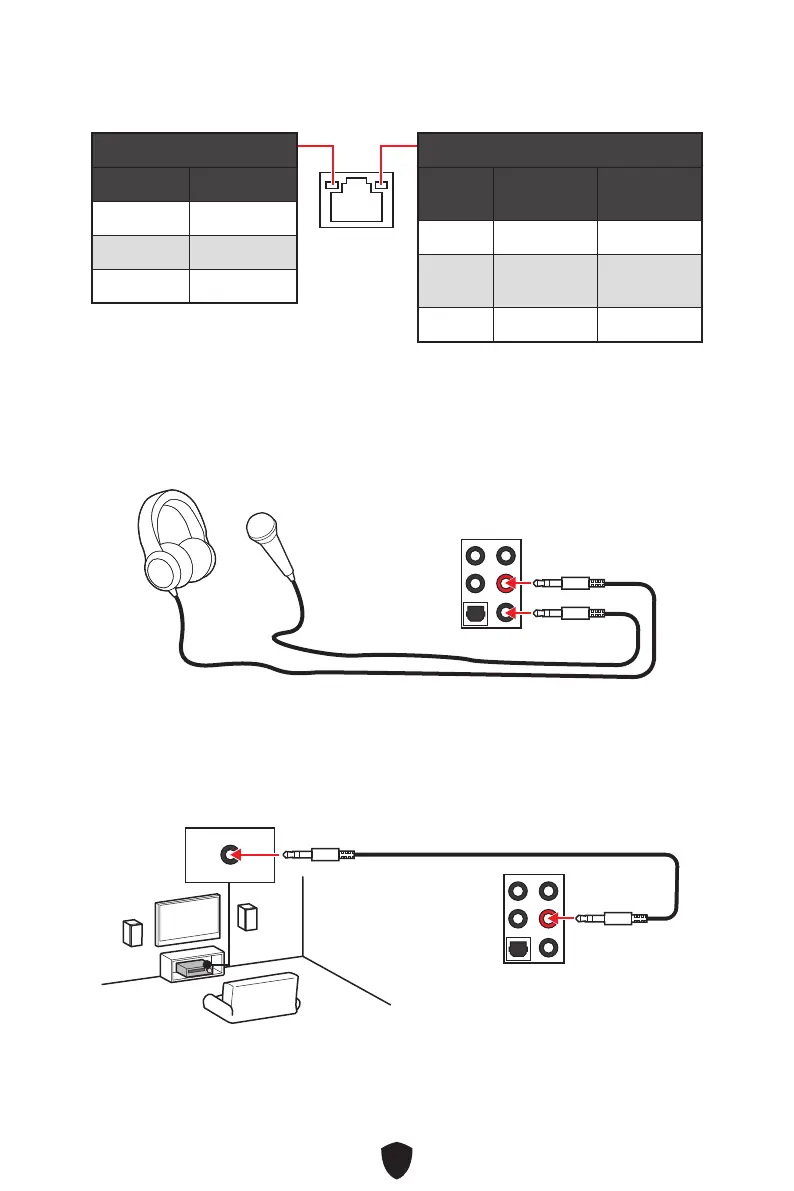

LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status
2.5Gb LAN
Speed
1Gb LAN
Speed
Off 10 Mbps 10 Mbps
Green
100 Mbps/
1 Gbps
100 Mbps
Orange 2.5 Gbps 1 Gbps
Audio Jacks Connection
Audio jacks to headphone and microphone diagram
Audio jacks to stereo speakers diagram
AUDIO INPUT
