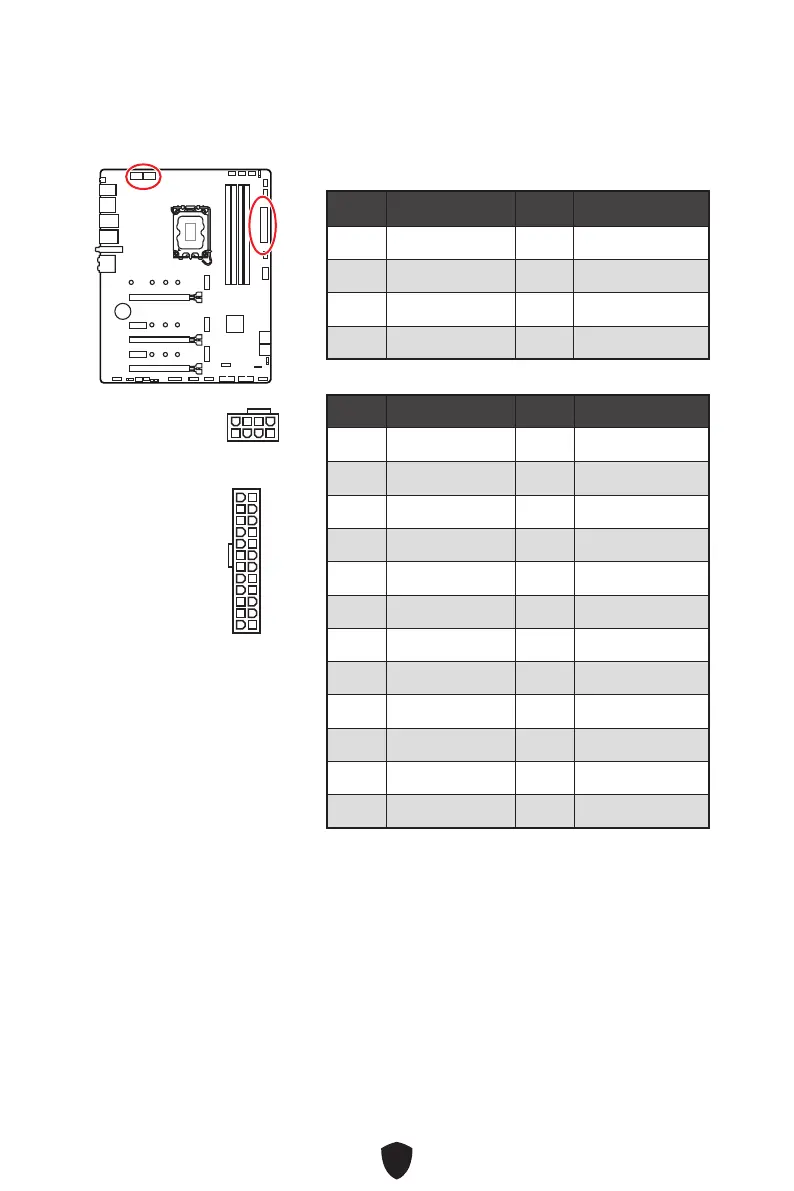

CPU_PWR1~2, ATX_PWR1 : Connecteurs d’alimentation

Ces connecteurs vous permettent de connecter une alimentation ATX.



Important

Assurez-vous que tous les câbles d’alimentation sont correctement connectés à une

alimentation ATX appropriée pour assurer un fonctionnement stable de la carte mère.

CPU_PWR1~2

Broche Nom de signal Broche Nom de signal

1 Ground 2 Ground

3 Ground 4 Ground

5 +12V 6 +12V

7 +12V 8 +12V

ATX_PWR1

Broche Nom de signal Broche Nom de signal

1 +3.3V 2 +3.3V

3 Ground 4 +5V

5 Ground 6 +5V

7 Ground 8 PWR OK

9 5VSB 10 +12V

11 +12V 12 +3.3V

13 +3.3V 14 -12V

15 Ground 16 PS-ON#

17 Ground 18 Ground

19 Ground 20 Res

21 +5V 22 +5V

23 +5V 24 Ground

4 1

CPU_PWR1~2

13 1

ATX_PWR1
