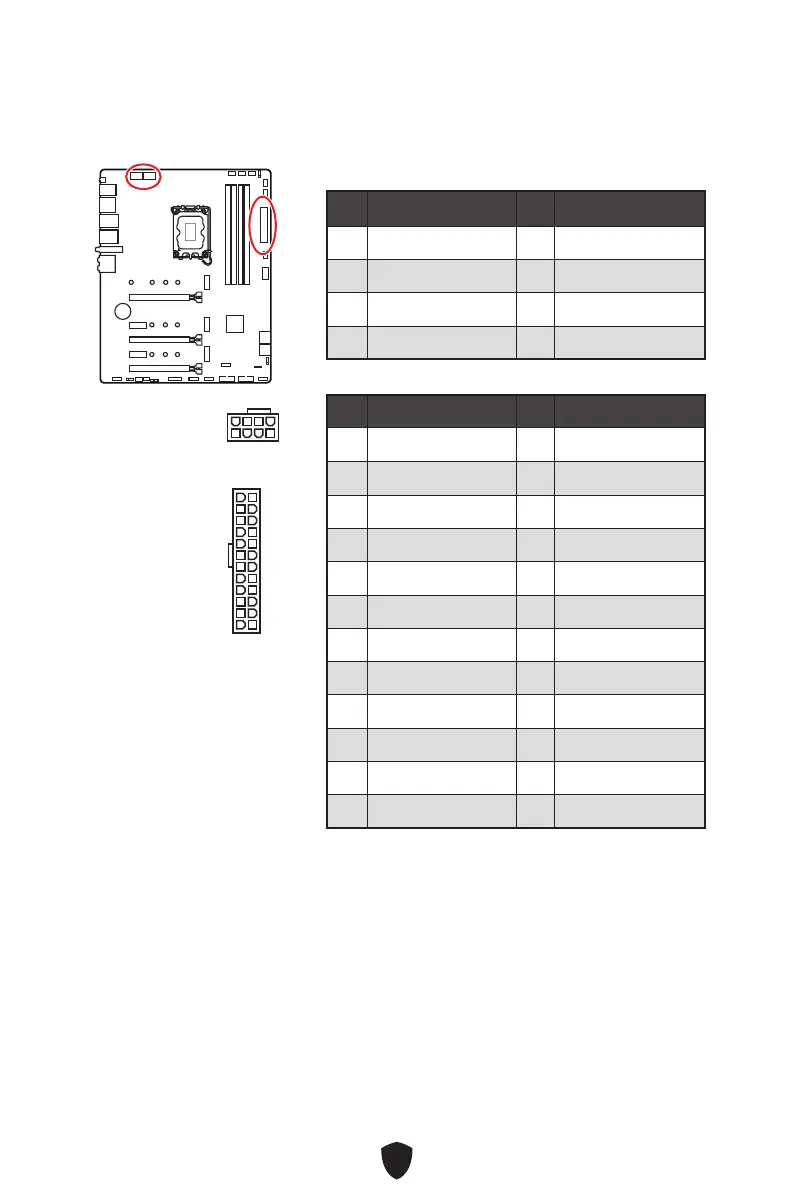

CPU_PWR1~2, ATX_PWR1: Stromanschlüsse

Mit diesen Anschlüssen verbinden Sie die ATX Stromstecker.



Wichtig

Stellen Sie sicher, dass alle Anschlüsse mit den richtigen Anschlüssen des Netzteils

verbunden sind, um einen stabilen Betrieb der Hauptplatine sicherzustellen.

CPU_PWR1~2

Pin Signalname Pin Signalname

1 Ground 2 Ground

3 Ground 4 Ground

5 +12V 6 +12V

7 +12V 8 +12V

ATX_PWR1

Pin Signalname Pin Signalname

1 +3,3V 2 +3,3V

3 Ground 4 +5V

5 Ground 6 +5V

7 Ground 8 PWR OK

9 5VSB 10 +12V

11 +12V 12 +3,3V

13 +3,3V 14 -12V

15 Ground 16 PS-ON#

17 Ground 18 Ground

19 Ground 20 Res

21 +5V 22 +5V

23 +5V 24 Ground

4 1

CPU_PWR1~2

13 1

ATX_PWR1

Questions and Answers:

Need help?

Do you have a question about the MSI Z790 GAMING PRO WIFI and is the answer not in the manual?

MSI Z790 GAMING PRO WIFI Specifications

General

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Slots	4
Max Memory	128GB
Storage Interface	4x M.2, 6x SATA 6Gb/s
Form Factor	ATX
Network	Wi-Fi 6E, 2.5G LAN
Audio	Realtek ALC4080
RGB Support	Mystic Light
Memory Support	DDR5
USB Ports	1 x USB 3.2 Gen 2x2 Type-C port (rear) 6 x USB 3.2 Gen 2 Type-A ports (rear) 2 x USB 3.2 Gen 1 ports (rear) 1 x USB 3.2 Gen 2 Type-C port (front) 2 x USB 3.2 Gen 1 ports (front) 4 x USB 2.0 ports (front)
